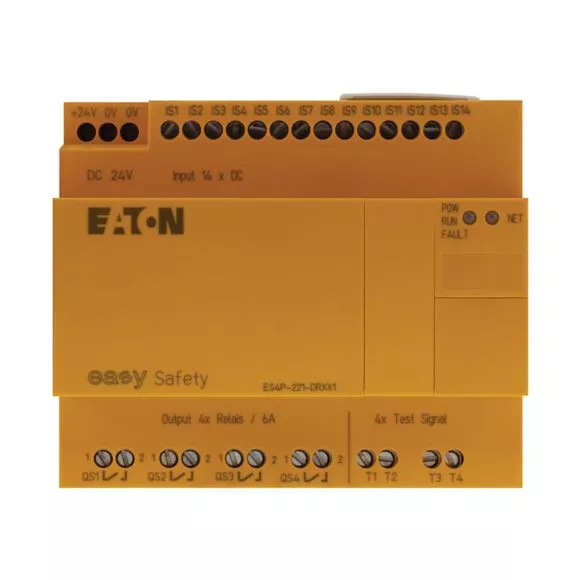

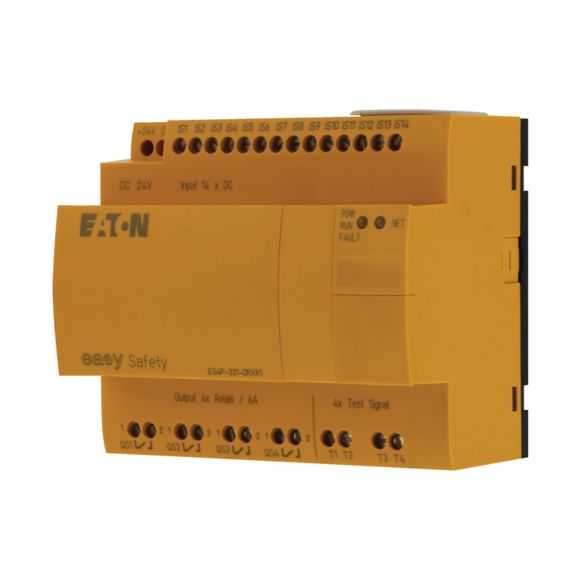

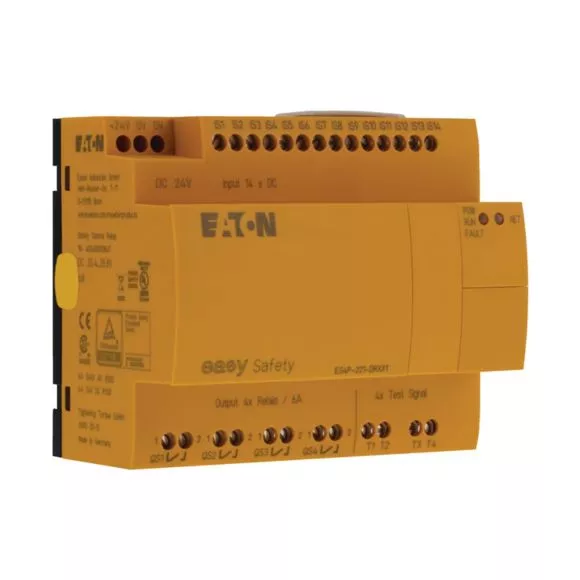

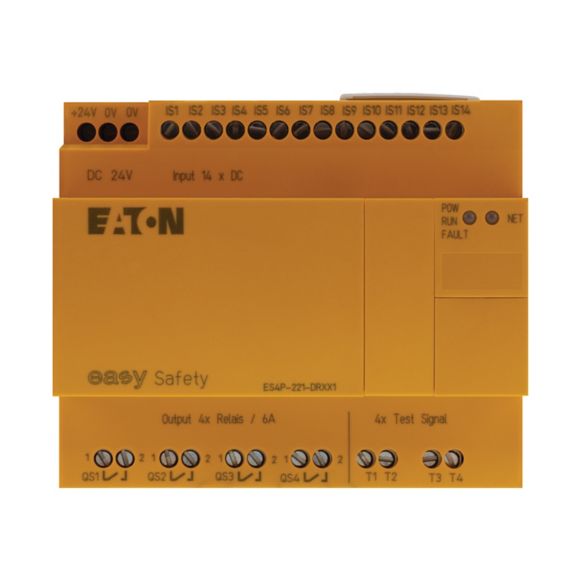

ES4P-221-DRXX1 easySafety bez wysw 14we 4wy przekaźnikowe
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 111018 |
| GTIN(EAN) | 4015081105281 |
| Price unit | piece |
| Catalog price | 7 868,31 zł (6 397,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozszerzalny przekaźnik sterujący bezpieczeństwa, znamionowe napięcie pracy 24VDC, 14 bezpiecznych wejść cyfrowych, 1 bezpieczne oraz redundantne wyjście przekaźnika 6A, 4 wyjść tranzystorowych 0.5A, 4 wyjść sygnału testowego, nadaje się do kat. 4 według EN 954-1 / PL e według EN ISO 13849-1 / SILCL3 według IEC 62061 / SIL3 według IEC61508, stopień ochrony IP20, brak klawiatury, brak wyświetlacza LCD, funkcja zabezpieczająca i standardowa zintegrowana w jedym urządzeniu, magistrala easyNet on board, easyLink, możliwość rozszerzenia poprzez cyfrowe wejścia i wyjścia, możliwość rozszerzenia do systemów magistrali AS-Interface, PROFIBUS-DP, CANopen, deviceNet, indywidualny opis przekaźnika programowalnego za pomocą oprogramowania Labeleditor
Additional features:
| Information | Value |
|---|---|
| Net weight: | 363 g |
| Country of origin | Niemcy |
| ETIM class: | Logic module |
| Width: | 108 mm |
| Height: | 90 mm |
| Depth: | 72 mm |
| Expandable: | yes |
| Switching current: | 8 A |
| With time switch clock: | yes |
| Power consumption: | 6 W |
| With display: | no |
| Suitable for safety functions: | yes |
| Number of digital inputs: | 14 |
| Number of digital outputs: | 4 |
| Number of analogue inputs: | 0 |
| Number of analogue outputs: | 4 |
| Voltage type (supply voltage): | DC |
| Supporting protocol for LON: | no |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 3 |
| With optical interface: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | yes |
| Redundancy: | yes |
| With relay output: | yes |
| Rail mounting possible: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Wall mounting/direct mounting: | yes |
| Expansion device: | no |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Basic device: | yes |
| IO link master: | no |
| Performance level according to EN ISO 13849-1: | Level e |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 20.4 - 28.8 V |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| SIL according to IEC 61508: | 3 |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
