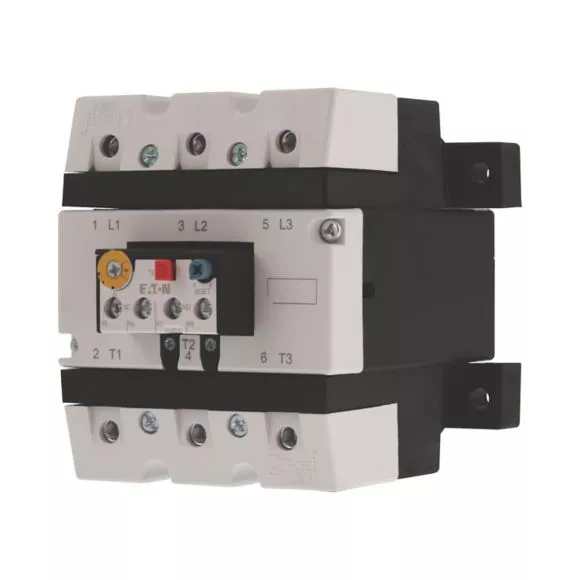

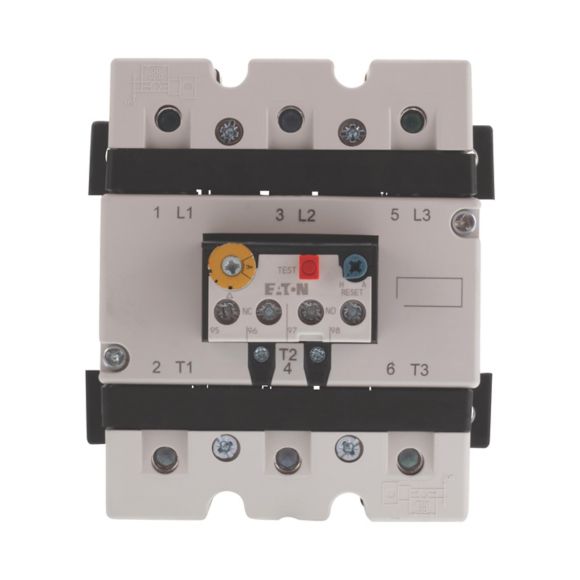

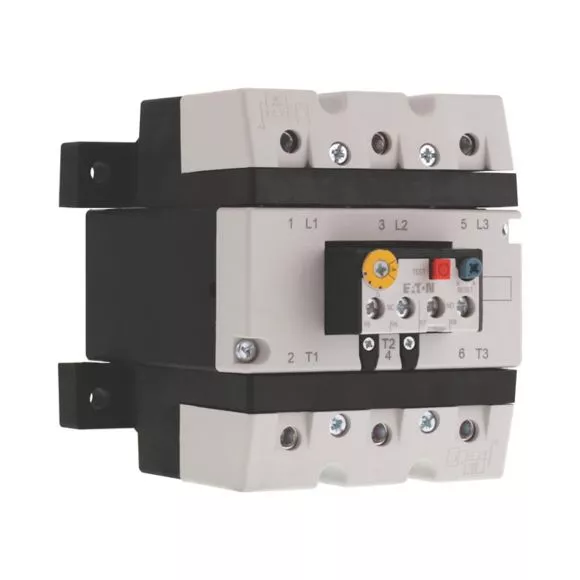

ZB150-175/KK Przekaźnik przeciąż. dla DILM80...170
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 107317 |
GTIN(EAN) | 4015081070800 |
Price unit | piece |
Catalog price | 2 241,06 zł (1 822,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ochronny przekaźnik silnikowy do indywidualnego posadowienia, wrażliwość na brak fazy zgodnie z IEC/EN 60947, VDE0660 T.102, klasa wyzwolenia 10A, montaż śrubowy, ui 1000V, stopień ochrony IP00, zabezpieczenie przed dotknięciem palcem zgodne z EN50274 przy pionowym uruchamianiu od przodu, urządzenia na wszystkich rynkach, dopuszczenie do użytku na statkach
Additional features:
Information | Value |
---|---|
Net weight: | 1,467 kg |
ETIM class: | Thermal overload relay |
Mounting method: | Separate positioning |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Number of auxiliary contacts as change-over contact: | 0 |
Release class: | CLASS 10 A |
Type of electrical connection of main circuit: | Screw connection |
Max. rated operation voltage Ue: | 1000 V |
Adjustable current range: | 145 - 175 A |
Reset function input: | no |
Reset function automatic: | yes |
Reset function push-button: | yes |
