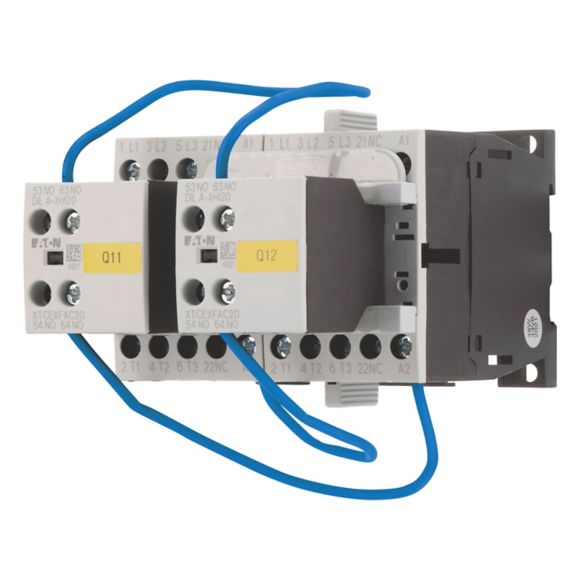

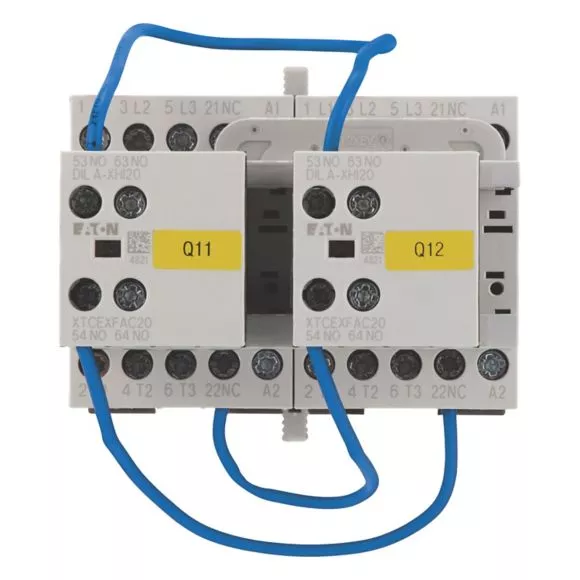

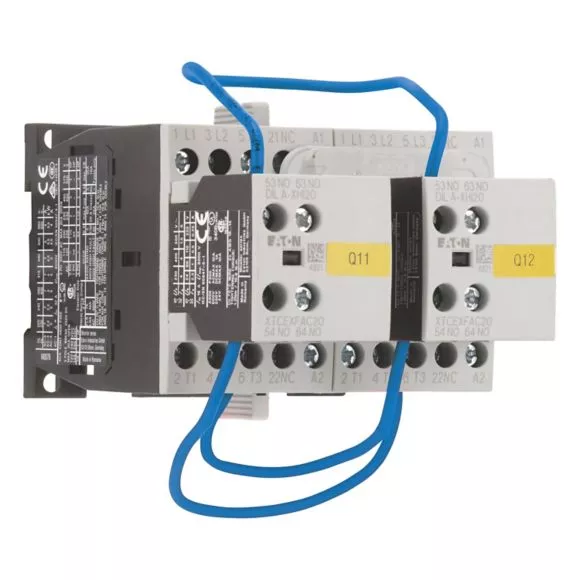

DIULM7/21(24VDC) Zestaw nawrotny 3kW [AC-3] 400V
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 107021 |
GTIN(EAN) | 4015081067893 |
Price unit | piece |
Catalog price | 956,08 zł (777,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kombinacja styczników nawrotnych z kompletnym okablowaniem
Additional features:
Information | Value |
---|---|
Net weight: | 710 g |
ETIM class: | Combination of contactors |
Function: | Reversing contactor |
Rated operation power at AC-3, 400 V: | 3 kW |
Number of normally open contacts as main contact: | 6 |
Number of normally closed contacts as main contact: | 0 |
Rated operation current Ie at AC-3, 400 V: | 7 A |
Rated operation current Ie at AC-1, 400 V: | 7 A |
Rail mounting possible: | no |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Degree of protection (IP): | IP20 |
Type of electrical connection of main circuit: | Screw connection |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Voltage type for actuating: | DC |
Degree of protection (NEMA): | Other |
Rated operation power NEMA: | 2.2 kW |
