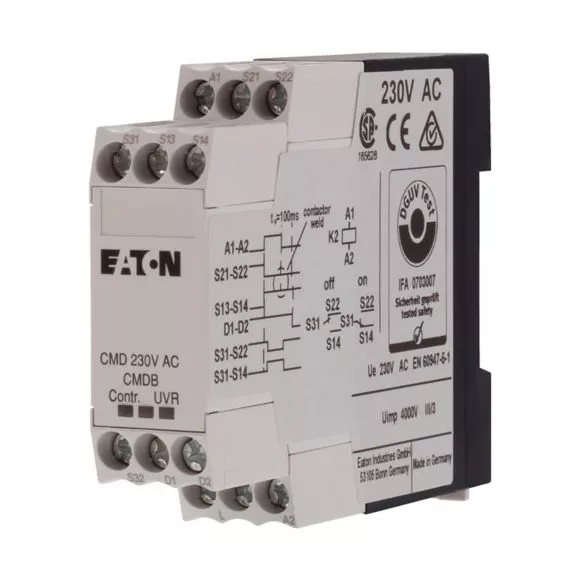

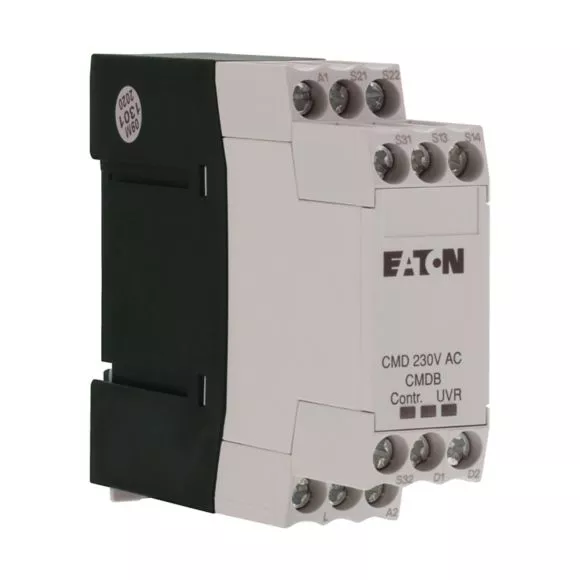

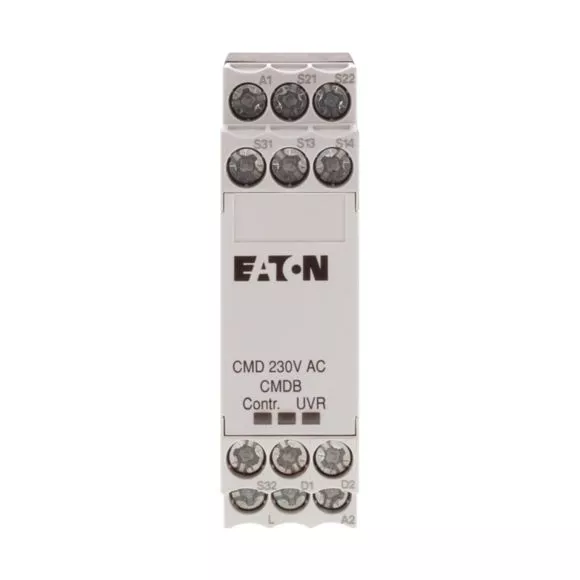

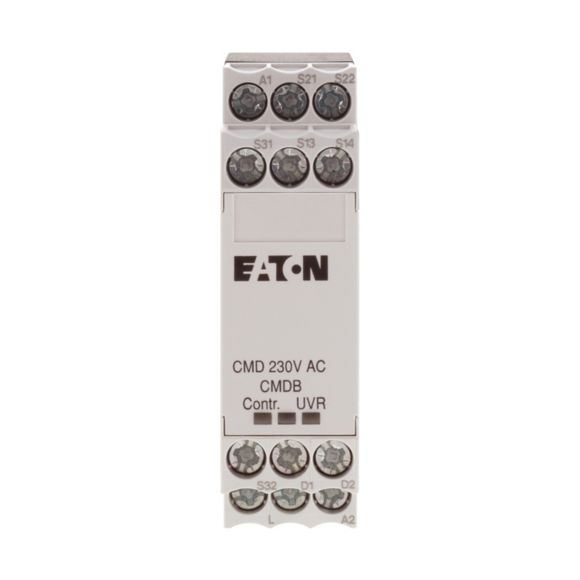

CMD(220-240VAC) przekaźnik kontrol. stycz (220-240VAC)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 106172 |
| GTIN(EAN) | 4015081059423 |
| Price unit | piece |
| Catalog price | 2 225,07 zł (1 809,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik monitorowania styczników do bezpiecznego zatrzymywania awaryjnego o maksymalnym poziomie sprawności e. Niezawodne monitorowanie stycznika mocy. Ogranicza konieczność używania okablowania prądu głównego nie trzeba wykonywać redundancyjnego montażu ochronnego.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 138 g |
| ETIM class: | Contactor relay |
| Mounting method: | DIN rail |
| Interface: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Rated operation current Ie, 400 V: | 0 A |
| Suitable for manual operation: | no |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated control supply voltage AC 50 Hz: | 220 - 240 V |
| Rated control supply voltage AC 60 Hz: | 220 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| With LED indication: | yes |
| Connection type auxiliary circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Voltage type for actuating: | AC |
