SDAINLM260(230V50HZ,240V60HZ) Zestaw gwiazda-trójkąt I=260A 132kW
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 101031 |
| GTIN(EAN) | 4015081009282 |
| Price unit | piece |
| Catalog price | 14 898,99 zł (12 113,00 zł + 23% VAT) |
| Sale price | from 2 909,09 zł / szt. (2 365,11 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

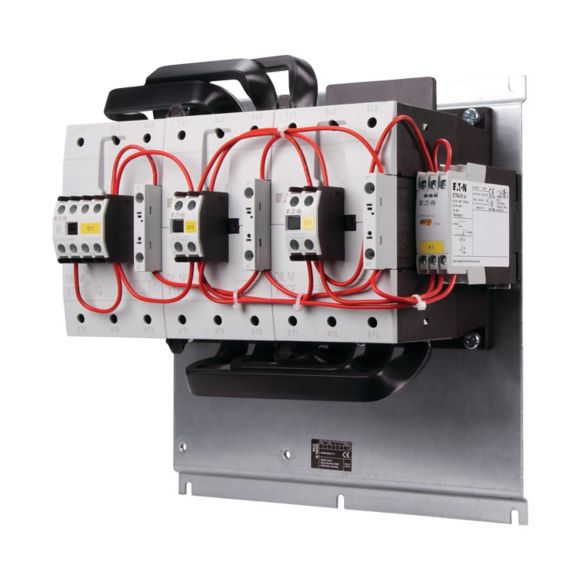

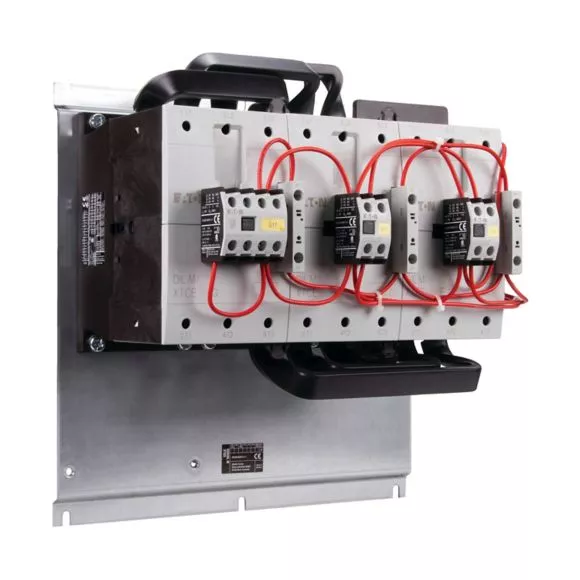

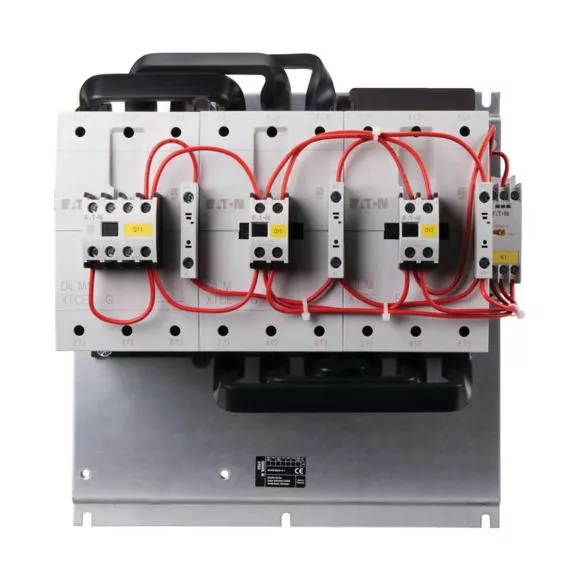

Zestaw gwiazda-trójkąt z kompletnym okablowaniem
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11,54 kg |
| Country of origin | Rumunia |
| ETIM class: | Combination of contactors |
| Width: | 308 mm |
| Function: | Star-delta contactor |
| Height: | 314 mm |
| Depth: | 183 mm |
| Rated operation power at AC-3, 400 V: | 132 kW |
| Number of normally open contacts as main contact: | 9 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Rated operation current Ie at AC-3, 400 V: | 260 A |
| Rated operation current Ie at AC-1, 400 V: | 260 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rail mounting possible: | no |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type (operating voltage): | AC |
| Degree of protection (IP): | IP00 |
| Type of electrical connection of main circuit: | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Operating voltage AC 50 Hz: | 230 - 690 V |
| Operating voltage AC 60 Hz: | 230 - 690 V |
| Operating voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Degree of protection (NEMA): | Other |
| Rated operation power NEMA: | 0 kW |
