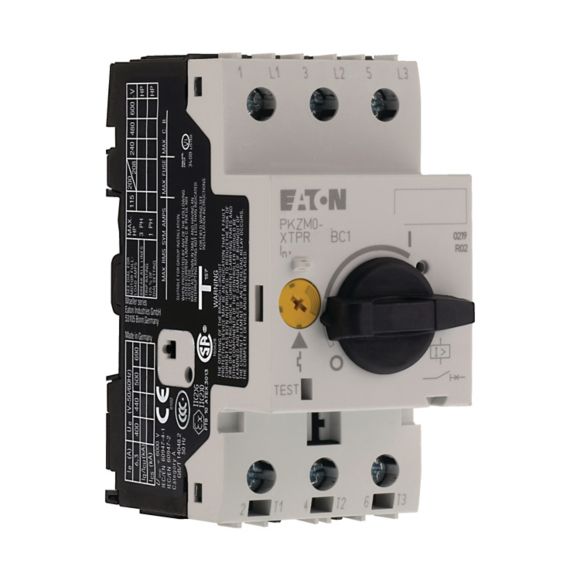

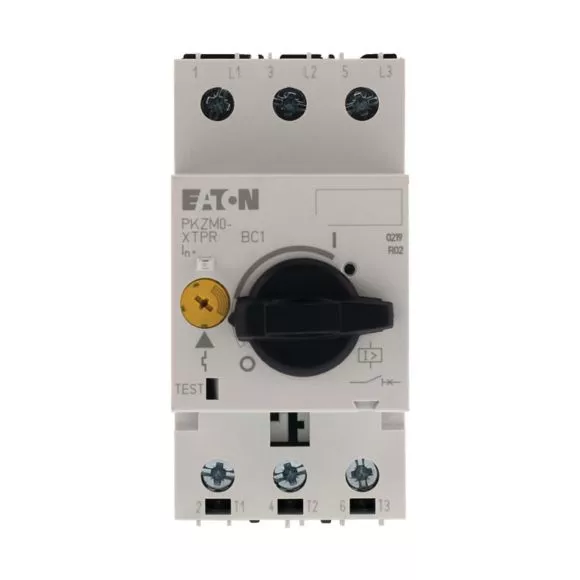

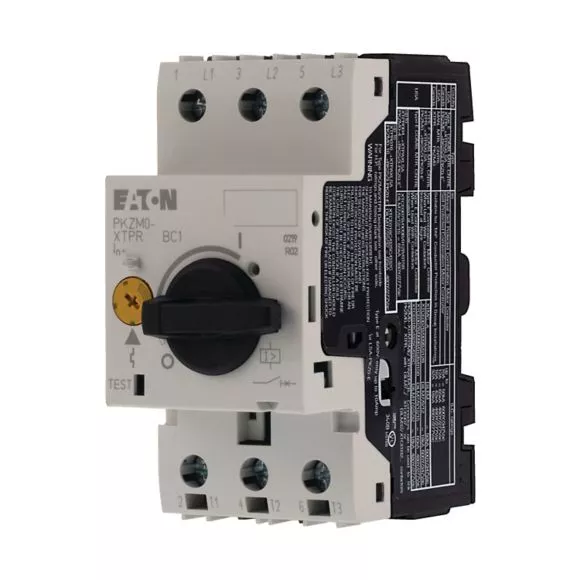

PKZM0-0,16-T wyłącznik do ochr. Trafo. 0,16A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 088907 |
| GTIN(EAN) | 4015080889076 |
| Price unit | piece |
| Catalog price | 489,54 zł (398,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik ochronny transformatora z normą IEC/EN60947, 3-biegunowe wielkość konstrukcyjna PKZM 0, z regulowanym wyzwalaczem przeciążeniowym i zwarciowym bez opóźnienia, czuły na brak fazy, mocowanie na śruby i zaciski, Z zaciskami ze śrubą, wymiary montażowe zatyczki 45mm, znamionowe napięcie pracy Ue 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: łącznik pomocniczy, wyzwalacz napięcia
Additional features:
| Information | Value |
|---|---|
| Net weight: | 246 g |
| Country of origin | Niemcy |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 0.16 A |
| Rated voltage: | 690 - 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 150 kA |
| Overload release current setting: | 0.1 - 0.16 A |
| Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
| Adjustment range undelayed short-circuit release: | 2.4 - 2.4 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| DIN rail (top hat rail) mounting optional: | yes |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Other |
| Type of control element: | Turn button |
| Complete device with protection unit: | no |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| Degree of protection (IP): | IP20 |
| Power loss: | 5.39 W |
