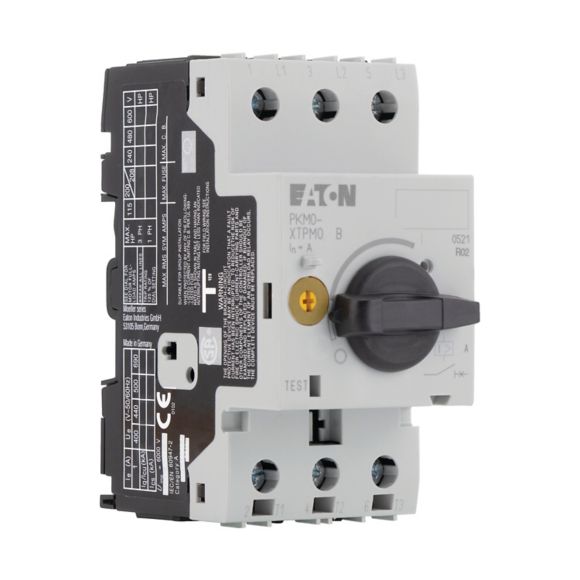

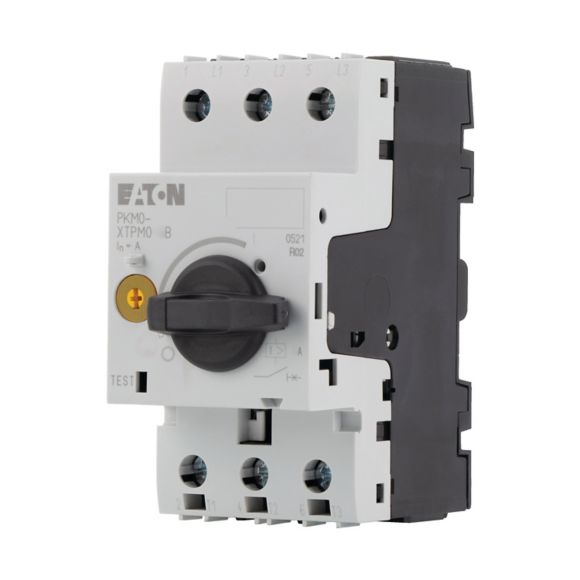

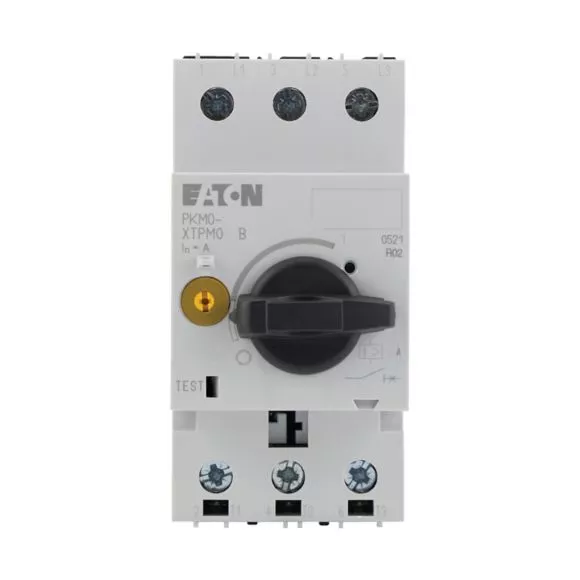

PKM0-0,4 Wyłącznik silnikowy do ukł rozr I=0,4A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 072722 |
GTIN(EAN) | 4015080727224 |
Price unit | piece |
Catalog price | 403,44 zł (328,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy zgodny z IEC/EN60947, 3-biegunowe wielkość konstrukcyjna PKM0, z wyzwalaczem zwarciowym bez opóźnienia, mocowanie na śruby i zaciski, Z zaciskami ze śrubą, wymiary montażowe zatyczki 45mm, znamionowe napięcie pracy Ue 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: łącznik pomocniczy, wyzwalacz napięcia, napęd sterujący, płyta wczepiana
Additional features:
Information | Value |
---|---|
Net weight: | 246 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 0 - 0 A |
Adjustment range undelayed short-circuit release: | 6.2 - 6.2 A |
With thermal overload protection: | no |
Phase failure sensitive: | no |
Switch off technique: | Magnetic |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 0.4 A |
Rated operation power at AC-3, 230 V: | 0.06 kW |
Rated operation power at AC-3, 400 V: | 0.09 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
Degree of protection (IP): | IP20 |
Height: | 93 mm |
Width: | 45 mm |
Depth: | 76 mm |
