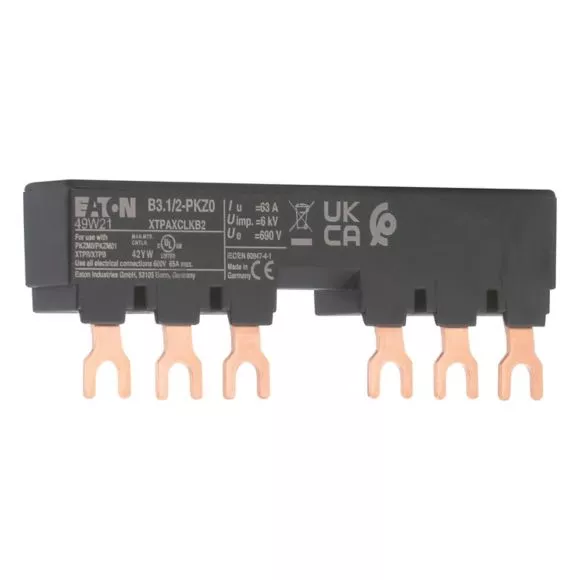

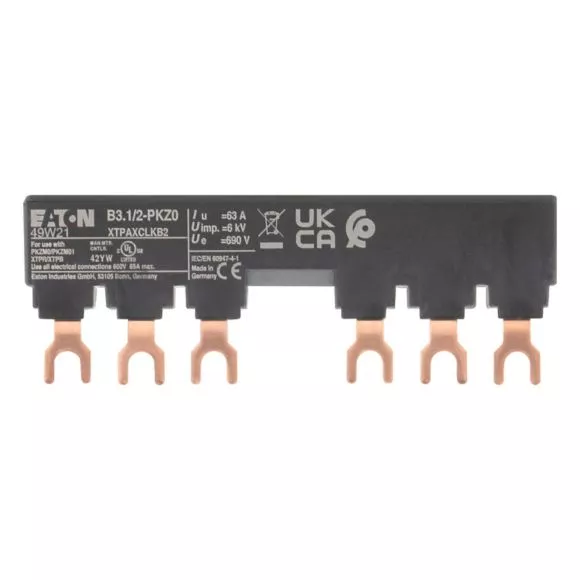

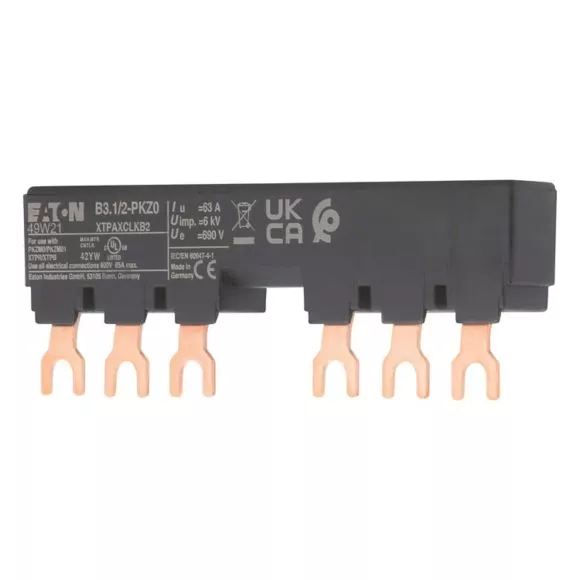

B3.1/2-PKZ0 bloki mostków trójfazowych
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 044945 |
GTIN(EAN) | 4015080449454 |
Price unit | piece |
Catalog price | 99,99 zł (81,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok mostków trójfazowych 3 biegunowy do zasilania 2 PKZM0-... z przymocowanymi po prawej stronie łącznikami pomocniczymi lub sygnalizatorami wyzwolenia, długość 99mm, z zabezpieczeniem przed dotykaniem, Ue = 690 V, Iu = 63 A
Additional features:
Information | Value |
---|---|
Net weight: | 38 g |
ETIM class: | Phase busbar |
Number of phases: | 3 |
Number of poles: | 3 |
Suitable for number of devices: | 2 |
Module width: | 54 mm |
Cross section: | 0 mm² |
Length: | 99 mm |
Width in number of modular spacings: | 5.5 |
Rated permanent current Iu: | 63 A |
Type of electric connection: | Fork |
Insulated: | yes |
Rated surge voltage: | 6 kV |
Conditioned rated short-circuit current Iq: | 0 kA |
Max. rated operation voltage Ue: | 690 V |
Rated short-time withstand current lcw: | 0 kA |
Suitable for devices with N-conductor: | no |
Suitable for devices with auxiliary switch: | no |
Colour: | Black |
