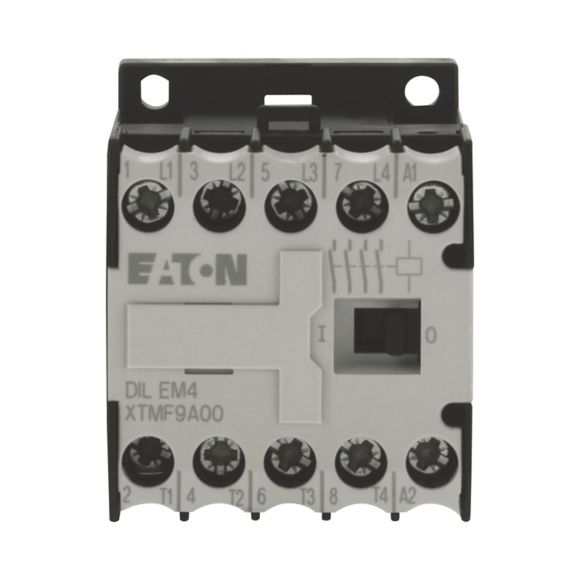

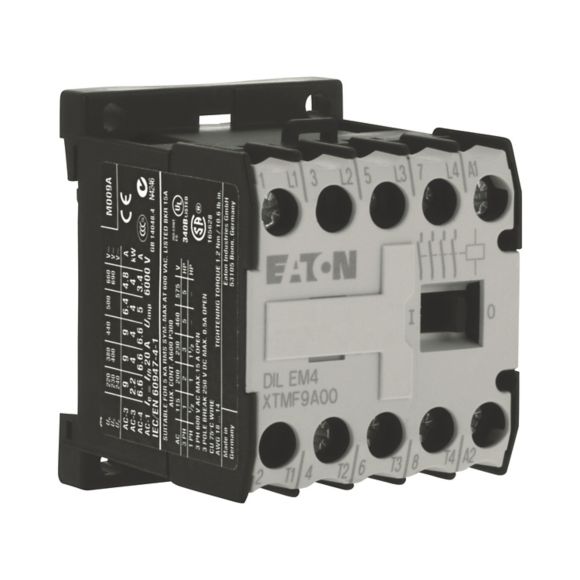

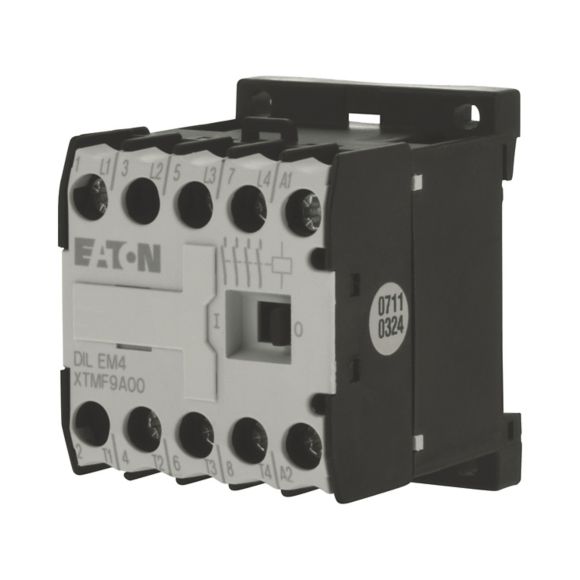

DILEM4-G(24VDC) mały stycznik AC3/I=9AP=4kW/ 4 polowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 012701 |
GTIN(EAN) | 4015080127017 |
Price unit | piece |
Catalog price | 323,12 zł (262,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik mocy, zgodnie z IEC/EN60947, 4-biegunowy, z połączeniami śrubowymi, możliwość rozbudowy o maksymalnie 4 łączników pomocniczych, mocowanie na śruby i zaciski, zintegrowane połączenie ochronne, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 10 mln cyklów łączenia mechanicznego, dostępne akcesoria: moduły łączników pomocniczych, układy ochronne, zwory punktu gwiazdowego, łączni równoległy, komplet okablowania, blokada mechaniczna
Additional features:
Information | Value |
---|---|
Net weight: | 206 g |
Country of origin | Niemcy |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Rated operation current Ie at AC-1, 400 V: | 22 A |
Rated operation current Ie at AC-3, 400 V: | 9 A |
Rated operation power at AC-3, 400 V: | 4 kW |
Rated operation current Ie at AC-4, 400 V: | 6.6 A |
Rated operation power at AC-4, 400 V: | 3 kW |
Rated operation power NEMA: | 3.7 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 4 |
Operating voltage AC 50 Hz: | 24 - 690 V |
Operating voltage AC 60 Hz: | 24 - 690 V |
Width: | 45 mm |
Height: | 58 mm |
Depth: | 54 mm |
