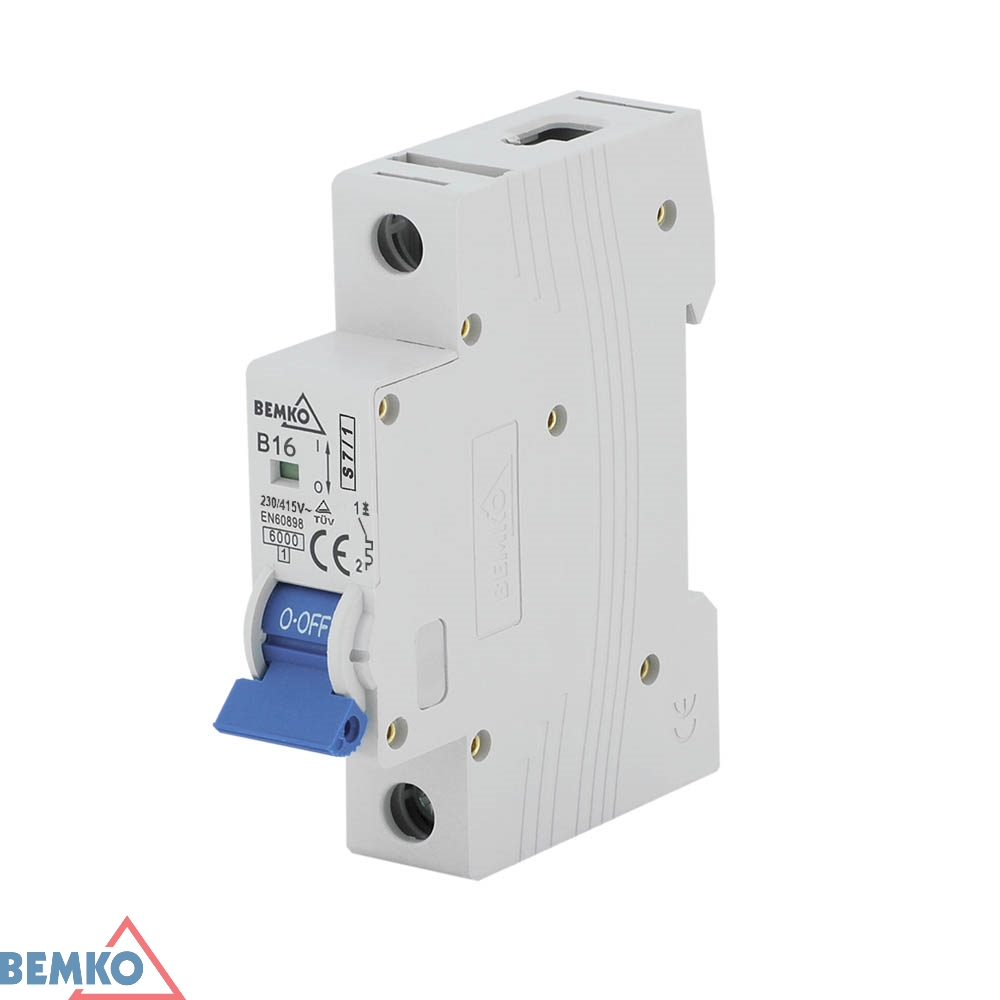

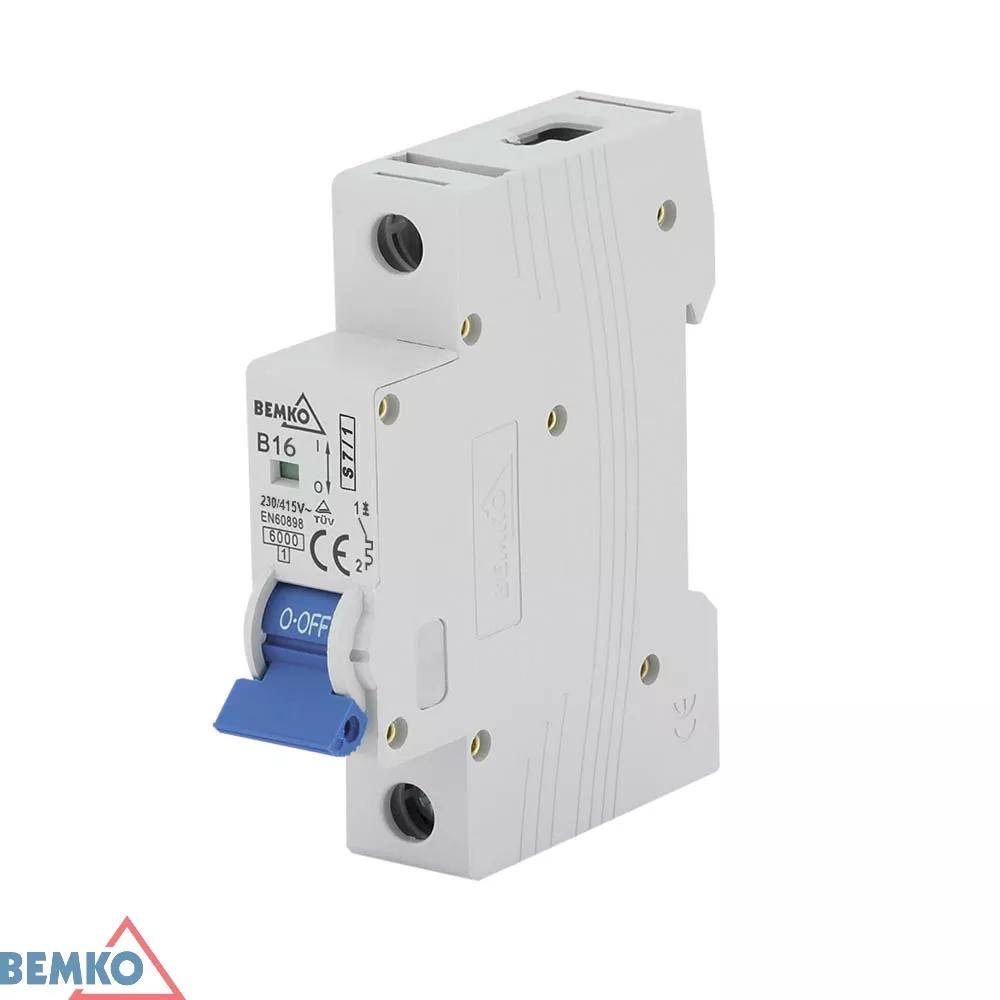

WYŁĄCZNIK NADPRĄDOWY 6KA 1P C 04A
| Information | Value |
|---|---|
| Supplier | BEMKO Sp. z o.o. |
| Series | S7 |
| Symbol | S-A00-S7-1P-C04 |
| GTIN(EAN) | 5900280906533 |
| Price unit | piece |
| Catalog price | 20,73 zł (16,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 100 g |
| Gross weight: | 100 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Built-in depth: | 50 mm |
| Release characteristic: | C |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Rated current: | 4 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 300 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 6 kA |
| Frequency: | 50 - 60 Hz |
| Current limiting class: | 1 |
| Flush-mounted installation: | yes |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Additional equipment possible: | no |
| Width in number of modular spacings: | 1 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -5 - 40 °C |
| Connectable conductor cross section multi-wired: | 5 - 16 mm² |
| Connectable conductor cross section solid-core: | 5 - 25 mm² |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-04 09:00:26 |
| Files to download: |
