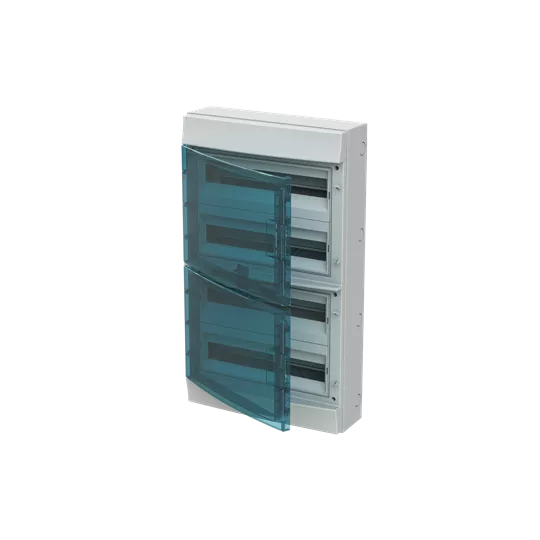

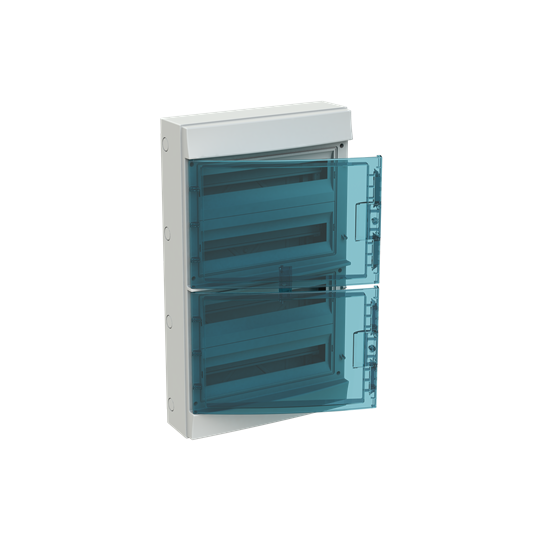

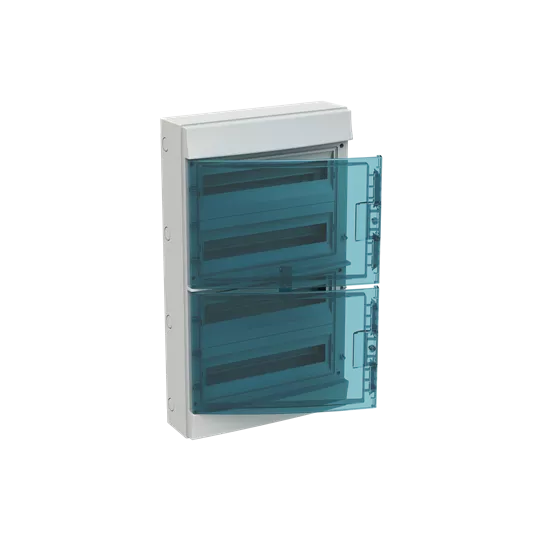

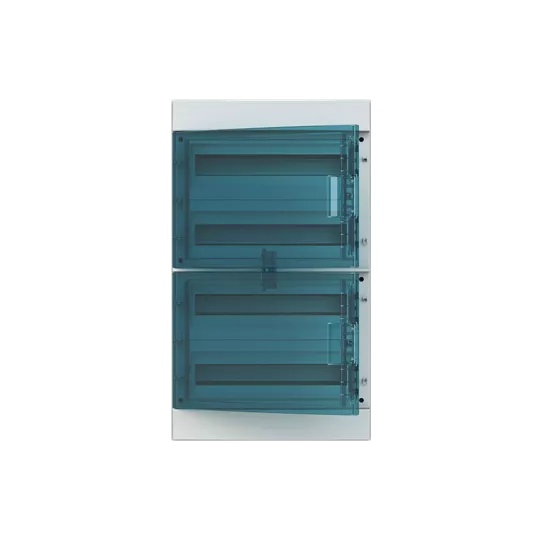

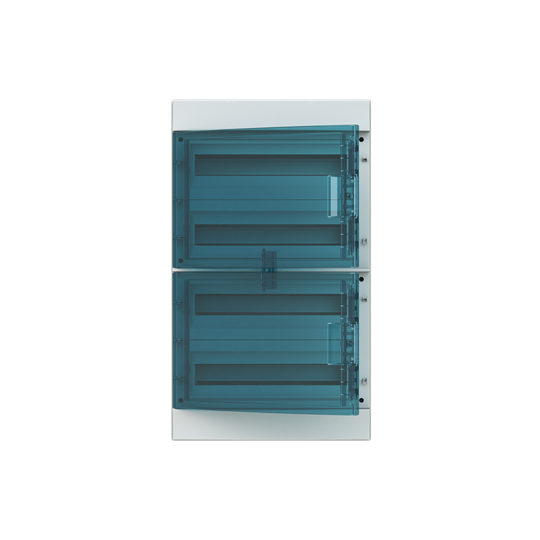

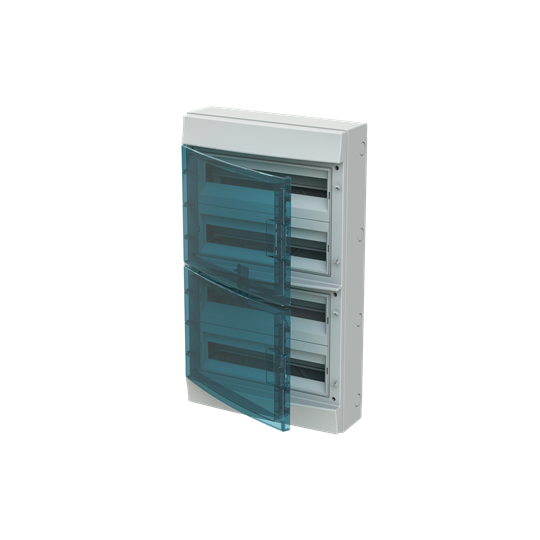

65P18X42A obudowa szara n/t, 72M, IP65, 125A, II klasa, 735x430x155mm (WxSxG) | szyny DIN | drzwi transparentne | N+PE śrubowe
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SLM006501A1209 |
GTIN(EAN) | 8000126107609 |
Price unit | piece |
Catalog price | 1 048,33 zł (852,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 5,43 kg |
ETIM class: | Small distribution board |
Mounting method: | Surface mounted |
Number of rows: | 4 |
Width in number of modular spacings: | 18 |
Type of covering: | Door |
Cover model: | Closed |
Transparent cover/door: | yes |
Housing material: | Plastic |
Height: | 735 mm |
Width: | 430.000 mm |
Depth: | 155 mm |
Inner depth: | 98 mm |
Earthing terminal block: | yes |
Neutral terminal block: | yes |
DIN-rail: | yes |
With mounting plate: | no |
Extension possible: | yes |
EMC-version: | no |
Colour: | Grey |
RAL-number: | 7035 |
Degree of protection (IP): | IP65 |
With lock: | yes |
Signal passing door: | no |
Type of door: | Single |
Type of closure: | Other |
Built-in depth: | 84 mm |
