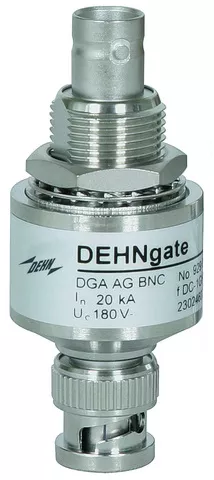

Ogranicznik przepięć DEHNgate AG BNC DGA AG BNC
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 929043 |
GTIN(EAN) | 4013364091047 |
Price unit | piece |
Catalog price | 1 270,17 zł (1 032,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 89,6 g |
ETIM class: | Lightning current arrester for data networks/MCR-technology |
Nominal voltage DC: | 180 V |
Max. continuous voltage DC: | 180 V |
Lightning impulse current (10/350 µs): | 5 kA |
Nominal discharge surge current (8/20): | 20 kA |
Nominal load current: | 3.5 A |
Voltage protection level: | 850 V |
Frequency: | 0.0 - 1000.0 MHz |
Mounting method: | Connector/cable adapter |
Pro-active thermo-control: | no |
Connection 1: | BNC, 50 Ohm |
With remote signalling contact: | no |
Explosion-tested version: | no |
