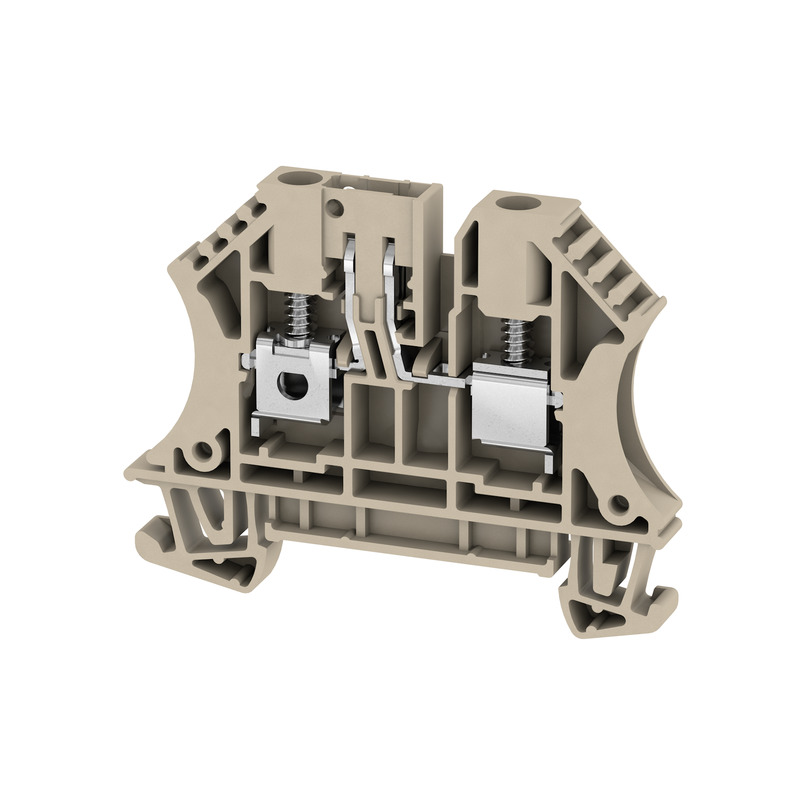

WTR 4 STB/O.TNHE Złączka szynowa rozłączalno-pomiarowa, nr.katalogowy 2436390000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 2436390000 |
GTIN(EAN) | 4050118448351 |
Price unit | piece |
Catalog price | 18,07 zł (14,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków do oddzielania obwodów podczas testów lub pomiarów.
Additional features:
Information | Value |
---|---|
ETIM class: | (Knife) disconnect terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section solid-core: | 0.5 - 6 mm² |
Connectable conductor cross section multi-wired: | 1.5 - 6 mm² |
Rated current In: | 32 A |
Rated voltage: | 500 V |
Type of electrical connection 1: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 120 °C |
Width/grid dimension: | 6.1 mm |
Closing plate required: | yes |
Colour: | Beige |
Type of slitting: | None |
Type of cross disconnection: | None |
With integrated test socket: | yes |
Length: | 60 mm |
