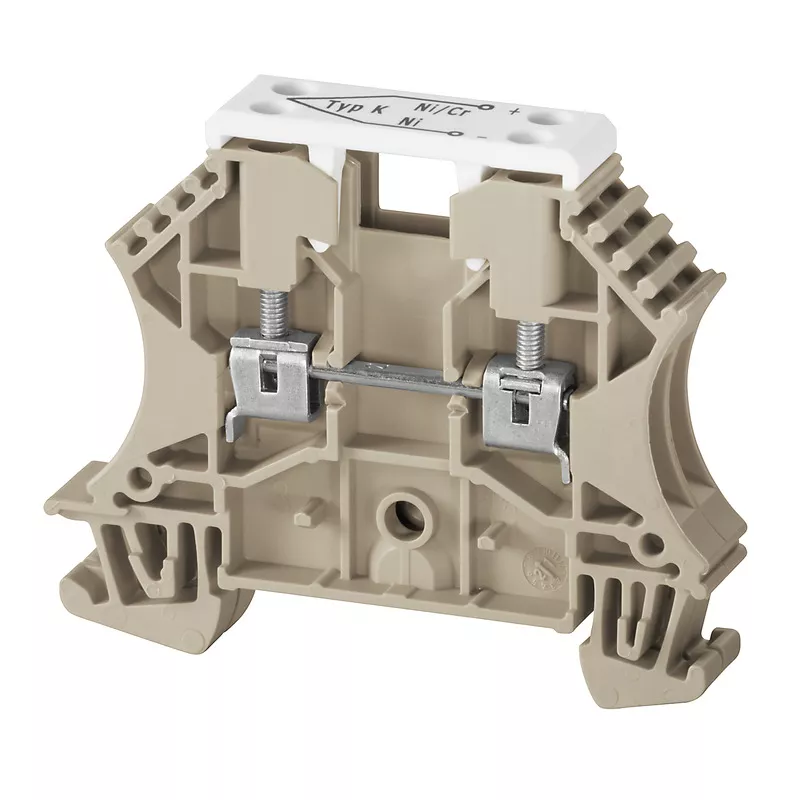

WDU 2.5/TC TYP K Złączka szynowa do termopar, nr.katalogowy 1024100000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1024100000 |
| GTIN(EAN) | 4008190140472 |
| Price unit | piece |
| Catalog price | 39,80 zł (32,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Terminal termopary jest specjalnie skonfigurowany do przekazywania bardzo małego napięcia występującego w obwodzie pomiaru temperatury. Specjalne szyny prądowe zapewniają, że w zacisku przy różnicach temperatur między odcinkiem dodatnim a ujemnym nie mogą powstawać żadne błędne sygnały.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Thermal couple terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 2.5 mm² |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 10.2 mm |
| Closing plate required: | yes |
| Colour: | Beige |
| Length: | 60 mm |
