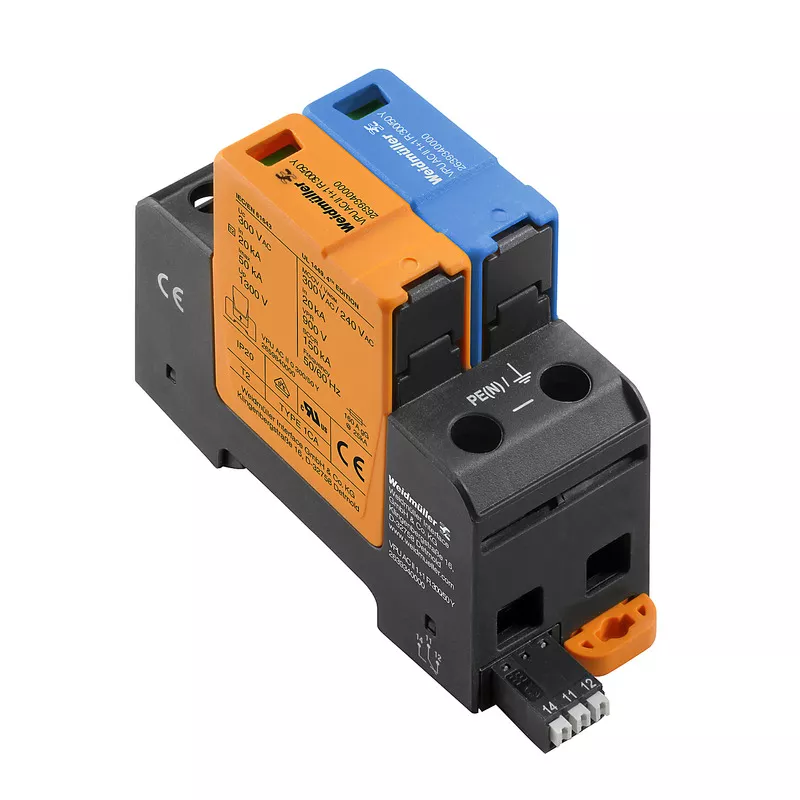

VPU AC II 1+1 R 300/50 Y Ogranicznik przepięć klasy C, nr.katalogowy 2639340000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 2639340000 |
GTIN(EAN) | 4050118679342 |
Price unit | piece |
Catalog price | 802,58 zł (652,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Urządzenie do ochrony przeciwprzepięciowej w energetyce zasilaniu. Urządzenie powinno być zainstalowane w pobliżu wejścia do chronionego systemu.
Additional features:
Information | Value |
---|---|
ETIM class: | Surge protection device for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | yes |
Number of conductors (without earthing): | 2 |
Nominal discharge surge current (8/20): | 20 kA |
Nominal voltage AC: | 230 V |
Short-circuit breaking capacity (Isccr): | 50 kA |
Max. continuous voltage AC: | 300 V |
Max. discharge surge current (8/20): | 20 kA |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 2 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
With remote signalling contact: | yes |
Integrated backup fuse: | no |
Signalling at the device: | Optical |
Category type 2: | yes |
