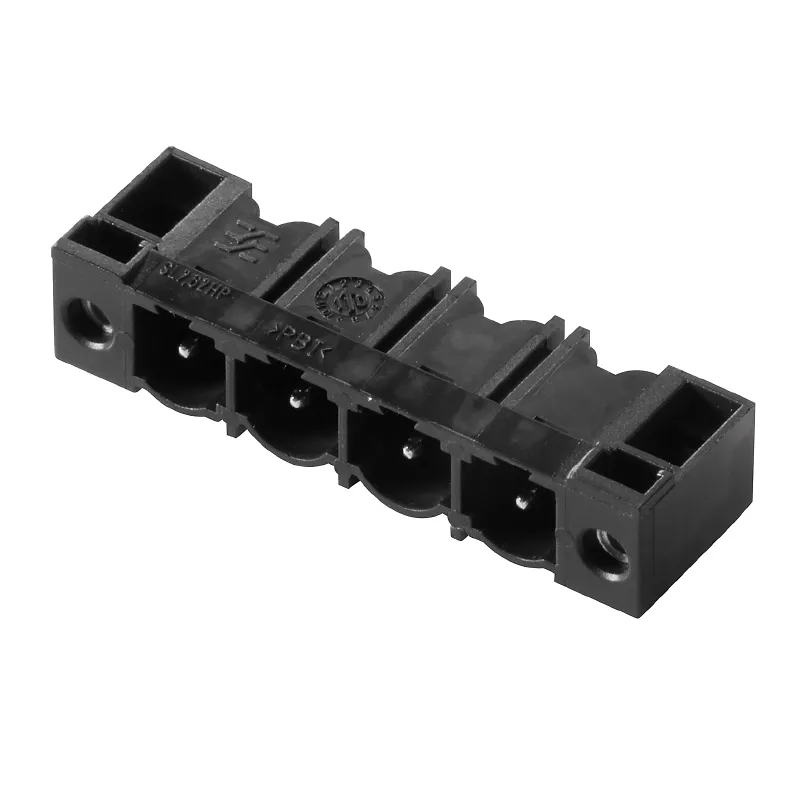

SL 7.62HP/04/90F 3.2 SN BK BX Złącze wtykowe płytek drukowanych, nr.katalogowy 1026870000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1026870000 |
| GTIN(EAN) | 4032248752362 |
| Price unit | piece |
| Catalog price | 10,18 zł (8,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Printed circuit board connector |
| Type of connection: | Flexible PCB-connector |
| Connector model: | Fixed connector |
| Contact type: | Pin |
| Number of poles: | 4 |
| Number of plug-in contact rows: | 1 |
| Modular spacing contacts: | 7.62 mm |
| Modular spacing connections: | 7.62 mm |
| Rated current In: | 25 A |
| Rated voltage: | 500 V |
| Rated surge voltage: | 6 kV |
| Over voltage category: | II |
| Pollution degree: | 2 |
| Material of contact surface: | Tin |
| Type of electric connection: | THR connection |
| Length pin: | 3.2 mm |
| Material insulation body: | Thermoplastic |
| Housing colour: | Black |
| Inflammability class of insulation material according to with UL94: | V0 |
| Operating temperature: | -50 - 100 °C |
| Type of fastening: | Solder |
| Type of banding: | Other |
