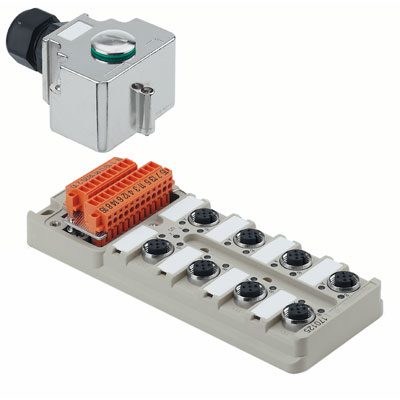

SAI-8-MH-5P M12 Pasywny rozdzielacz czujnik / człon wykonawczy (bez okablowania), nr.katalogowy 1701252000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1701252000 |
GTIN(EAN) | 4032248184491 |
Price unit | piece |
Catalog price | 950,09 zł (772,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielacz do łączenia kilku sygnałów wejściowych na jednym centralnym łącznikiem wtykowym.
Additional features:
Information | Value |
---|---|
ETIM class: | Passive sensor-actuator interface (without cable) |
Type of connector for trunk line: | Other |
Connectable conductor cross section: | 0.08 - 1.5 mm² |
Cable outer diameter for cable gland: | 10 - 14 mm |
Number of sensor-/actuator-slots: | 8 |
Number of channels per connector slot: | 5 |
Type of branches for sensor-/actuator cables: | M12 |
Number of poles sensor/actuator slots: | 5 |
Pollution degree: | 3 |
Operating voltage: | 10 - 10 V |
Max. current carrying capacity per I/O signal: | 4 A |
Max. current carrying capacity per socket: | 4 A |
Material contact body: | Brass |
Material of contact surface: | Gold |
Material insulation body: | PBT |
Thread sleeves sensor/actuator slots: | M12 |
With LED indication: | yes |
With potential separation: | yes |
Connection for NPN-sensors: | no |
Fix cable version suitable for cable guide chain: | no |
Housing colour: | Silver |
Operating temperature: | -20 - 90 °C |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Width: | 60 mm |
Height: | 55 mm |
Length: | 152 mm |
