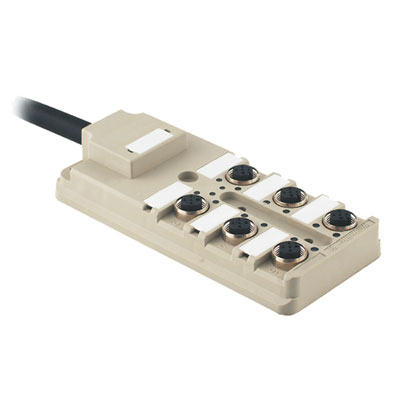

SAI-6-F 4P PUR 10M Pasywny rozdzielacz czujnik / człon wykonawczy (z przewodem), nr.katalogowy 9456480000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 9456480000 |
GTIN(EAN) | 4008190304478 |
Price unit | piece |
Catalog price | 850,09 zł (691,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielacz do łączenia kilku sygnałów wejściowych na jednym centralnym kablu wyjściowym.
Additional features:
Information | Value |
---|---|
ETIM class: | Passive sensor-actuator interface (with cable) |
Length of the preassembled cable: | 10 m |
Cable length configurable: | no |
Number of sensor-/actuator-slots: | 6 |
Number of channels per connector slot: | 4 |
Type of branches for sensor-/actuator cables: | Other |
Number of poles sensor/actuator slots: | 4 |
Pollution degree: | 3 |
Operating voltage: | 10 - 10 V |
Max. current carrying capacity per I/O signal: | 4 A |
Max. current carrying capacity per socket: | 4 A |
Material contact body: | Other copper alloys |
Material of contact surface: | Gold |
Material insulation body: | Other |
Thread sleeves sensor/actuator slots: | M12 |
With LED indication: | yes |
With potential separation: | no |
Connection for NPN-sensors: | no |
Fix cable version suitable for cable guide chain: | yes |
Housing material: | Plastic |
Housing colour: | Grey |
Operating temperature: | -20 - 80 °C |
Degree of protection (IP): | IP68 |
Explosion safety category for gas: | None |
Height: | 25 mm |
Depth: | 127 mm |
