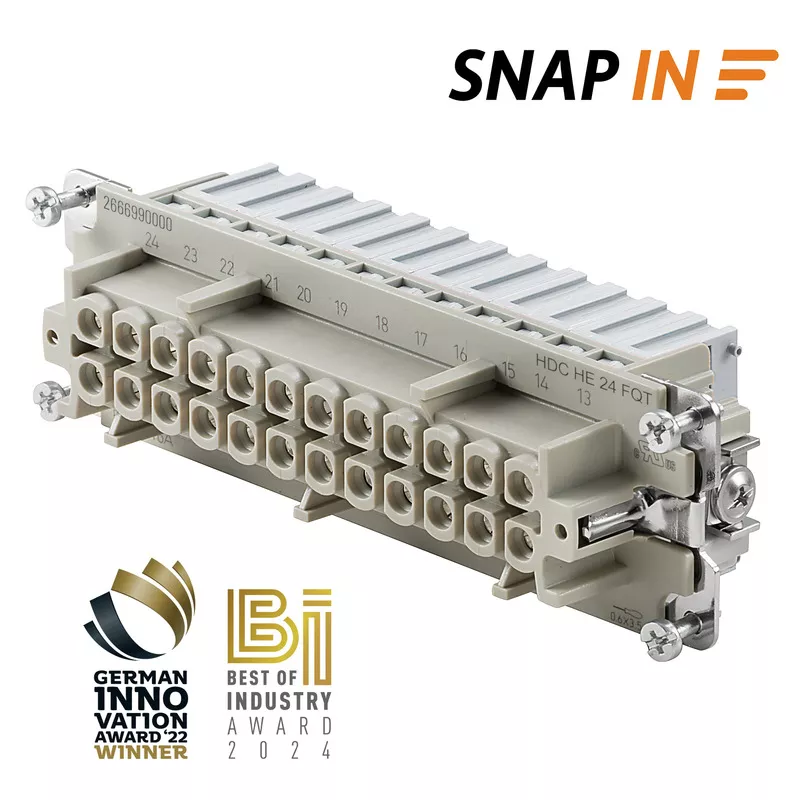

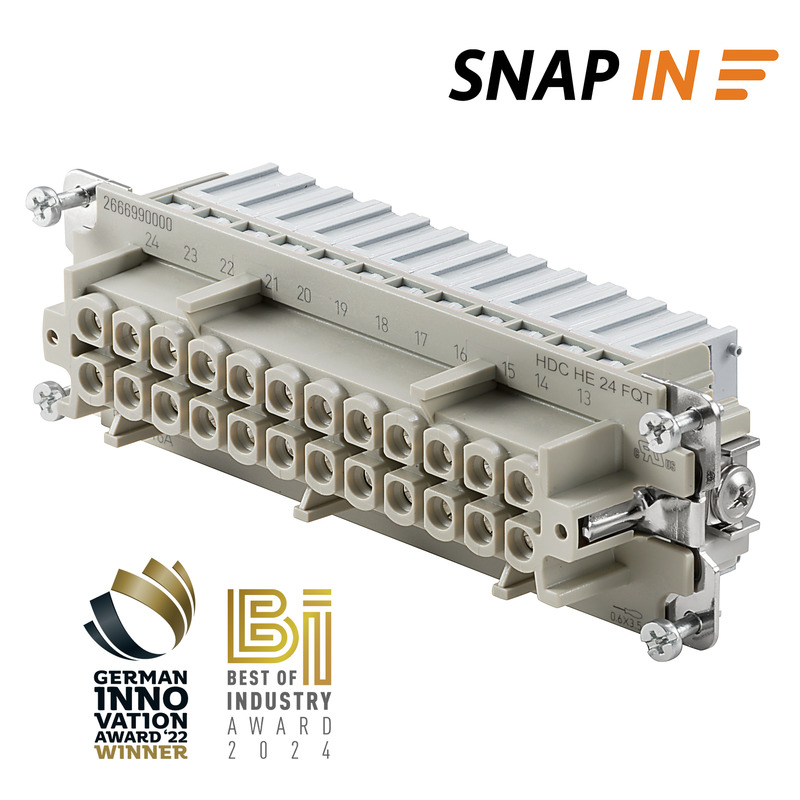

HDC HE 24 FQT Wkład do złączy prostokątnych, nr.katalogowy 2666990000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 2666990000 |
GTIN(EAN) | 4050118898217 |
Price unit | piece |
Catalog price | 138,76 zł (112,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wkładka dla wtykowych łączników przemysłowych, skłądająca się z elementu stycznego i izolacji.
Additional features:
Information | Value |
---|---|
ETIM class: | Contact insert for rectangular connectors |
Contact type: | Bus |
Number of poles: | 24 |
Material connector insert: | Thermoplastic |
Rated current In: | 16 A |
Rated voltage: | 500 V |
Rated surge voltage: | 6 kV |
Pollution degree: | 3 |
Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 2.5 mm² |
Connectable conductor cross section solid-core: | 1 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 1 - 2.5 mm² |
Material of contact surface: | Silver |
Material of contact insert: | Thermoplastic |
Material contact: | Other copper alloys |
Inflammability class of insulation material according to with UL94: | V0 |
With protective conductor: | yes |
Width: | 34 mm |
Height: | 36.3 mm |
Depth: | 111 mm |
