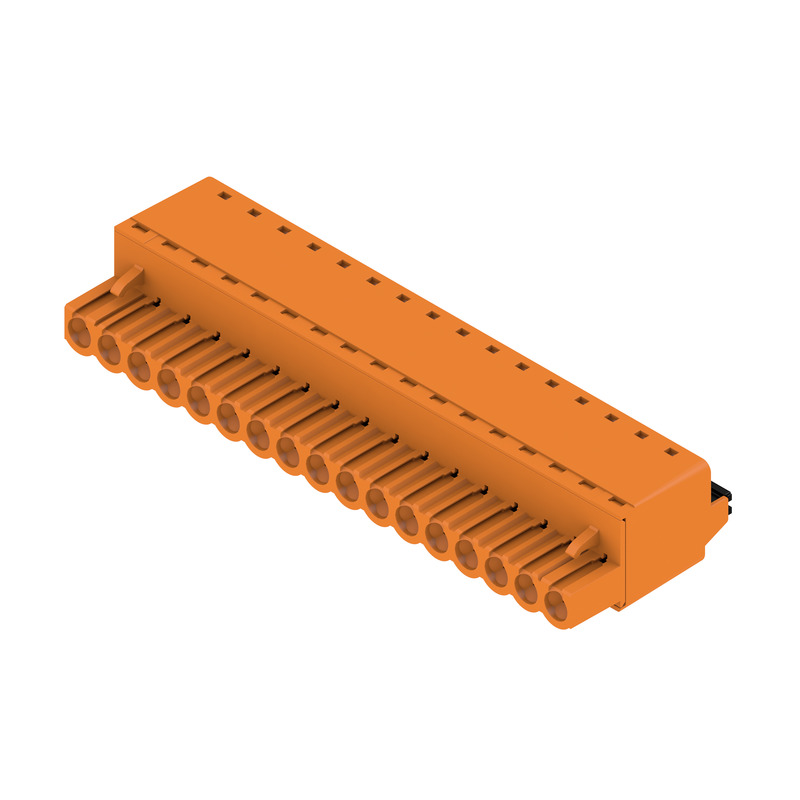

BLF 5.00HC/17/180 SN OR BX Złącze kablowe do płytek drukowanych, nr.katalogowy 1018040000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1018040000 |
GTIN(EAN) | 4032248728527 |
Price unit | piece |
Catalog price | 45,09 zł (36,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze płytki drukowanej z innowacyjną technologią, umożliwiającą bezpieczną i intuicyjną obsługę.
Additional features:
Information | Value |
---|---|
ETIM class: | Cable connector |
Type of connection: | Flexible PCB-connector |
Contact type: | Bus |
Number of poles: | 17 |
Number of plug-in contact rows: | 1 |
Modular spacing contacts: | 5 mm |
Modular spacing connections: | 5 mm |
Angle contact/conductor connection: | 180° (horizontal) |
Rated current In: | 21 A |
Rated voltage: | 320 V |
Rated surge voltage: | 4 kV |
Over voltage category: | III |
Pollution degree: | 2 |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.2 - 2.5 mm² |
Type of electric connection: | Push-in clamp connection |
Connectable cable type: | Tubular cable |
Material of contact surface: | Tin |
Material contact: | Other copper alloys |
Material insulation body: | Polybutylene terephthalate (PBT) |
Housing material: | Plastic |
Coating housing: | Other |
Housing colour: | Orange |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -50 - 100 °C |
Degree of protection (IP), mounted: | IP20 |
