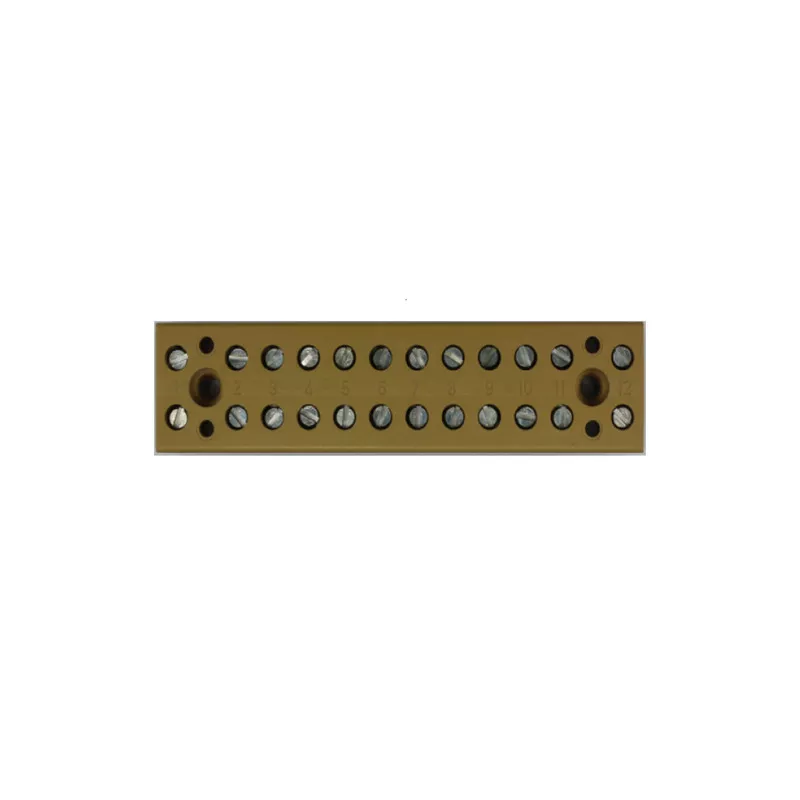

BK 12/E Listwa zaciskowa jedno i wielobiegunowa, nr.katalogowy 7906100000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 7906100000 |
| GTIN(EAN) | 4008190576301 |
| Price unit | piece |
| Catalog price | 79,54 zł (64,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Pasek zaciskowy przykręcany bezpośrednio do spodu obudowy.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Explosion-tested version 'Ex e': | yes |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
| Rated current In: | 32 A |
| Rated voltage: | 400 V |
| Type of electrical connection 1: | Screw connection |
| Connection position: | Sideways |
| Number of poles: | 12 |
| Material insulation body: | Duroplast |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 22 mm |
| Length: | 20 mm |
| Closing plate required: | no |
| Colour: | Yellow |
| Transparent: | no |
