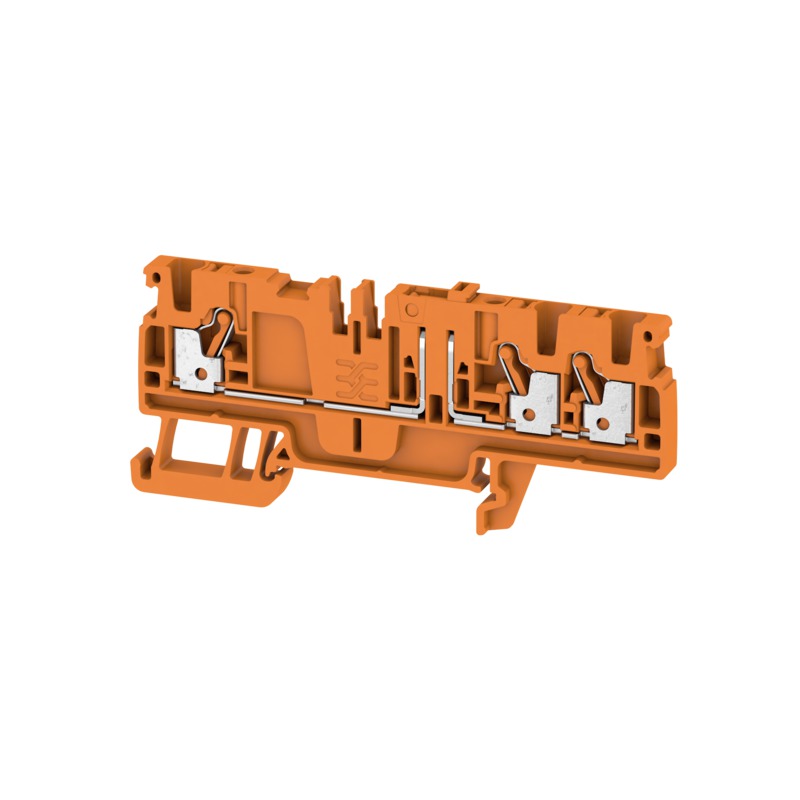

ADT 2.5 3C OR Złączka szynowa rozłączalno-pomiarowa, nr.katalogowy 1989850000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1989850000 |
GTIN(EAN) | 4050118374384 |
Price unit | piece |
Catalog price | 19,63 zł (15,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków do oddzielania obwodów podczas testów lub pomiarów.
Additional features:
Information | Value |
---|---|
ETIM class: | (Knife) disconnect terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
Rated current In: | 20 A |
Rated voltage: | 500 V |
Type of electrical connection 1: | Plug-in connection |
Connection position: | Atop |
Number of levels: | 1 |
Number of clamp positions per level: | 3 |
Internally connected stages: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Inflammability class of insulation material according to with UL94: | V0 |
Operating temperature: | -60 - 130 °C |
Width/grid dimension: | 5.1 mm |
Closing plate required: | yes |
Colour: | Orange |
Type of slitting: | Swivelling |
Type of cross disconnection: | None |
With integrated test socket: | yes |
Length: | 84.5 mm |
