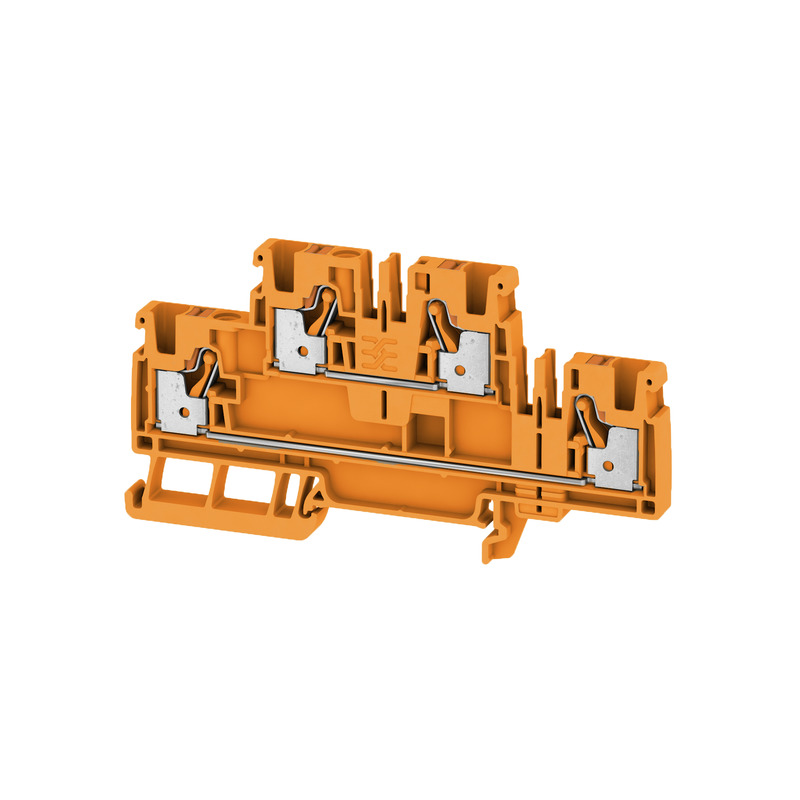

A2T 4 OR Złączka szynowa przelotowa, nr.katalogowy 2552480000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 2552480000 |
GTIN(EAN) | 4050118562460 |
Price unit | piece |
Catalog price | 14,88 zł (12,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy z wieloma poziomami służący w celu podłączenia lub połączenia przewodników ze stałym bezpiecznym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Kompaktowa konstrukcja.
Additional features:
Information | Value |
---|---|
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
Rated current In: | 32 A |
Rated voltage: | 800 V |
Type of electrical connection 1: | Plug-in connection |
Connection position: | Atop |
Number of levels: | 2 |
Number of clamp positions per level: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 130 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 6.1 mm |
Length: | 100 mm |
Closing plate required: | yes |
Colour: | Orange |
Internally connected stages: | no |
