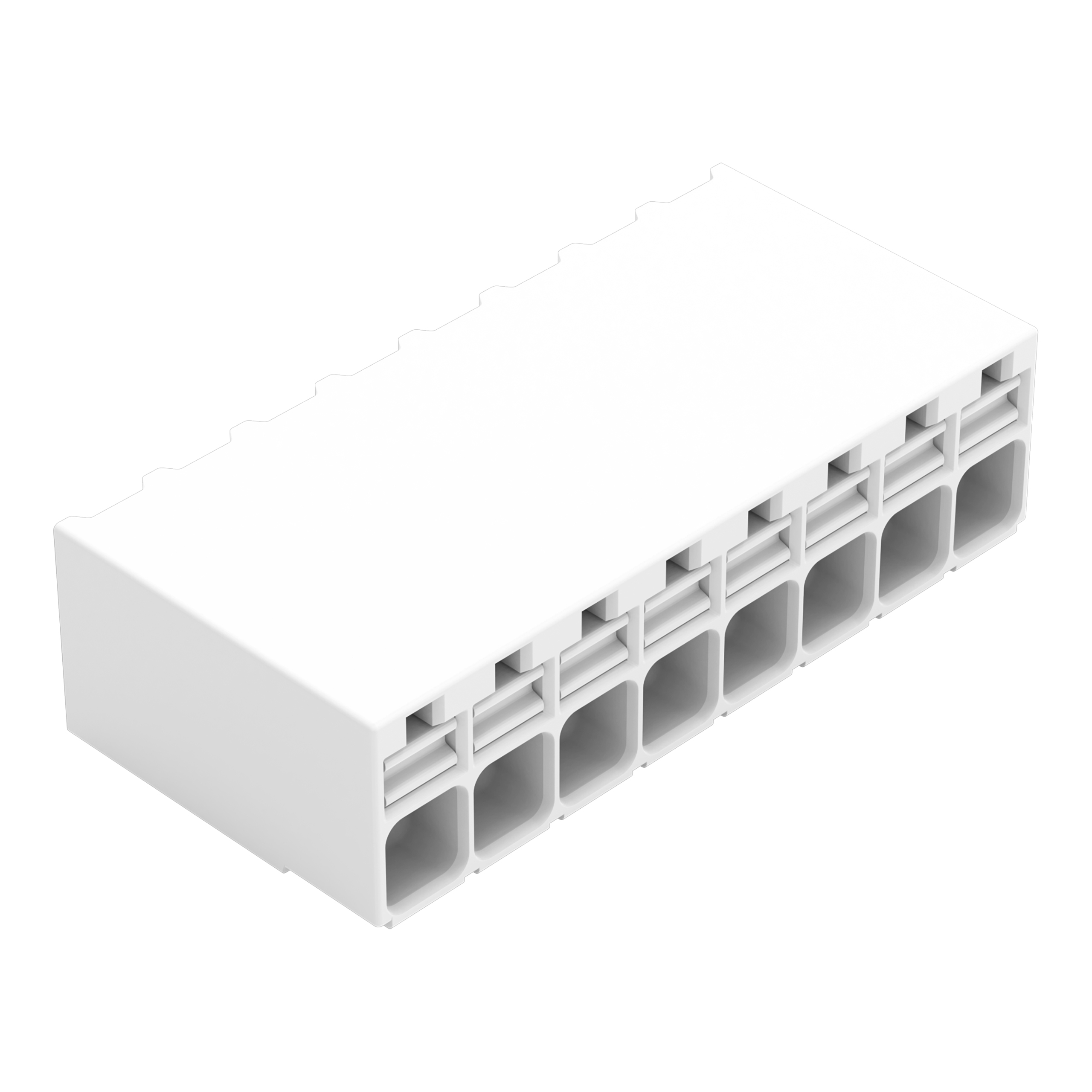

Złączka SMD do PCB przycisk 1,5 mm² raster 3,5 mm 8-bieg., biały 2086-1208/700-650/997-607
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2086-1208/700-650/997-607 |
GTIN(EAN) | 4066966352801 |
Price unit | piece |
Catalog price | 14,66 zł (11,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

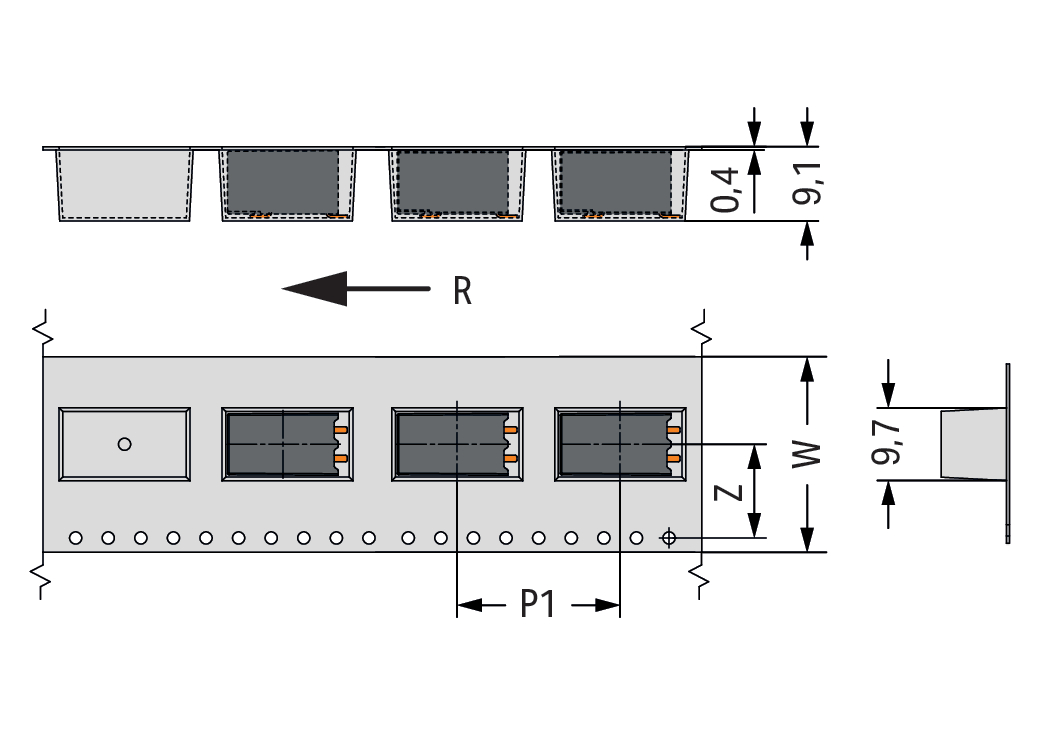

złączka SMD do PCB; przycisk; 1,5 mm²; raster 3,5 mm; 8-bieg.; Push-in CAGE CLAMP®; w rolce; 1,50 mm²; biały
Additional features:
Information | Value |
---|---|
Net weight: | 5,09 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | White |
Rated current In: | 17.5 A |
Material connection surface: | Tin |
Rated surge voltage: | 2.5 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.14 - 1.5 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 160 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |
Length pin: | 1.5 mm |
Modular spacing connections: | 3.5 mm |
Type of banding: | None |
Over voltage category: | III |

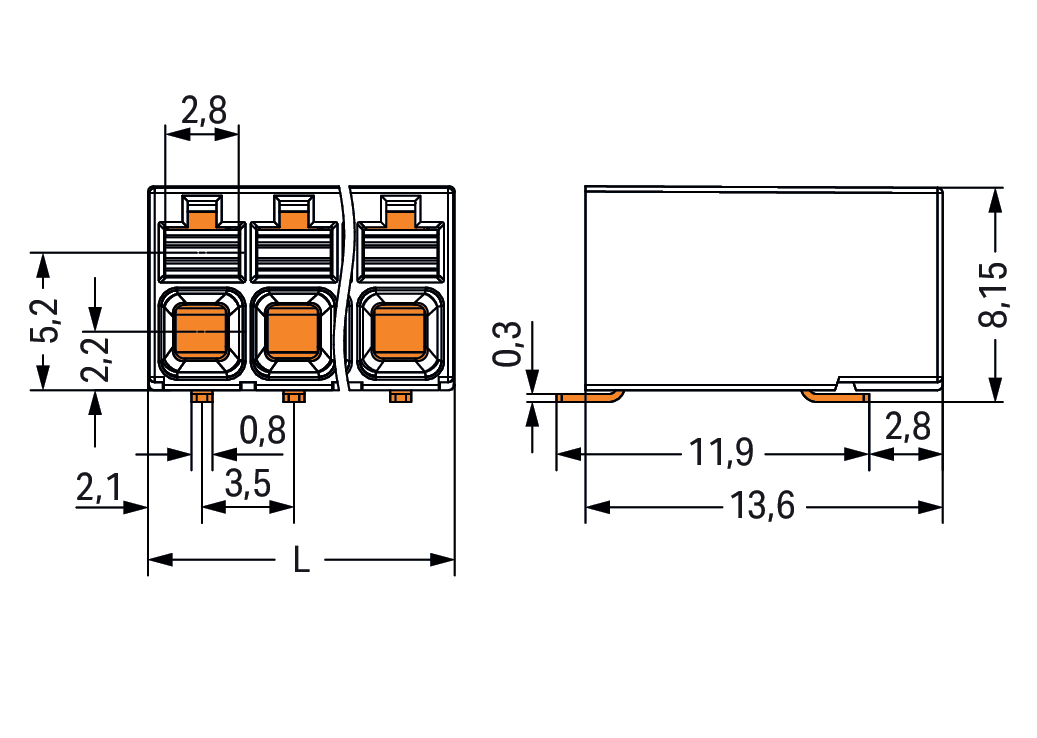

Height: | 8.15 mm |
Connectable conductor cross section solid-core: | 0.14 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 0°/180° (horizontal) |
Number of electrical connections: | 8 |
