Złączka przepustowa niebieska 826-160/000-006
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 826-160/000-006 |
| GTIN(EAN) | 4044918532464 |
| Price unit | piece |
| Catalog price | 15,28 zł (12,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:

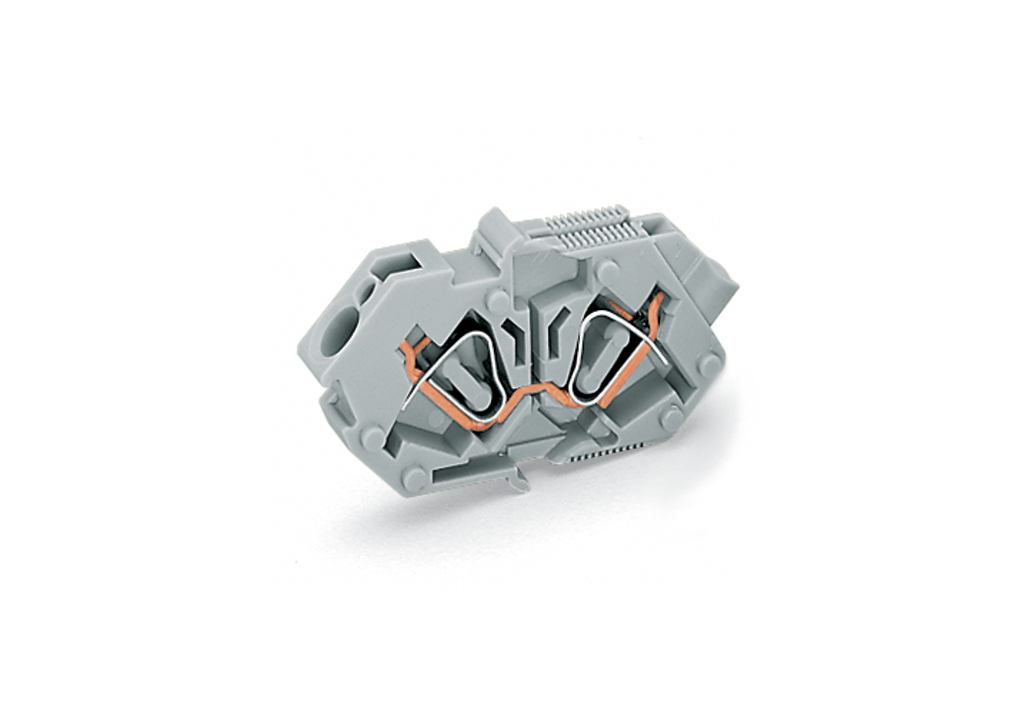

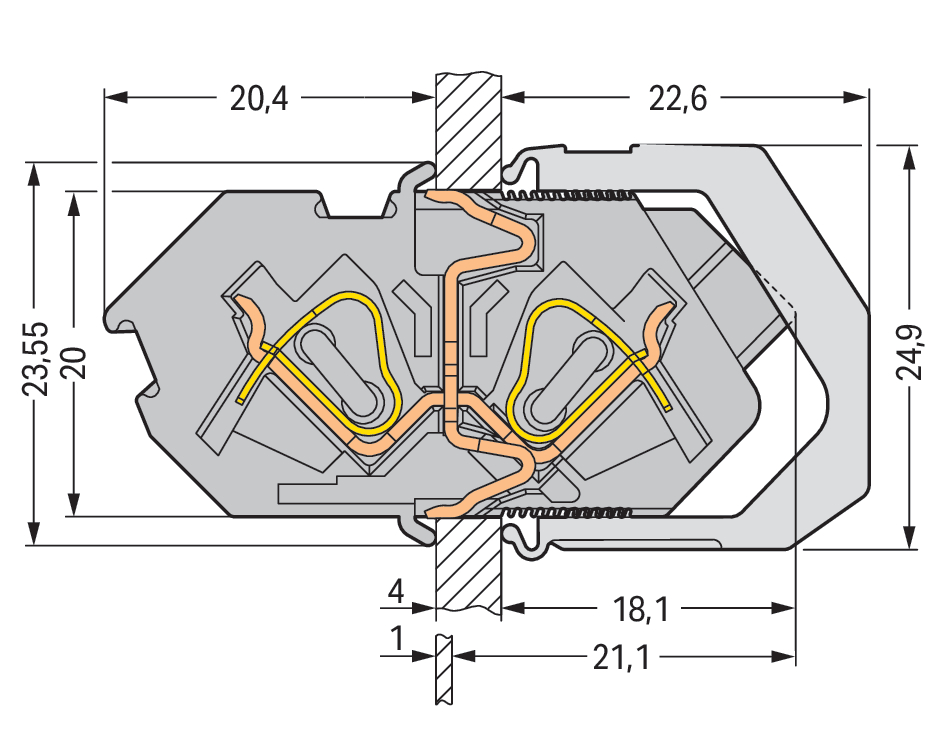

złączka modułowa przepustowa wewnętrzna; połączenie przewód/przewód; grubość blachy 1 … 4 mm; 4 mm²; raster 7 mm; 1-bieg.; CAGE CLAMP®; 4,00 mm²; niebieski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,73 g |
| Country of origin | Niemcy |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 2 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 105 °C |
| Height: | 23,55 mm |
| Connectable conductor cross section solid-core: | 0,08 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0,25 - 2,5 mm² |
| Mounting method: | Other |
| Rated current In: | 32 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0,08 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0,08 - 4 mm² |
| Number of poles: | 1 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Blue |
| Width: | 7 mm |
| Rated voltage: | 320 V |
| Depth: | 42,5 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
WAGO GmbH & Co. KG
Hansastraße 27, 32423 Minden, Niemcy
mail: wago.elwag@wago.com
www: wago.com
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-03-24 14:07:48 |
| Files to download: | |
| External links: |
