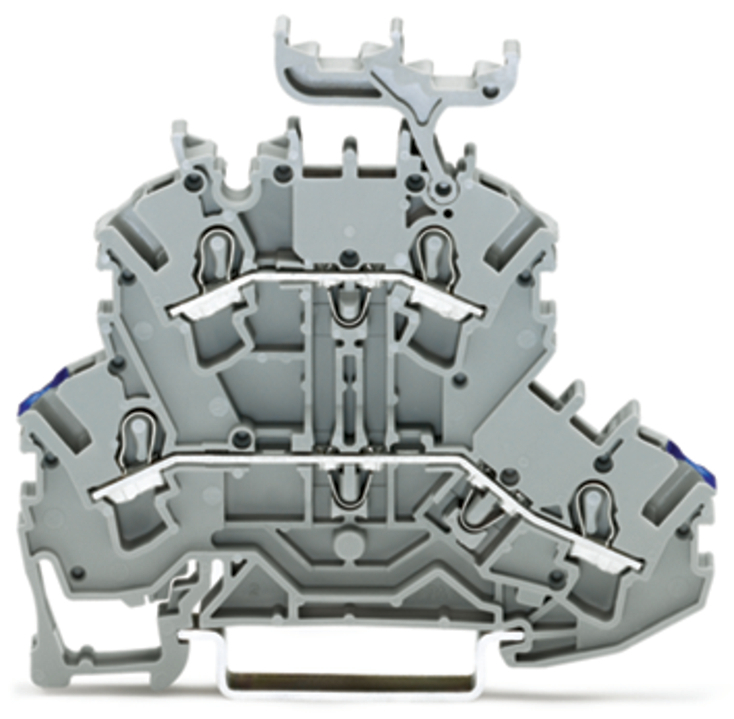

Złączka dwupiętrowa przelotowa/przelotowa, szara 2002-2232
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2002-2232 |
GTIN(EAN) | 4044918964791 |
Price unit | piece |
Catalog price | 15,09 zł (12,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka 2-piętrowa; złączka przelotowa/przelotowa; N/L; z podstawką oznacznika; do zastosowań Ex e II; otwory na przewody, parter, nadruk nieb.; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 10,6 g |
ETIM class: | Feed-through terminal block |
Operating temperature: | 105 - 105 °C |
Explosion-tested version 'Ex e': | yes |
Rated current In: | 24 A |
Height: | 69.7 mm |
Number of levels: | 2 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 500 V |
Depth: | 61.8 mm |
