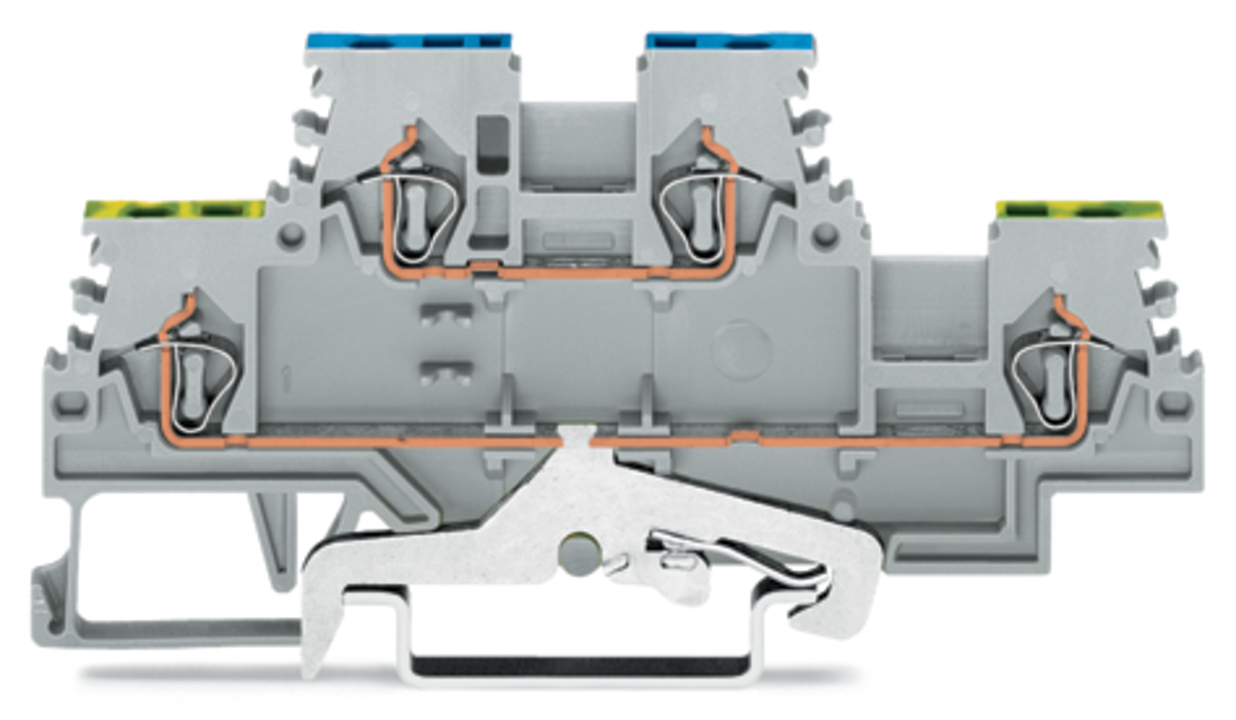

Złączka dwupiętrowa PE/przelotowa, szara 279-517
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 279-517 |
GTIN(EAN) | 4050821109389 |
Price unit | piece |
Catalog price | 32,26 zł (26,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka 2-piętrowa; złączka PE/przelotowa; 1,5 mm²; PE/N; bez podstawki oznacznika; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 1,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 11,32 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 85 mm |
Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
PEN function possible: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 2 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
Number of clamp positions per level: | 2 |
Colour: | Other |
Width: | 4 mm |
Depth: | 39 mm |
