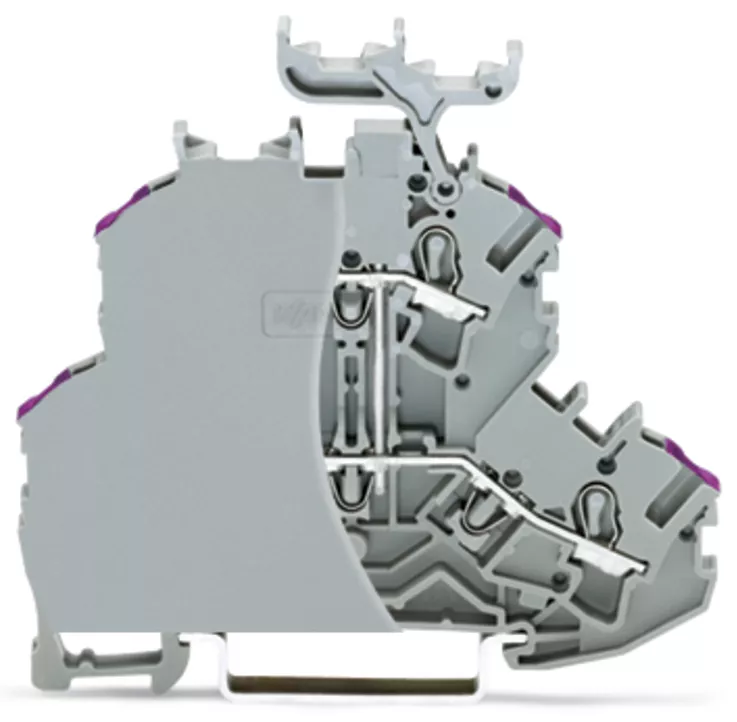

Złączka dwupiętrowa 4-przewodowa złączka przelotowa, szara 2002-2238/099-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2002-2238/099-000 |
| GTIN(EAN) | 4050821299097 |
| Price unit | piece |
| Catalog price | 21,75 zł (17,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka 2-piętrowa; złączka przelotowa 4-przewodowa; ze ścianką końcową; L; z podstawką oznacznika; z mostkowaniem wewnętrznym; otwory na przewody z fiolet. nadrukiem; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 14,22 g |
| ETIM class: | Feed-through terminal block |
| Operating temperature: | 105 - 105 °C |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 24 A |
| Height: | 69.7 mm |
| Number of levels: | 2 |
| Closing plate required: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 2 |

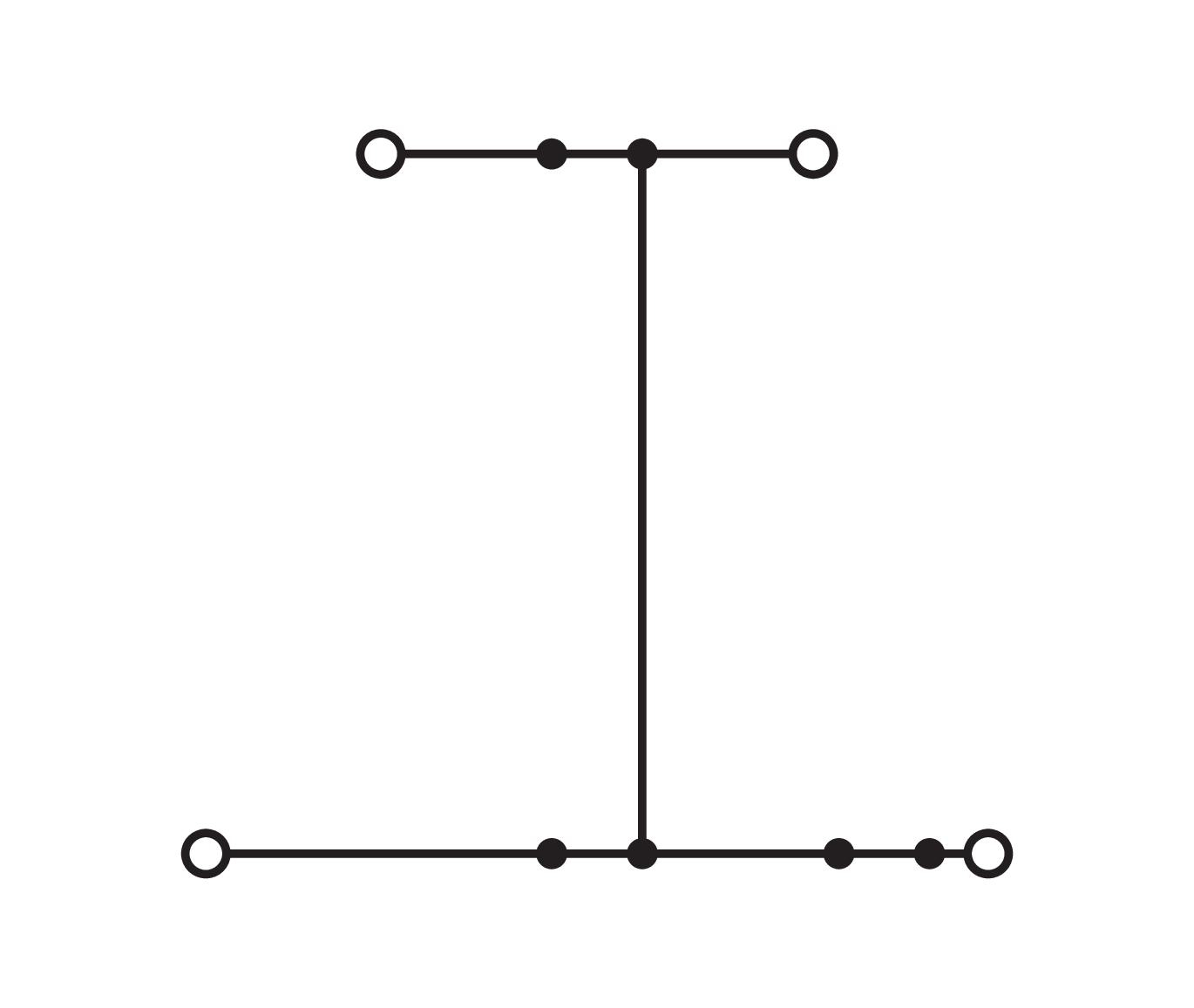

| Internally connected stages: | yes |
| Colour: | Grey |
| Width: | 6.2 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 800 V |
| Depth: | 61.8 mm |
