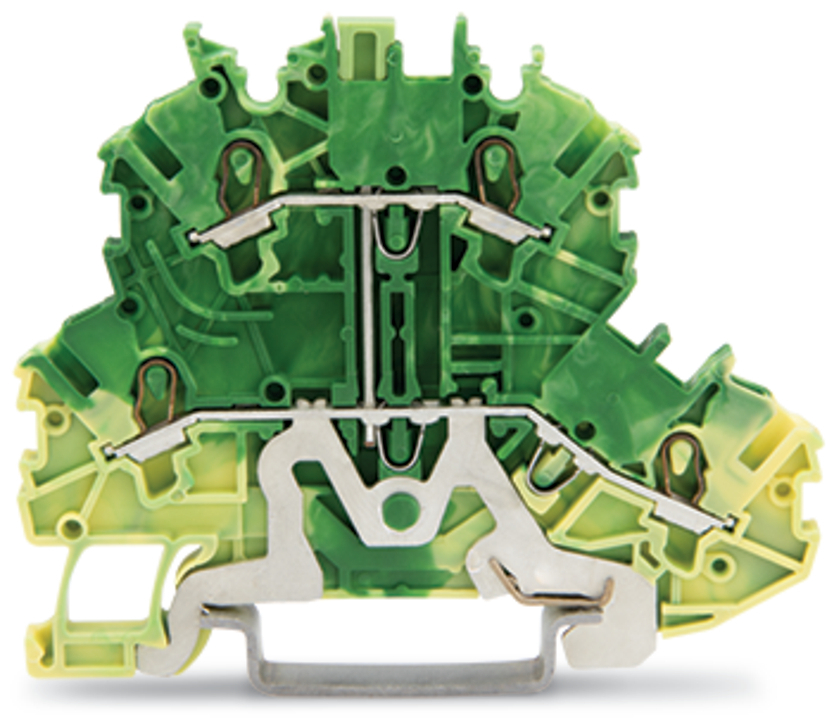

Złączka dwupiętrowa 4-przewodowa złączka PE, żółto-zielona 2000-2207
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2000-2207 |
GTIN(EAN) | 4055143251433 |
Price unit | piece |
Catalog price | 33,95 zł (27,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka 2-piętrowa; złączka PE 4-przewodowa; 1 mm²; PE; bez podstawki oznacznika; z mostkowaniem wewnętrznym; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 1,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 9,8 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
PEN function possible: | no |
Height: | 69.7 mm |
Number of levels: | 2 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 3.5 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Depth: | 51.7 mm |
