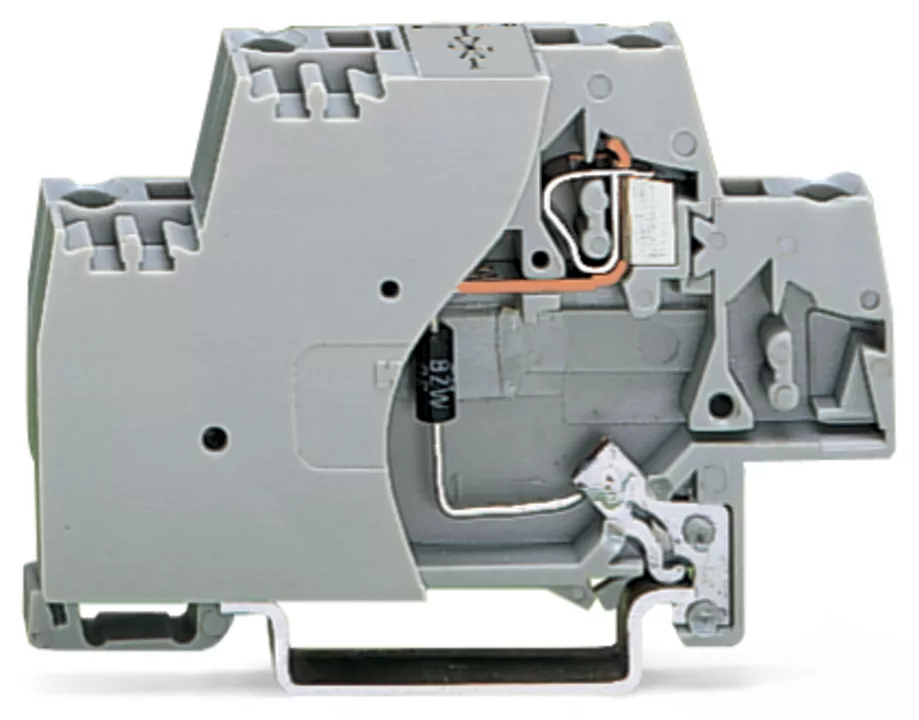

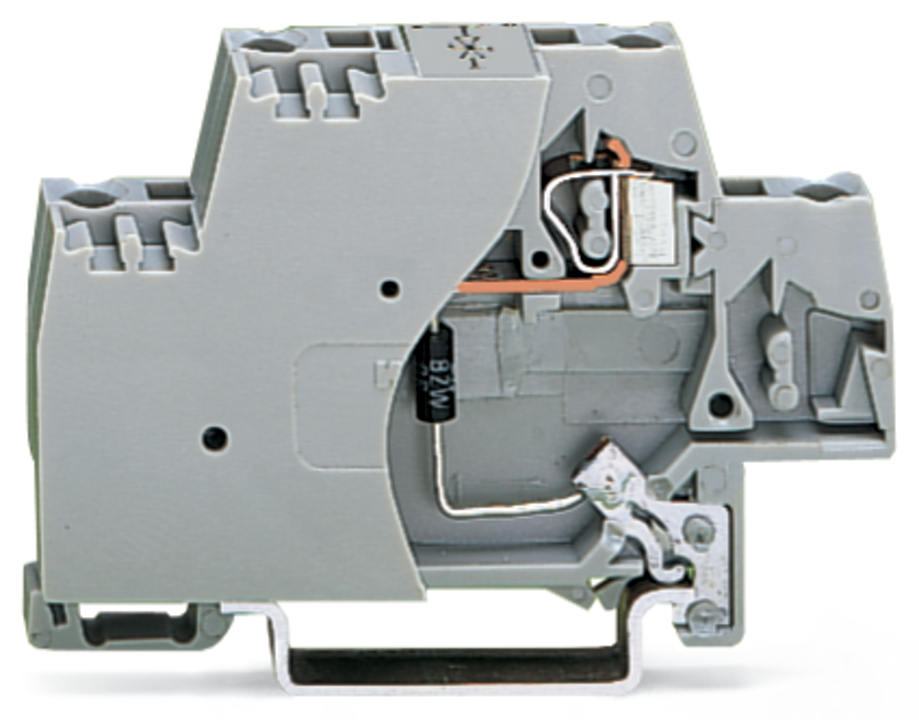

Złączka do zabudowy elementów 2-piętrowe ze ścianką końc. i bezpośr. połącz. z TS, szara 280-502/281-595
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 280-502/281-595 |
| GTIN(EAN) | 4050821860754 |
| Price unit | piece |
| Catalog price | 113,14 zł (91,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

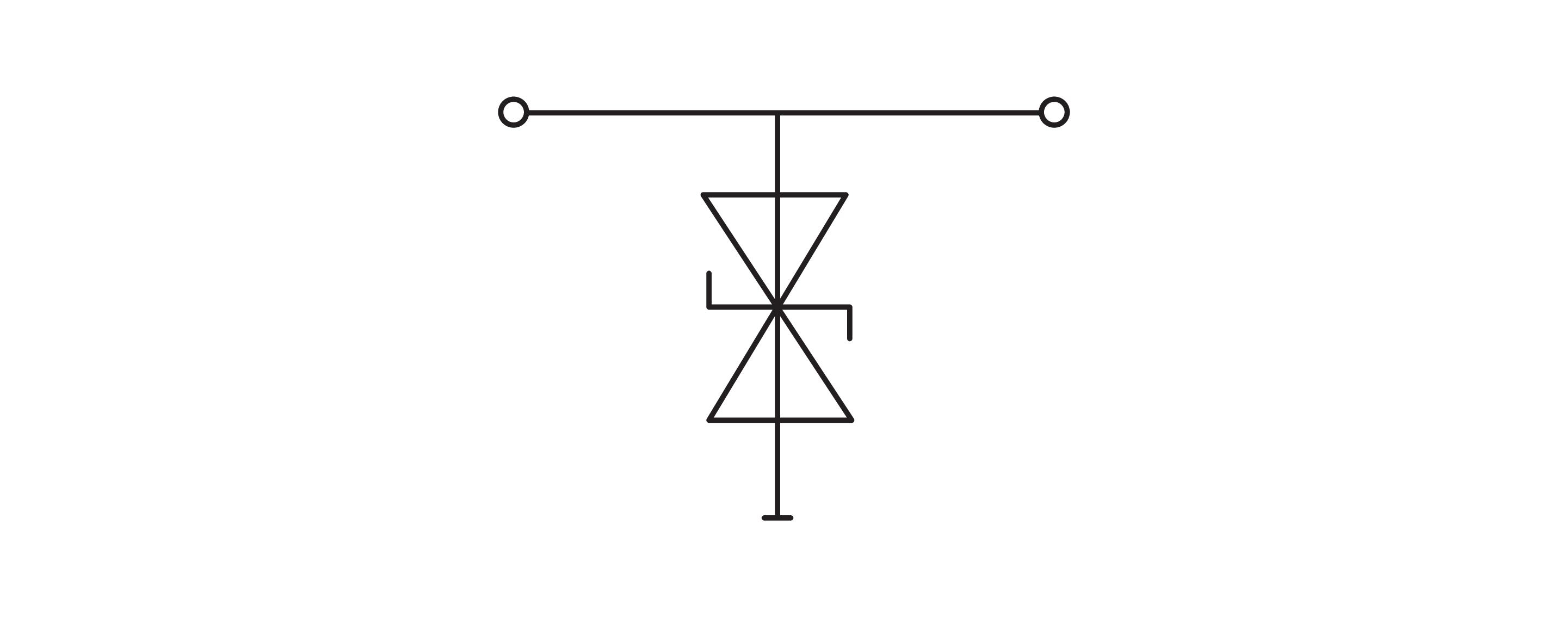

złączka do zabudowy elementów; 2-piętr.; ze ścianką końcową i bezpośrednim połączeniem z szyną montażową; z diodą transil 1.5KE-C; 230 V AC; na szynę TS 35 x 15 i 35 x 7,5; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 12,08 g |
| ETIM class: | Component terminal block |
| Material insulation body: | Thermoplastic |
| Height: | 64 mm |
| Operating temperature: | 105 - 105 °C |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 20 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | yes |
| Type of electrical connection 1: | Spring clamp connection |
| Type of component: | Suppressor diode |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Number of levels: | 1 |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Explosion-tested version 'Ex e': | no |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Grey |
| Rated voltage: | 230 V |
| Width: | 10 mm |
| Depth: | 39.5 mm |
