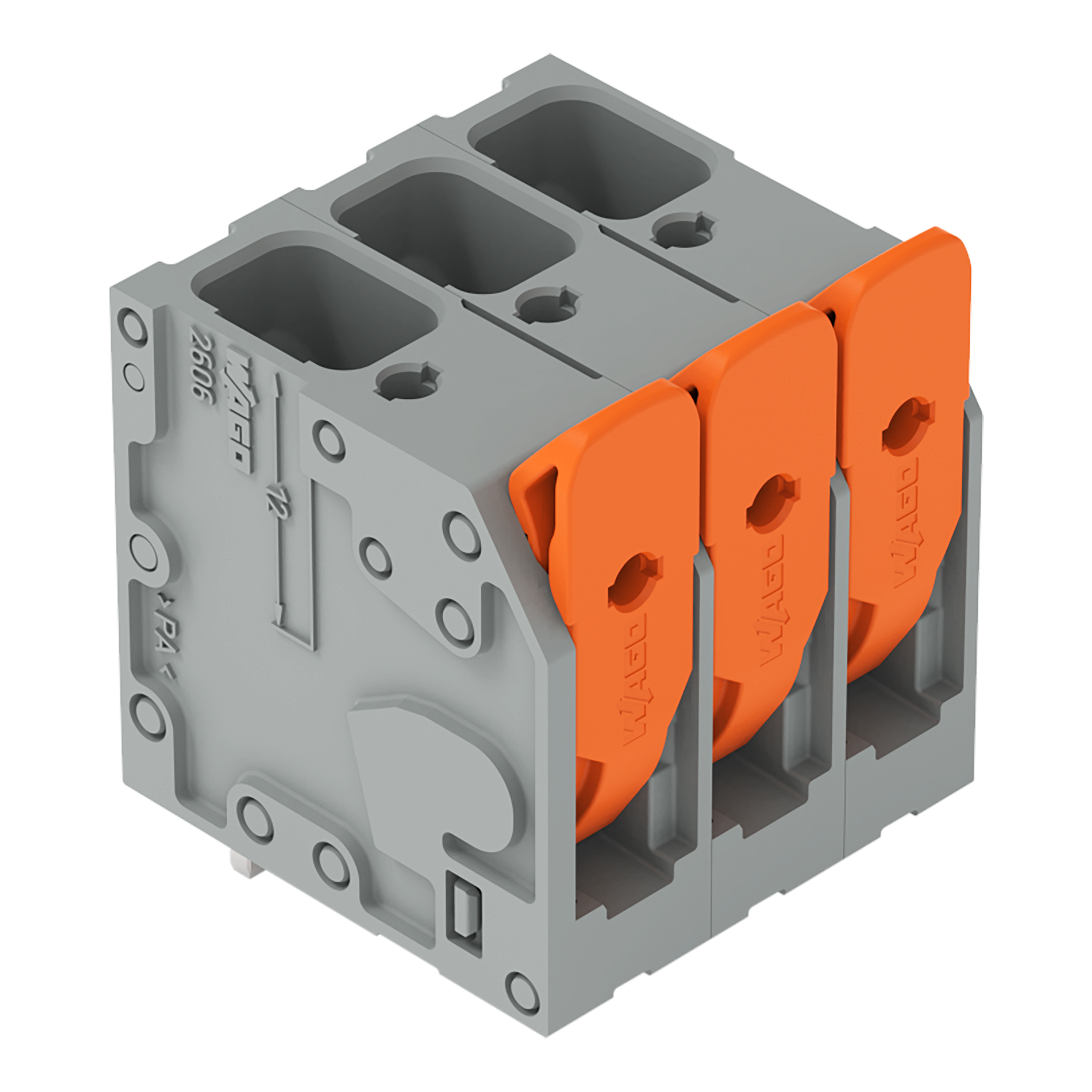

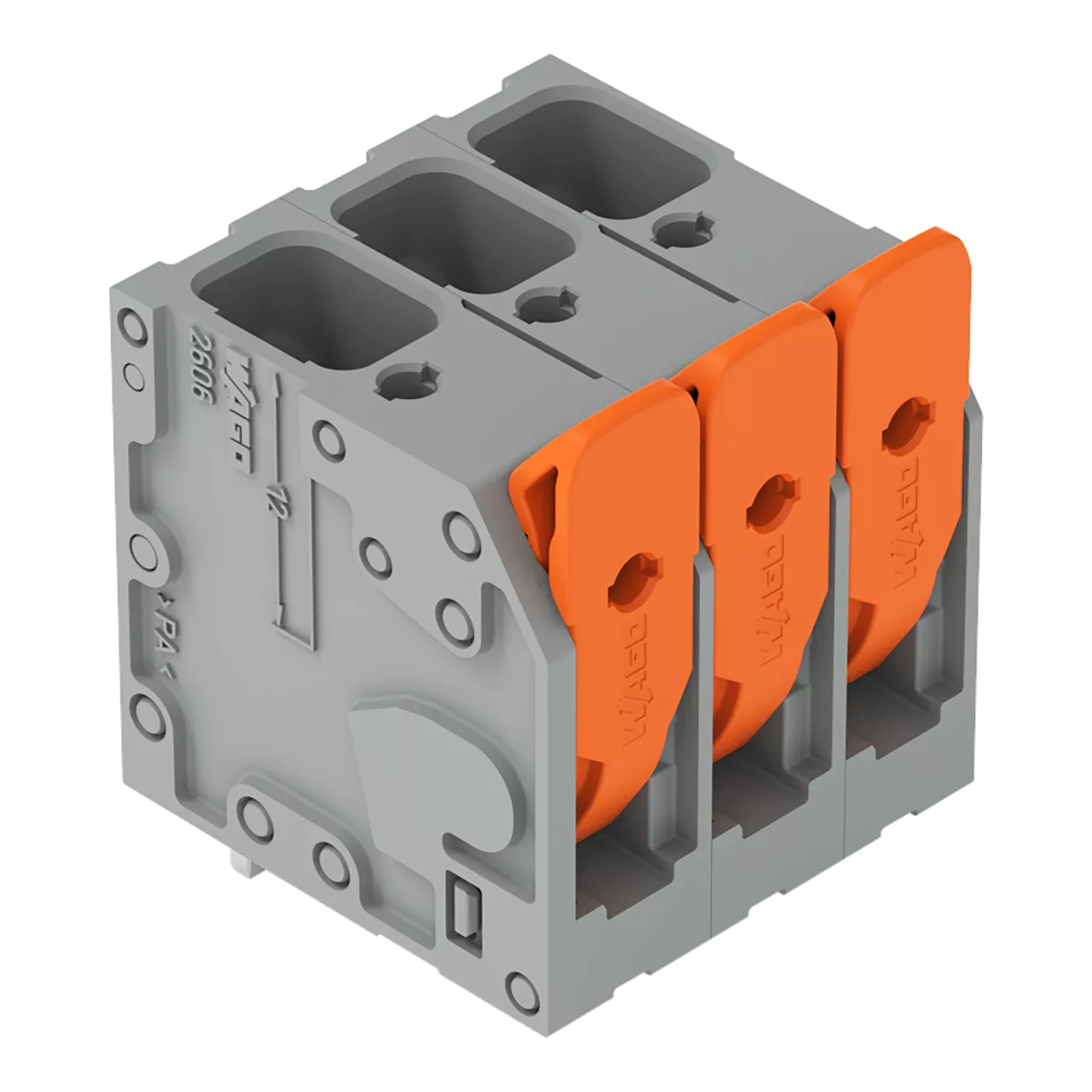

Złączka do płytek drukowanych dźwignia 6 mm² RM 7,5 mm 3-bieg, szara 2606-3103/010-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2606-3103/010-000 |
GTIN(EAN) | 4066966210071 |
Price unit | piece |
Catalog price | 26,62 zł (21,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złącze do PCB; dźwignia; 6 mm²; raster 7,5 mm; 3-bieg.; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 13,02 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Rated current In: | 41 A |
Material connection surface: | Tin |
Rated surge voltage: | 8 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 10 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 10 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 1000 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |
Length pin: | 4 mm |
Modular spacing connections: | 7.5 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 27 mm |
Connectable conductor cross section solid-core: | 0.2 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 6 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 90° (upwards vertical) |
Number of electrical connections: | 3 |
