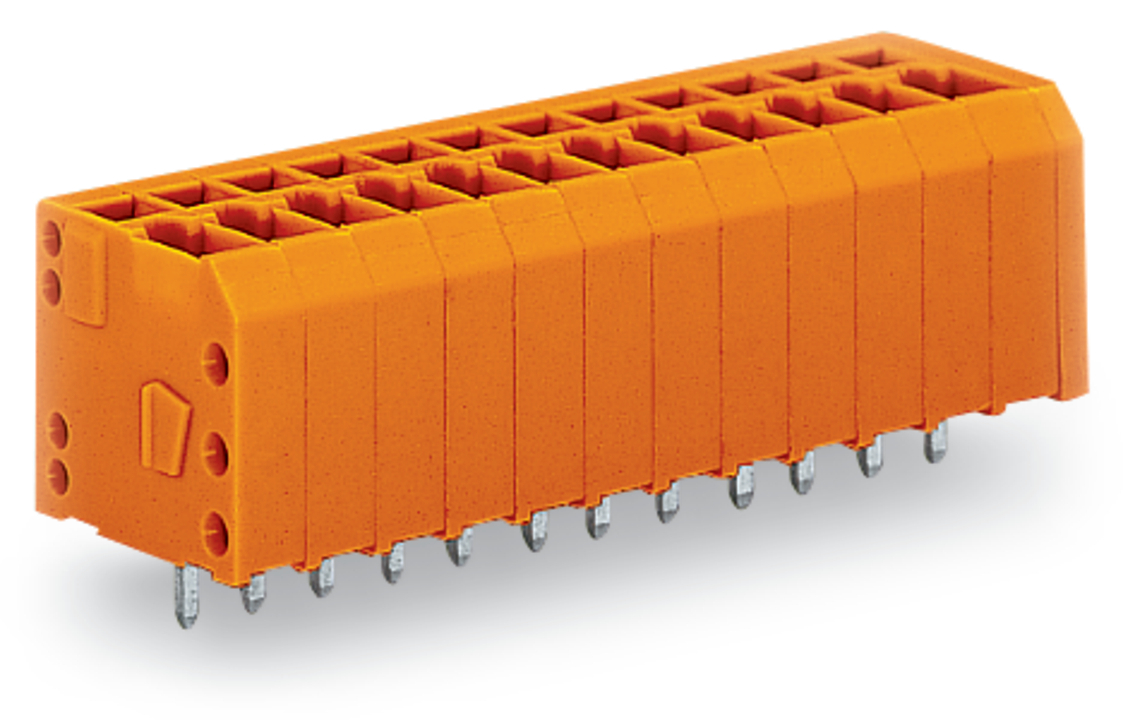

Złączka do płytek drukowanych 1,5 mm² RM 3,81 mm 12-bieg, pomarańczowa 739-342
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 739-342 |
GTIN(EAN) | 4044918301824 |
Price unit | piece |
Catalog price | 28,34 zł (23,04 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 8,37 g |
ETIM class: | Printed circuit board terminal |
Operating temperature: | -60 - 105 °C |
Material insulation body: | Thermoplastic |
Housing colour: | Orange |
Rated current In: | 17.5 A |
Material connection surface: | Tin |
Rated surge voltage: | 4 kV |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 320 V |
Pollution degree: | 2 |
Connection type PCB: | Soldering connection |
Connection type conductor: | Spring clamp connection |

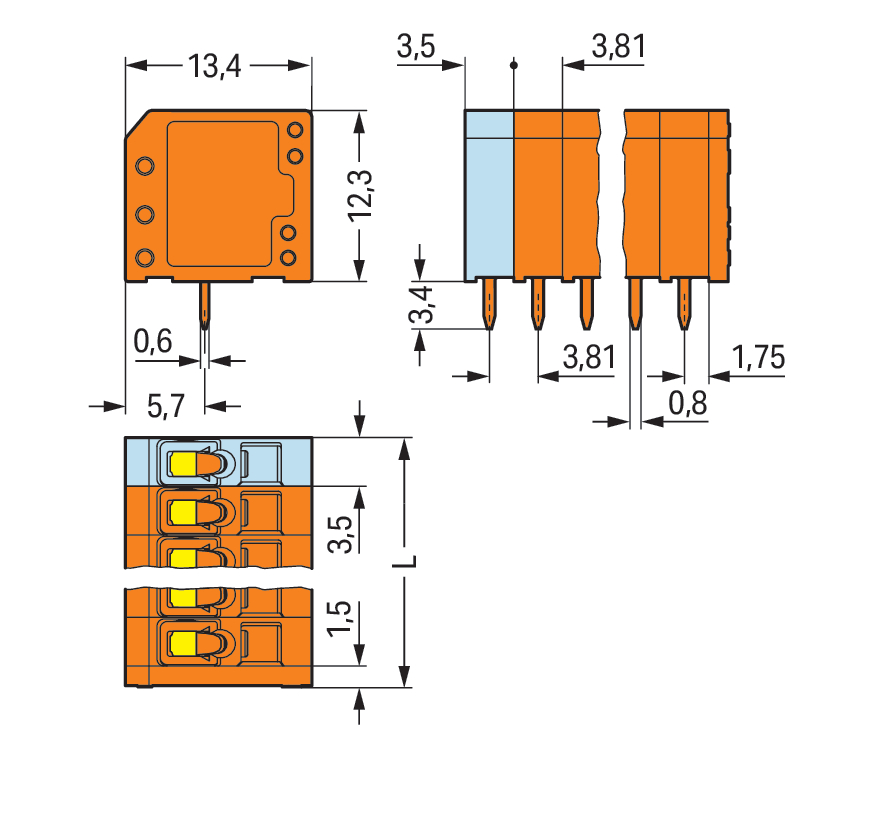

Length pin: | 3.4 mm |
Modular spacing connections: | 3.81 mm |
Type of banding: | None |
Over voltage category: | III |
Height: | 12.3 mm |
Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Type of fastening: | Solder |
Number of levels: | 1 |
Angle PCB/conductor connection: | 90° (upwards vertical) |
Number of electrical connections: | 12 |
