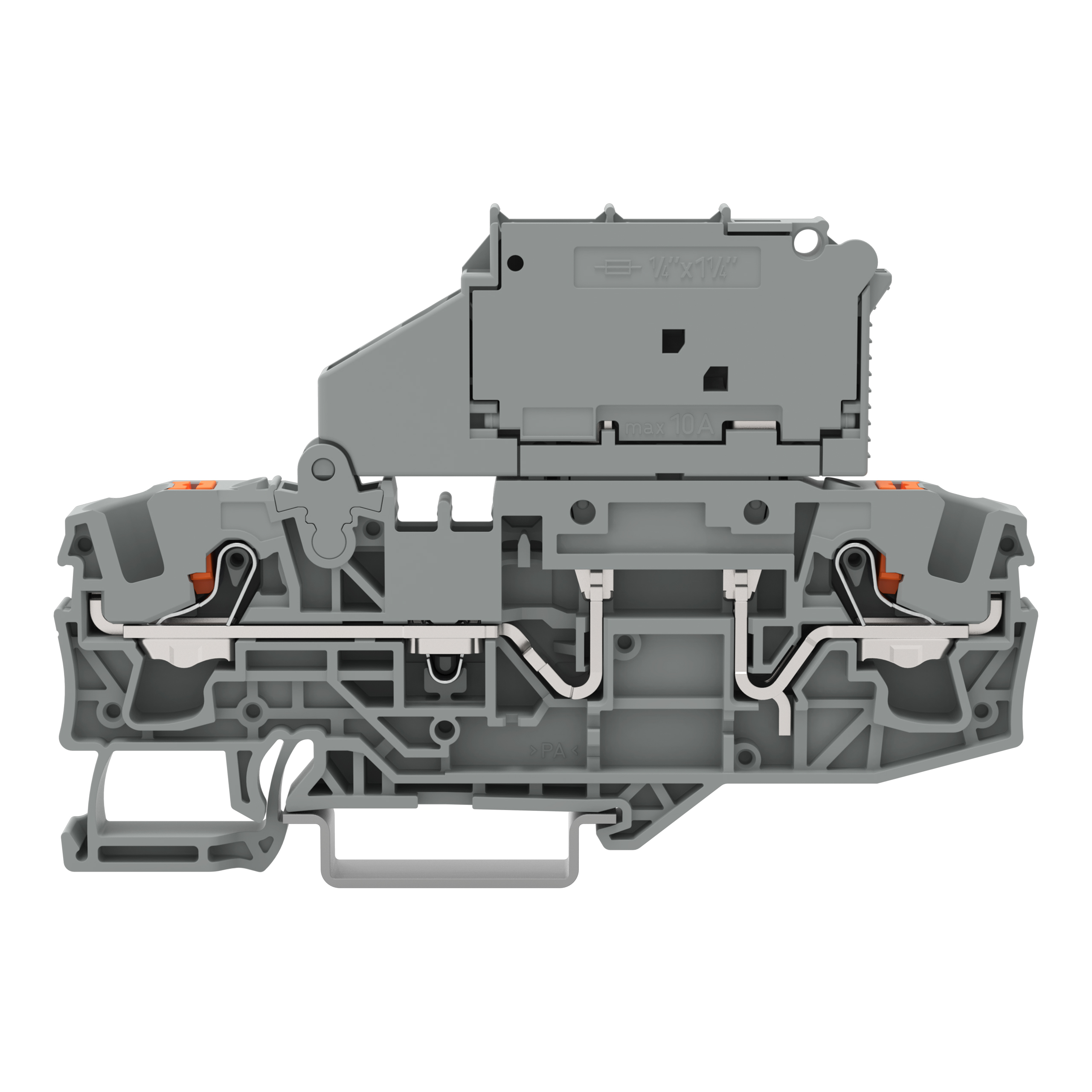

Złączka bezpiecznikowa 2-przewodowa z uchylną podstawką bezpiecznika ze ścianką końcową, szary 2206-1631/1099-836
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2206-1631/1099-836 |
| GTIN(EAN) | 4066966306224 |
| Price unit | piece |
| Catalog price | 90,95 zł (73,94 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złączka bezpiecznikowa 2-przewodowa; z uchylną podstawką bezpiecznika; ze ścianką końcową; do aparatowej wkładki bezpiecznikowej ¼" x 1¼"; z przyciskami; z sygnalizacją przepalenia wkładki przez LED; 230 V; na szynę TS 35 x 15 i 35 x 7,5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 29,39 g |
| ETIM class: | Fuse terminal block |
| Material insulation body: | Thermoplastic |
| Operating temperature: | 105 - 105 °C |
| Height: | 96.3 mm |
| Connectable conductor cross section solid-core: | 1 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
| Voltage type for defect indication: | AC |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Rated current In: | 10 A |
| Supply voltage for defect-indication: | 230 - 230 V |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Number of levels: | 1 |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
| Colour: | Grey |
| Width: | 10.4 mm |
| Rated voltage: | 800 V |
| Type of fuse insert: | Other |
| Depth: | 59 mm |
| Type of fuse holder: | Swivelling |
| Type of indication element for defect indication: | LED |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-04-04 14:10:35 |
| Files to download: | |
| External links: |
