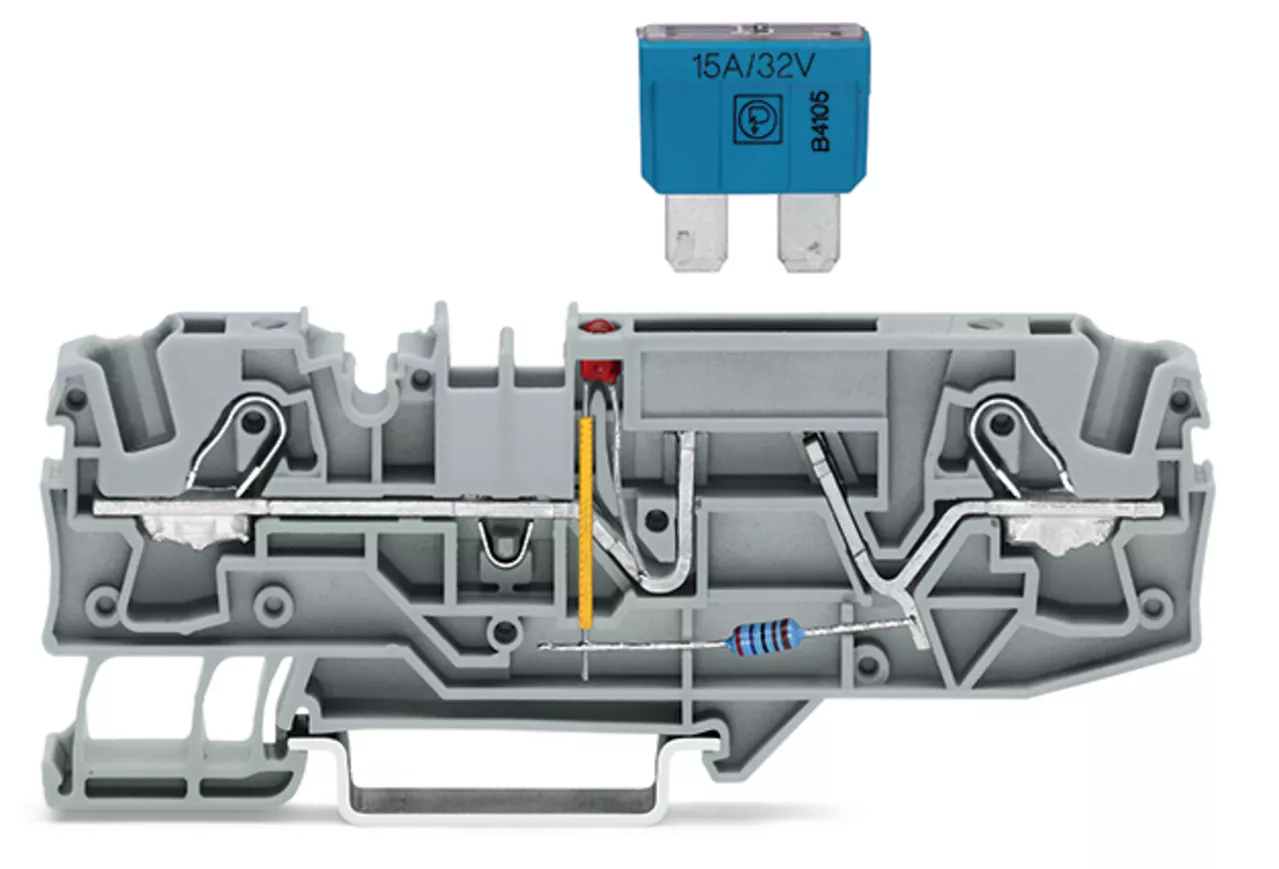

Złączka bezpiecznikowa 2-przewodowa do płaskich bezpieczników samochodowych, szary 2206-1681/1000-429
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2206-1681/1000-429 |
GTIN(EAN) | 4066966372809 |
Price unit | piece |
Catalog price | 73,75 zł (59,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złączka bezpiecznikowa 2-przewodowa; do płaskich bezpieczników samochodowych; z możliwością pomiaru; z przyciskami; z sygnalizacją przepalenia wkładki przez LED; 12 V; na szynę TS 35 x 15 i 35 x 7,5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 118,1 g |
ETIM class: | Fuse terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 96.3 mm |
Connectable conductor cross section solid-core: | 1 - 10 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 6 mm² |
Voltage type for defect indication: | AC |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 25 A |
Supply voltage for defect-indication: | 12 - 12 V |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
Colour: | Grey |
Width: | 7.5 mm |
Rated voltage: | 500 V |
Type of fuse insert: | Blade fuse |
Depth: | 32.9 mm |
Type of fuse holder: | Pluggable |
Type of indication element for defect indication: | LED |
