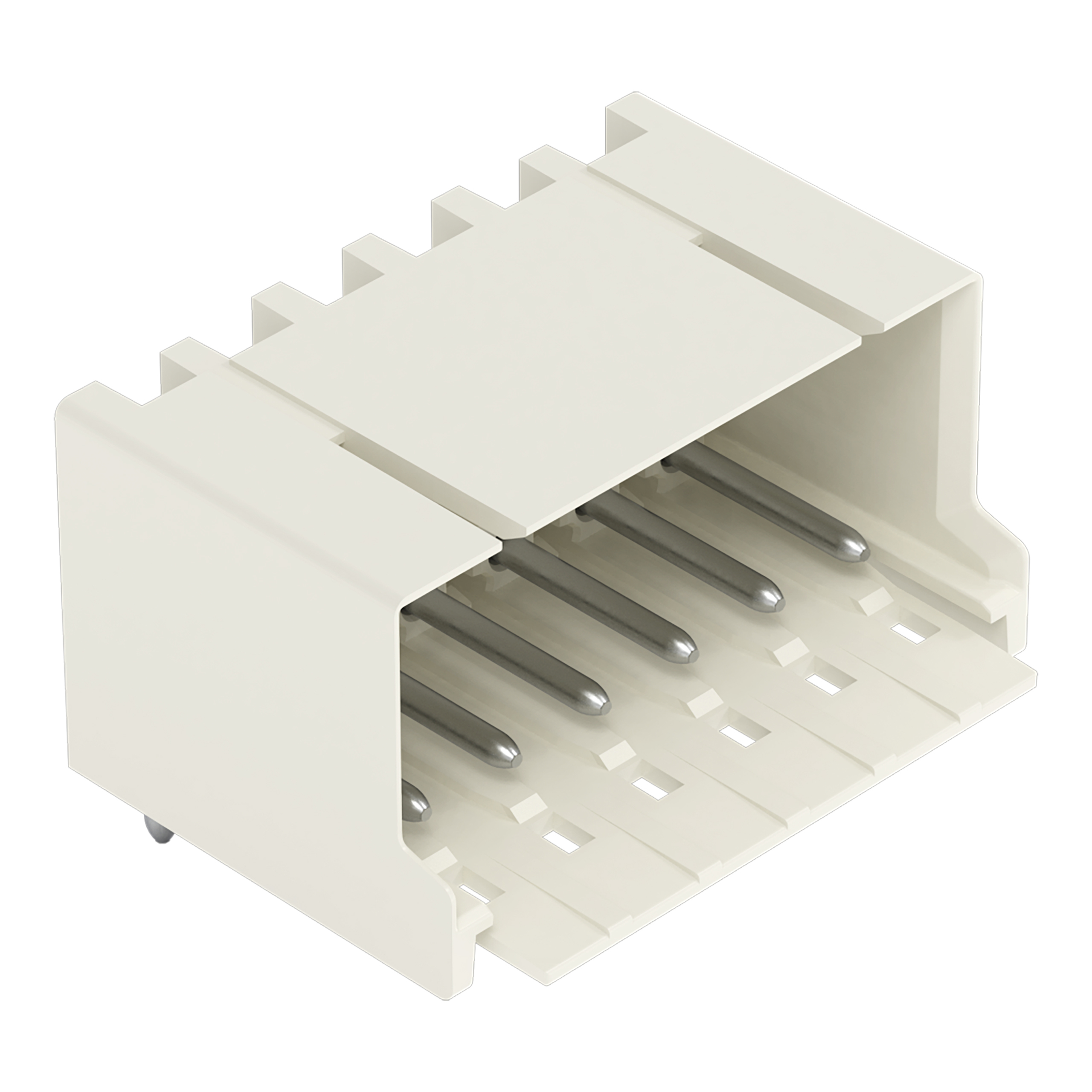

Wtyk THT pin lutowniczy Ø 1 mm konstrukcja kątowa, jasnoszary 2091-1426
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 2091-1426 |
| GTIN(EAN) | 4050821161110 |
| Price unit | piece |
| Catalog price | 7,47 zł (6,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk THT; pin lutowniczy Ø 1,0 mm; konstrukcja kątowa; raster 3,5 mm; 6-bieg.; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,23 g |
| ETIM class: | Printed circuit board connector |
| Operating temperature: | -60 - 100 °C |
| Type of connection: | Flexible PCB-connector |
| Angle PCB/contact: | 0°/180° (horizontal) |
| Contact type: | Pin |
| Type of fastening: | Solder |
| Type of PCB fastening: | Connecting contact |
| Rated current In: | 10 A |
| Type of electric connection: | Soldering connection |
| Type of banding: | None |
| Over voltage category: | III |
| Rated surge voltage: | 2.5 kV |
| Material insulation body: | Thermoplastic |
| Housing colour: | Grey |
| Modular spacing contacts: | 3.5 mm |
| Connector model: | Free connector |
| Suitable for PCB thickness: | 2 mm |
| Pollution degree: | 2 |
| Material of contact surface: | Tin |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 160 V |
| Number of poles: | 6 |
| Number of plug-in contact rows: | 1 |
| Modular spacing connections: | 3.5 mm |
| Length pin: | 3.6 mm |
| Diameter connection pin: | 1 mm |
