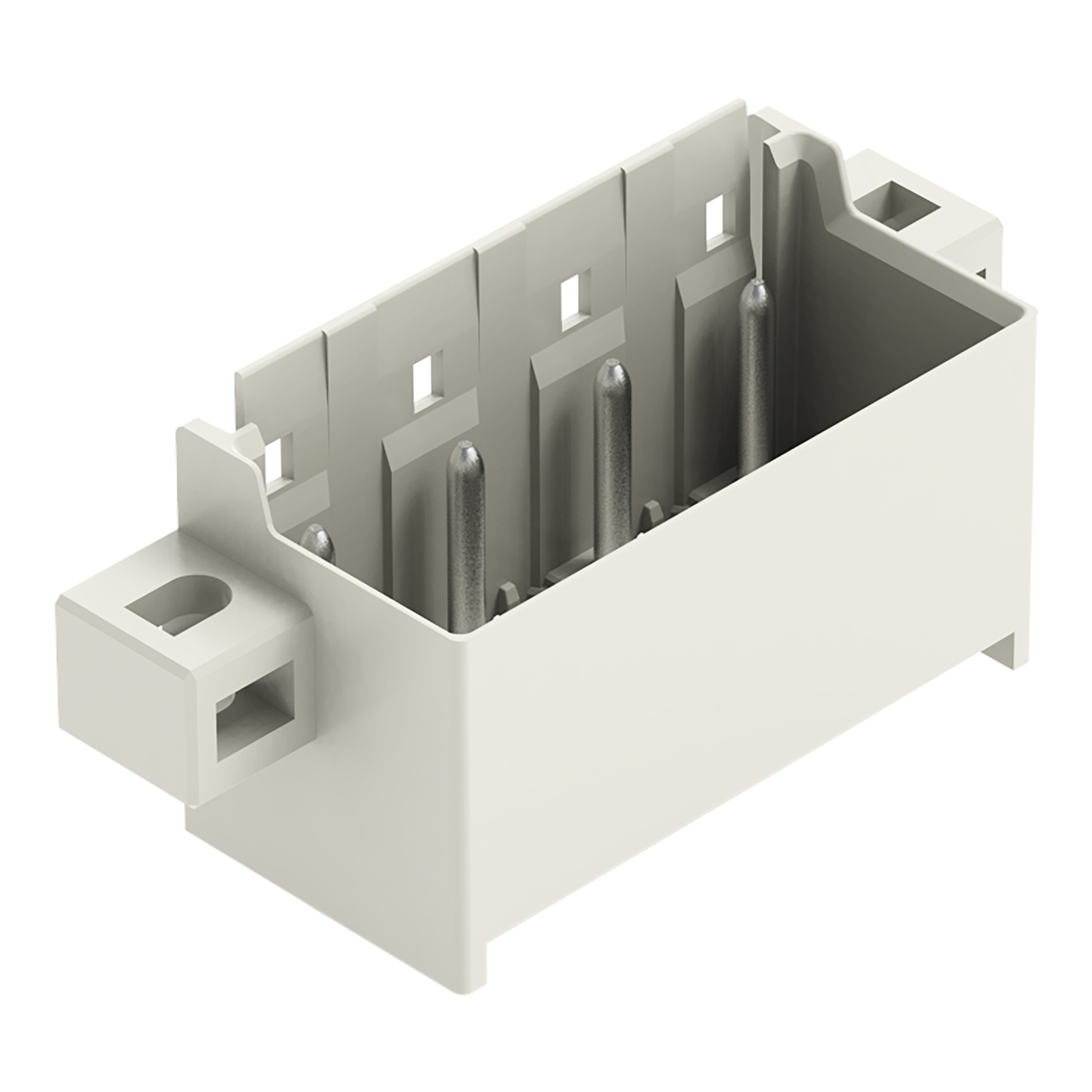

Wtyk THT Pin lutowniczy Ø 1,4 mm konstrukcja prosta, jasnoszary 2092-3404/005-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2092-3404/005-000 |
GTIN(EAN) | 4050821165873 |
Price unit | piece |
Catalog price | 9,05 zł (7,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
Promocja WAGO
Za zakup asortymentu firmy WAGO, odbierz nagrodę: zestaw złączek instalacyjnych 887-802.
Description:
wtyk THT; pin lutowniczy Ø 1,4 mm; konstrukcja prosta; kołnierz mocujący; raster 7,5 mm; 4-bieg.; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 3,49 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 90° (upwards vertical) |
Contact type: | Pin |
Type of fastening: | Solder |
Type of PCB fastening: | Connecting contact |
Rated current In: | 16 A |
Type of electric connection: | Soldering connection |
Type of banding: | None |
Over voltage category: | III |
Rated surge voltage: | 6 kV |
Material insulation body: | Thermoplastic |
Housing colour: | Grey |
Modular spacing contacts: | 7.5 mm |
Connector model: | Free connector |
Suitable for PCB thickness: | 2 mm |
Pollution degree: | 2 |
Material of contact surface: | Tin |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 630 V |
Number of poles: | 4 |
Number of plug-in contact rows: | 1 |
Modular spacing connections: | 7.5 mm |
Length pin: | 3.6 mm |
Diameter connection pin: | 1.4 mm |
