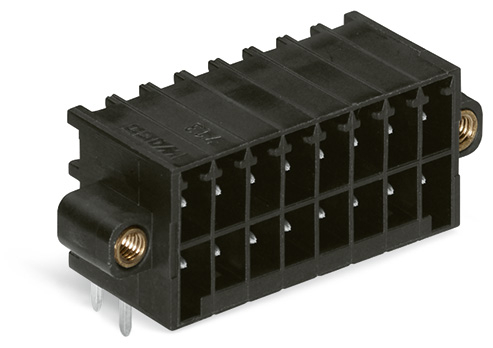

Wtyk THT, 2-rzędowy Pin lutowniczy 0,8 x 0,8 mm konstrukcja kątowa, czarny 713-1430/107-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 713-1430/107-000 |
GTIN(EAN) | 4045454809171 |
Price unit | piece |
Catalog price | 38,63 zł (31,41 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk THT 2-rzędowy; pin lutowniczy 0,8 x 0,8 mm; konstrukcja kątowa; 100% ochrona przed błędnym połączeniem; gwintowy uchwyt montażowy; raster 3,5 mm; 20-bieg.; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 6,21 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Material insulation body: | Thermoplastic |
Modular spacing contacts: | 3.5 mm |
Contact type: | Pin |
Rated current In: | 10 A |
Housing colour: | Black |
Rated surge voltage: | 2.5 kV |
Type of electric connection: | Soldering connection |
Number of poles: | 20 |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 160 V |
Pollution degree: | 2 |
Length pin: | 3.8 mm |
Modular spacing connections: | 3.5 mm |
Connector model: | Free connector |
Type of banding: | None |
Over voltage category: | III |
Inflammability class of insulation material according to with UL94: | V0 |
Number of plug-in contact rows: | 2 |
Type of fastening: | Solder |
Suitable for PCB thickness: | 1.5 mm |
Material of contact surface: | Tin |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 0°/180° (horizontal) |
