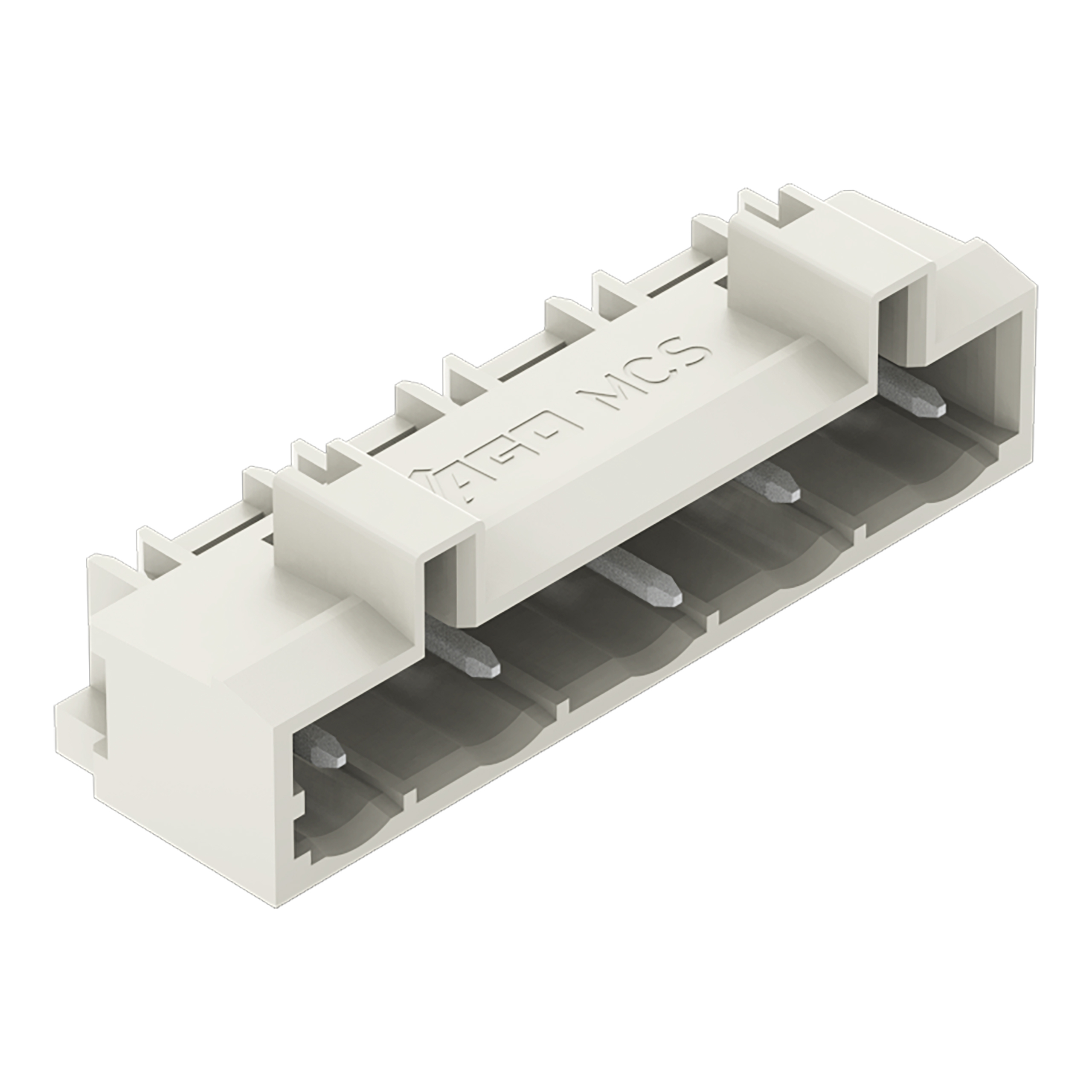

Wtyk THT 1.0 x 1.0 mm solder pin konstrukcja kątowa, jasnoszary 721-835/001-040
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 721-835/001-040 |
GTIN(EAN) | 4044918869980 |
Price unit | piece |
Catalog price | 8,87 zł (7,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk THT; pin lutowniczy 1,0 x 1,0 mm; konstrukcja kątowa; 100% ochrona przed błędnym połączeniem; wyprzedzający styk PE; raster 7,5 mm; 5-bieg.; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 2,23 g |
ETIM class: | Printed circuit board connector |
Operating temperature: | -60 - 100 °C |
Material insulation body: | Thermoplastic |
Modular spacing contacts: | 7.5 mm |
Contact type: | Pin |
Rated current In: | 12 A |
Housing colour: | Grey |
Rated surge voltage: | 6 kV |
Type of electric connection: | Soldering connection |
Number of poles: | 5 |
Type of PCB fastening: | Connecting contact |
Rated voltage: | 630 V |
Pollution degree: | 2 |
Length pin: | 3.8 mm |
Modular spacing connections: | 7.5 mm |
Connector model: | Free connector |
Type of banding: | None |
Over voltage category: | III |
Inflammability class of insulation material according to with UL94: | V0 |
Number of plug-in contact rows: | 1 |
Type of fastening: | Solder |
Suitable for PCB thickness: | 1.5 mm |
Material of contact surface: | Tin |
Type of connection: | Flexible PCB-connector |
Angle PCB/contact: | 0°/180° (horizontal) |
