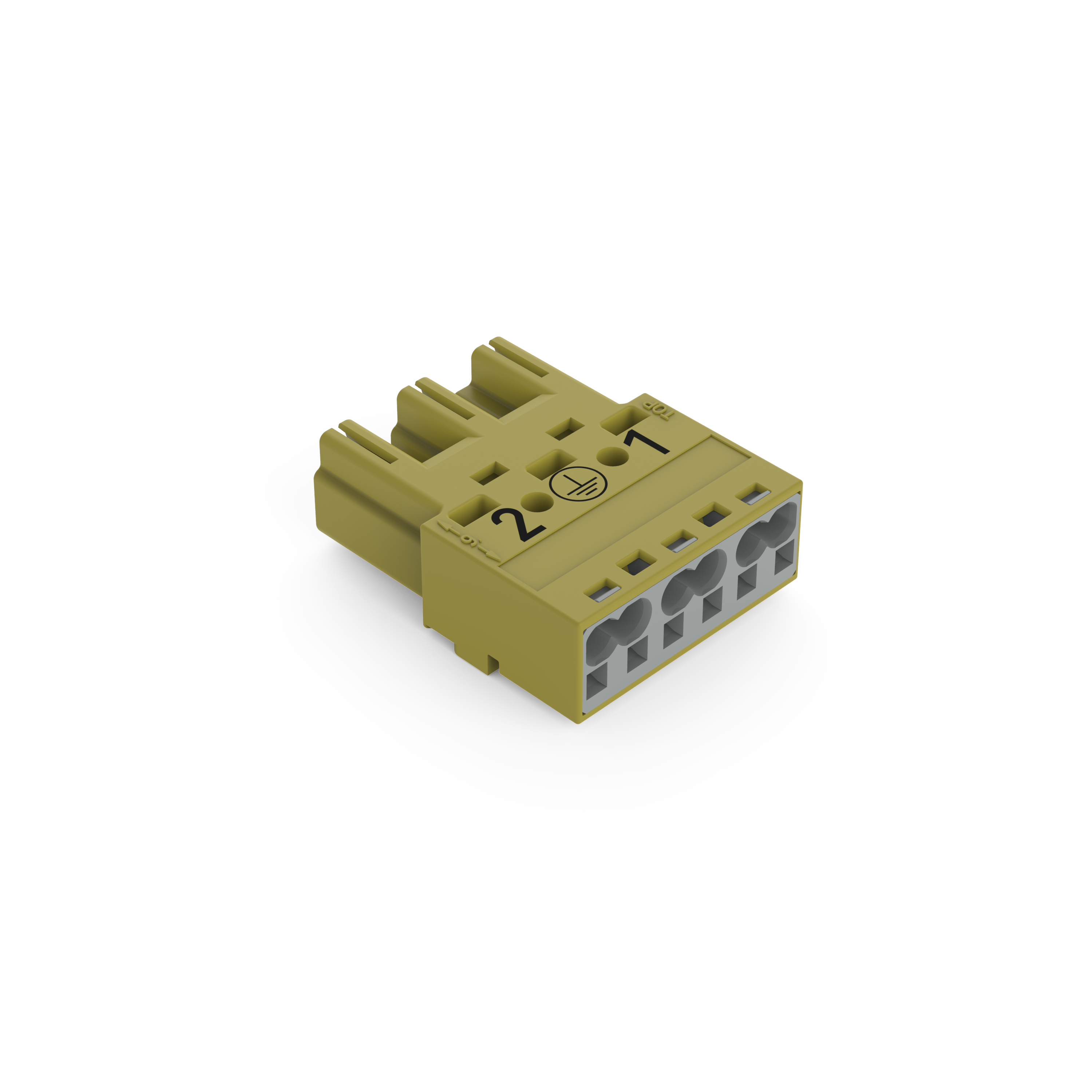

Wtyk 3-bieg., jasnozielony 770-273/073-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 770-273/073-000 |
| GTIN(EAN) | 4050821553403 |
| Price unit | piece |
| Catalog price | 14,33 zł (11,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk; 3-bieg.; kodowanie B; 4,00 mm²; jasnozielony
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,96 g |
| ETIM class: | Plug-in connector for plug-in building installation |
| Fire load: | 0.05472 kWh |
| Halogen free: | no |
| Number of connections per pole: | 2 |
| Rated surge voltage: | 4 kV |
| Model: | Plug |
| Number of poles: | 3 |
| Type of locking: | Separate |
| Rated current: | 25 A |
| Rated voltage: | 250 V |

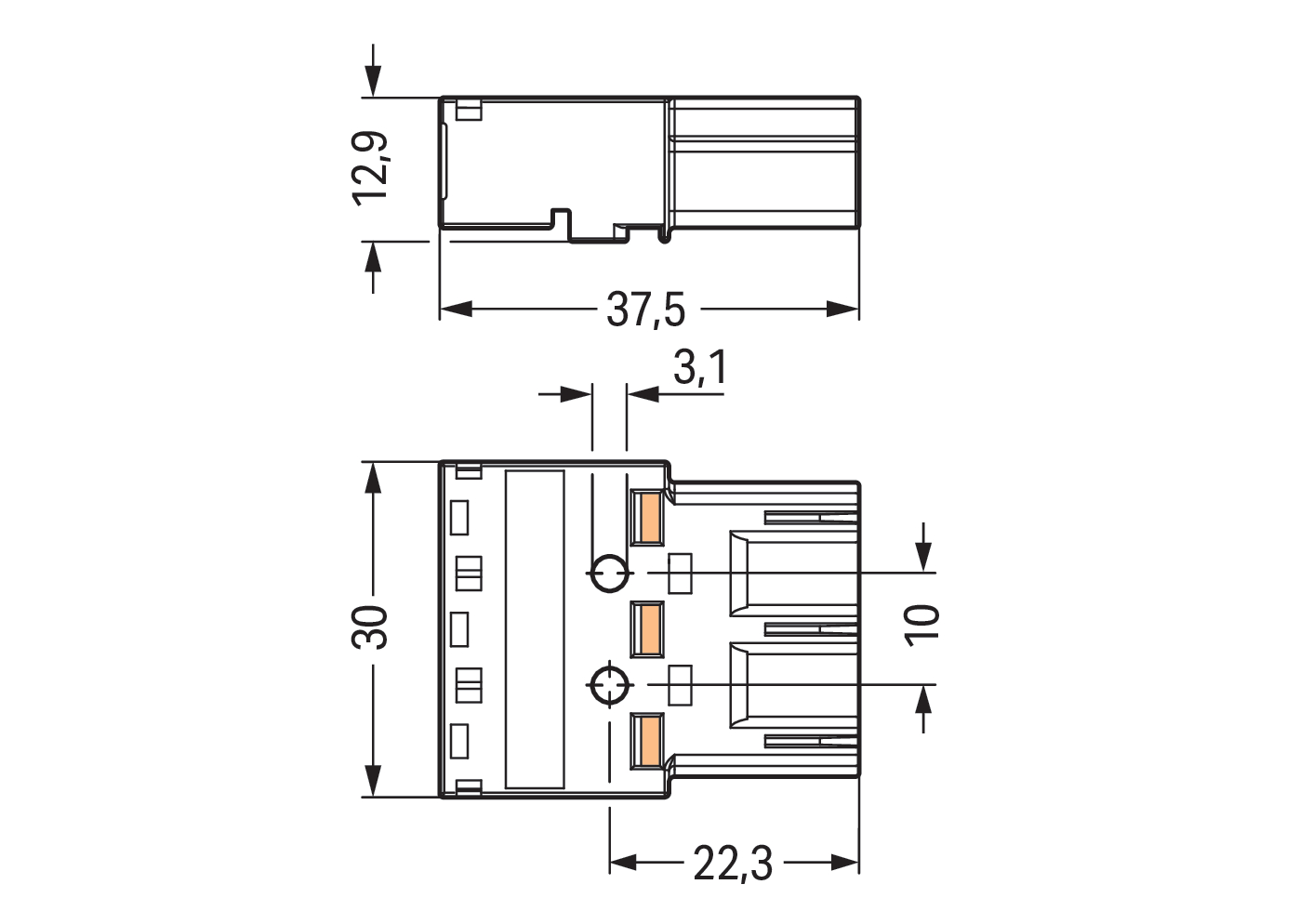

| Length: | 37.5 mm |
| Width: | 30 mm |
| With strain relief: | no |
| Height: | 12.9 mm |
| Connection type: | Spring clamp connection |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Housing material: | Polyamide (PA) |
| Connection cross section (solid-core): | 0.5 - 4 mm² |
| Surface treatment contacts: | Tinned |
| Max. continuous temperature resistance contact part: | 85 °C |
| Mechanical coding: | yes |
| Continuity resistance: | 1 mΩ |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Green |
| Pollution degree: | 3 |
| Pole codification: | 1, 2, PE |
| Connection cross section (fine-strand): | 0.5 - 4 mm² |
