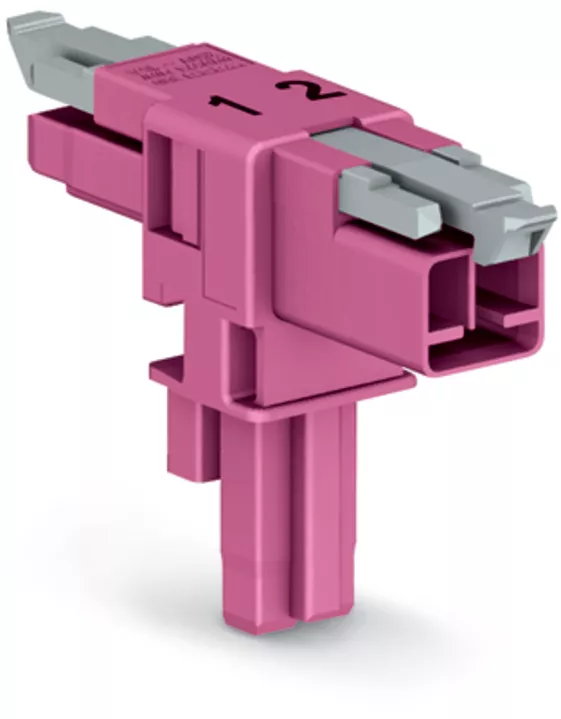

Rozgałęźnik typu T 2-bieg. kodowanie B, różowy 890-1603
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 890-1603 |
| GTIN(EAN) | 4050821560067 |
| Price unit | piece |
| Catalog price | 23,51 zł (19,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
rozgałęźnik typu T; 2-bieg.; kodowanie B; 1 wejście; 2 wyjścia; 2 zaczepy ryglujące; różowy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,92 g |
| ETIM class: | Compact distributor for plug-in building installation |
| Fire load: | 0.00639 kWh |
| Halogen free: | yes |
| Rated surge voltage: | 4 kV |
| Number of poles: | 2 |
| Type of integrated switching: | None |
| Type of locking: | Integrated in plug-in connector |
| Rated current: | 16 A |
| Rated voltage: | 250 V |

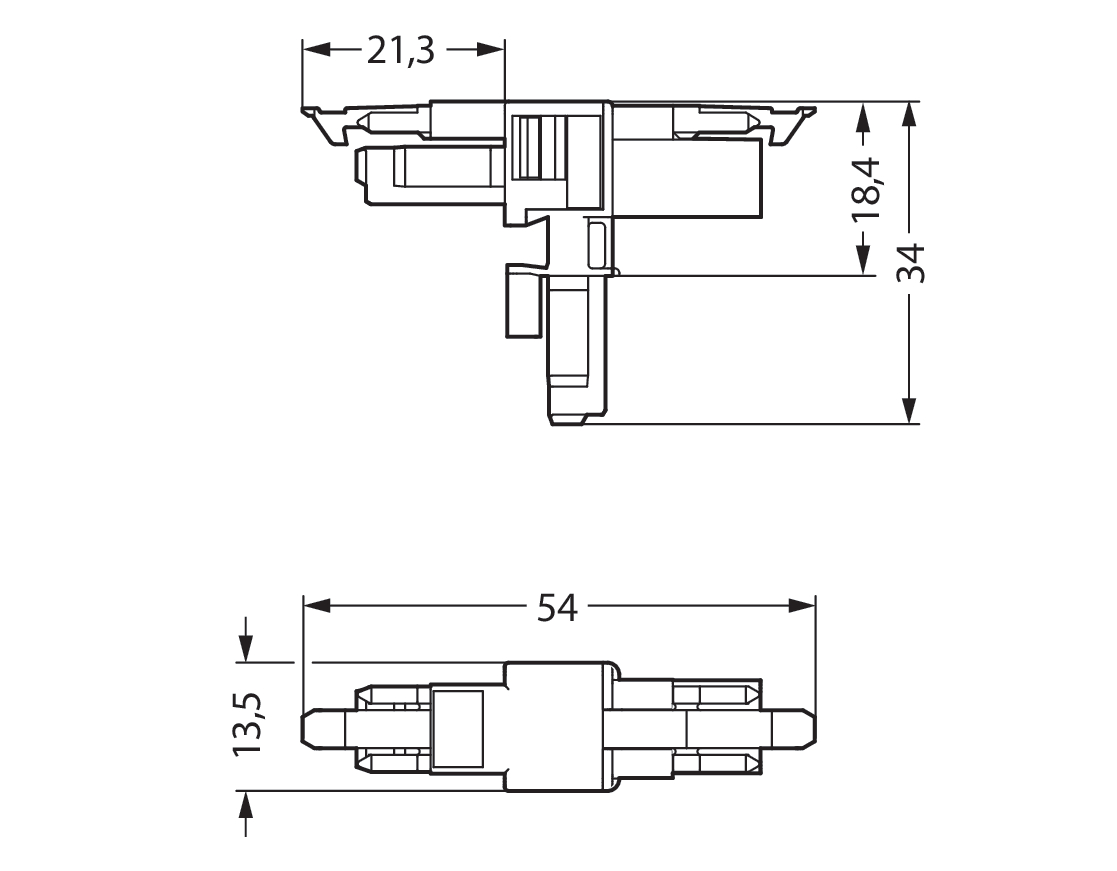

| Width: | 13.5 mm |
| Length: | 54 mm |
| Type of distributor: | T-distributor |
| Mounting possibility: | No |
| Number of inputs: | 2 |
| Height: | 34 mm |
| Max. continuous temperature resistance strain relief: | 105 °C |
| Contact material: | CuSn |
| Rated current to luminaire: | 16 A |
| Housing material: | Polyamide (PA) |
| Mechanical coding: | yes |
| Max. continuous temperature resistance contact part: | 85 °C |
| Surface treatment contacts: | Tinned |
| Continuity resistance: | 1 mΩ |
| Number of outputs: | 4 |
| Degree of protection (IP): | IP20 |
| Colour coding/contact insert: | Other |
| Pollution degree: | 3 |
| Pole codification: | 1, 2 |
| Colour of the separate adapter piece: | Without adapter piece |
