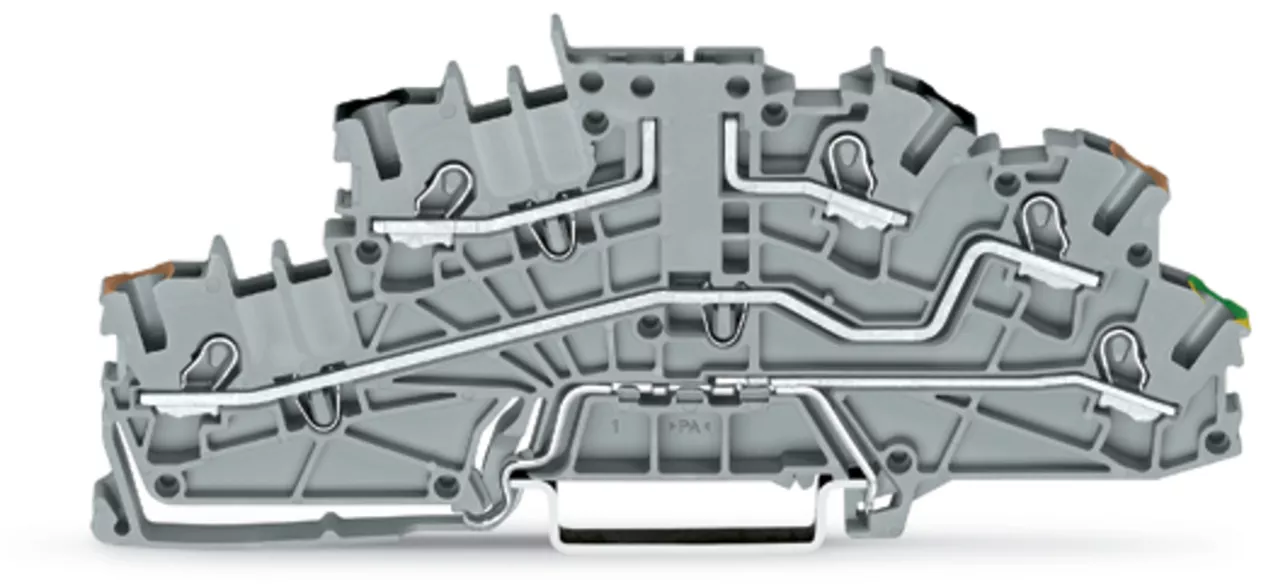

Piętrowa złączka instalacyjna z otworem montażowym 2,5 mm², szara 2003-6662
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2003-6662 |
GTIN(EAN) | 4055143987219 |
Price unit | piece |
Catalog price | 27,33 zł (22,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka instalacyjna piętrowa; z otworem montażowym; 2,5 mm²; złączka bazowa bez łącznika nożowego; L/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 19,94 g |
ETIM class: | Multi level installation terminal block |
Operating temperature: | 105 - 105 °C |
N function possible: | no |
Rated current In: | 20 A |
Height: | 110 mm |
Number of potentials: | 3 |
PE-function: | yes |
Basic colour: | Grey |
With N-disconnect slide: | no |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Width: | 5.2 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 250 V |
Depth: | 45.2 mm |
