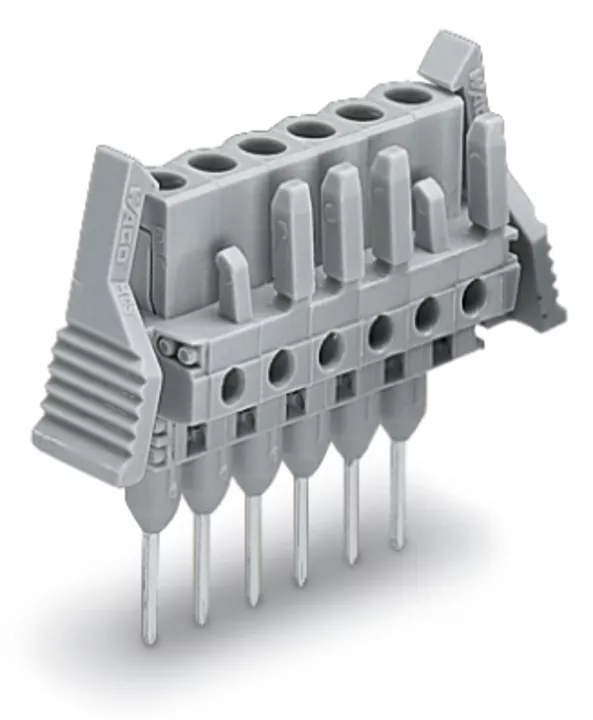

Gniazda do złączek listwowych Piny 0,6 x 1 mm konstrukcja prosta, szara 232-138/005-000/039-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 232-138/005-000/039-000 |
| GTIN(EAN) | 4044918570916 |
| Price unit | piece |
| Catalog price | 40,54 zł (32,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo do złączek listwowych; piny 0,6 x 1 mm; konstrukcja prosta; zaczep ryglujący; raster 5 mm; 8-bieg.; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,22 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 85 °C |
| Height: | 21.6 mm |
| Mounting method: | Other |
| Rated current In: | 12 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Number of poles: | 8 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 55.8 mm |
| Rated voltage: | 320 V |
| Depth: | 11.6 mm |
