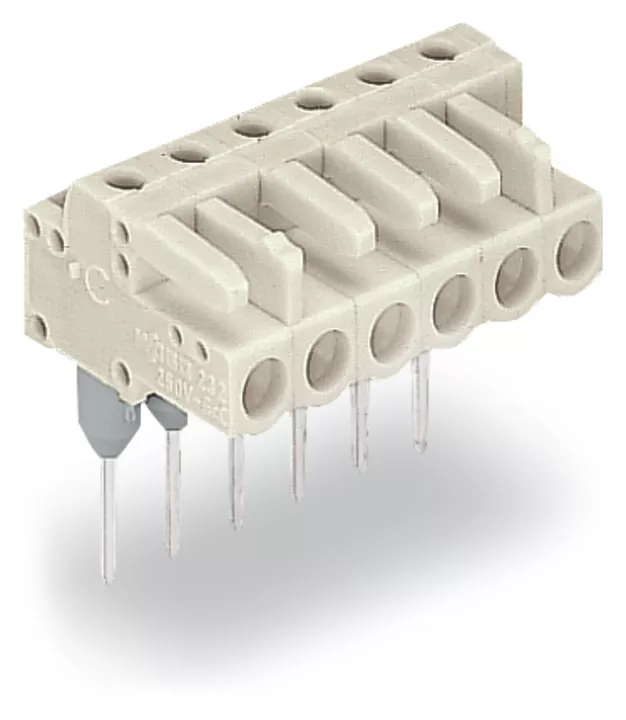

Gniazda do złączek listwowych Piny 0,6 x 1 mm konstrukcja kątowa, jasnoszara 722-237/005-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 722-237/005-000 |
GTIN(EAN) | 4044918570510 |
Price unit | piece |
Catalog price | 34,72 zł (28,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo do złączek listwowych; piny 0,6 x 1 mm; konstrukcja kątowa; 100% ochrona przed błędnym połączeniem; raster 5 mm; 7-bieg.; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 7,33 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 85 °C |

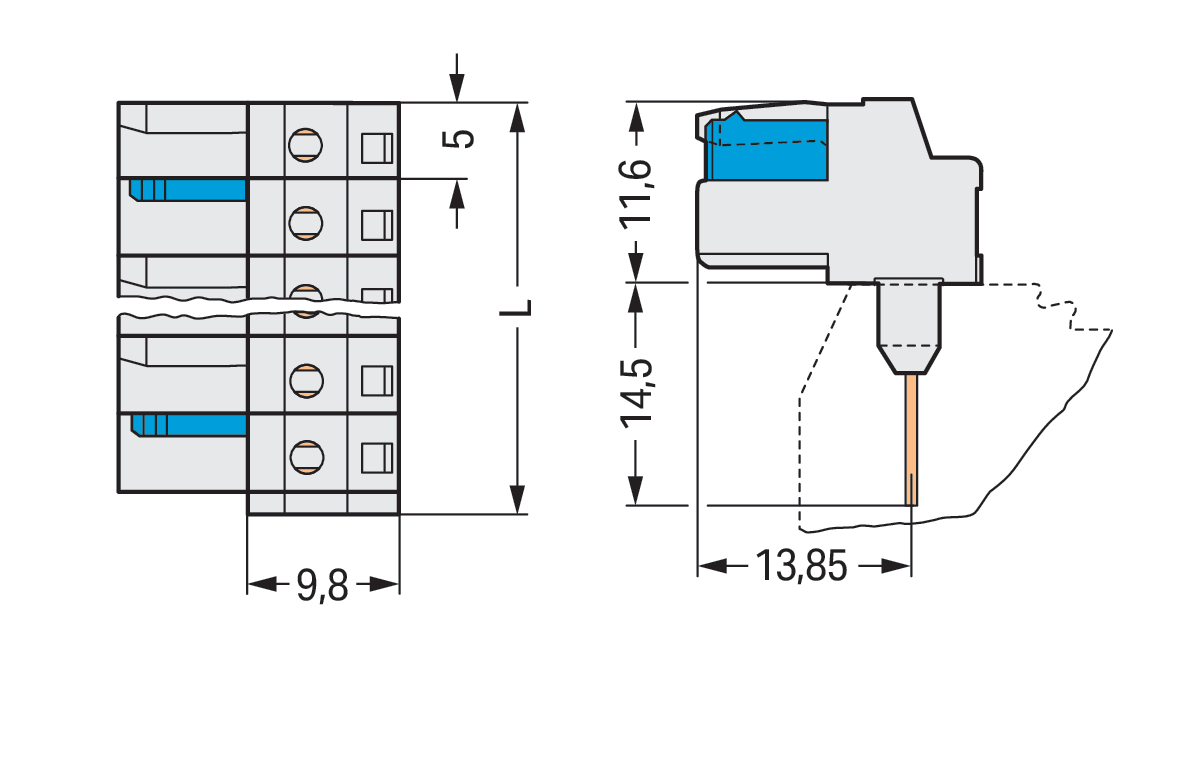

Height: | 11.6 mm |
Rated current In: | 12 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Number of poles: | 7 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 5 mm |
Rated voltage: | 320 V |
Depth: | 18.25 mm |
