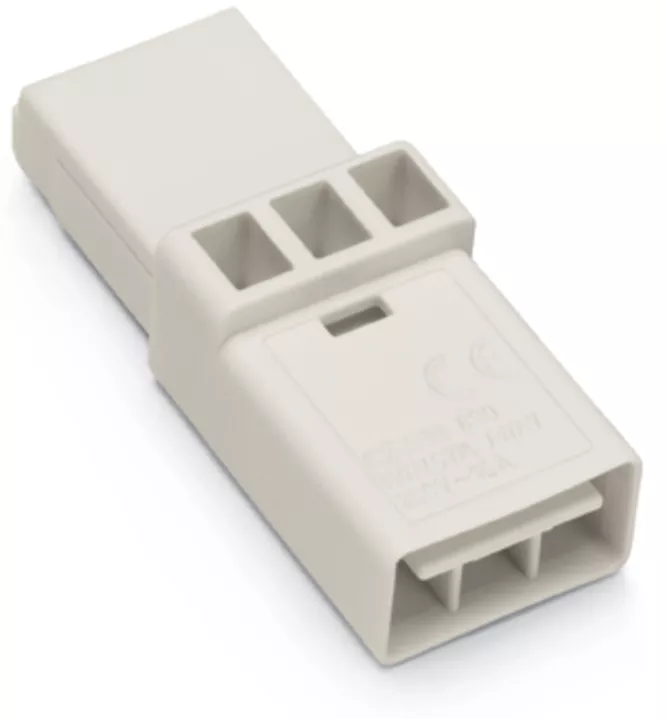

Element sprzęgający 3-bieg. kodowanie A, biały 890-653
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-653 |
GTIN(EAN) | 4050821295457 |
Price unit | piece |
Catalog price | 11,16 zł (9,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
element sprzęgający; 3-bieg.; kodowanie A; do gniazd i wtyków; biały
Additional features:
Information | Value |
---|---|
Net weight: | 3,5 g |
ETIM class: | Compact distributor for plug-in building installation |
Fire load: | 0.01639 kWh |
Halogen free: | yes |
Rated surge voltage: | 4 kV |
Number of poles: | 3 |
Type of integrated switching: | None |
Type of locking: | None |
Rated current: | 16 A |
Rated voltage: | 250 V |

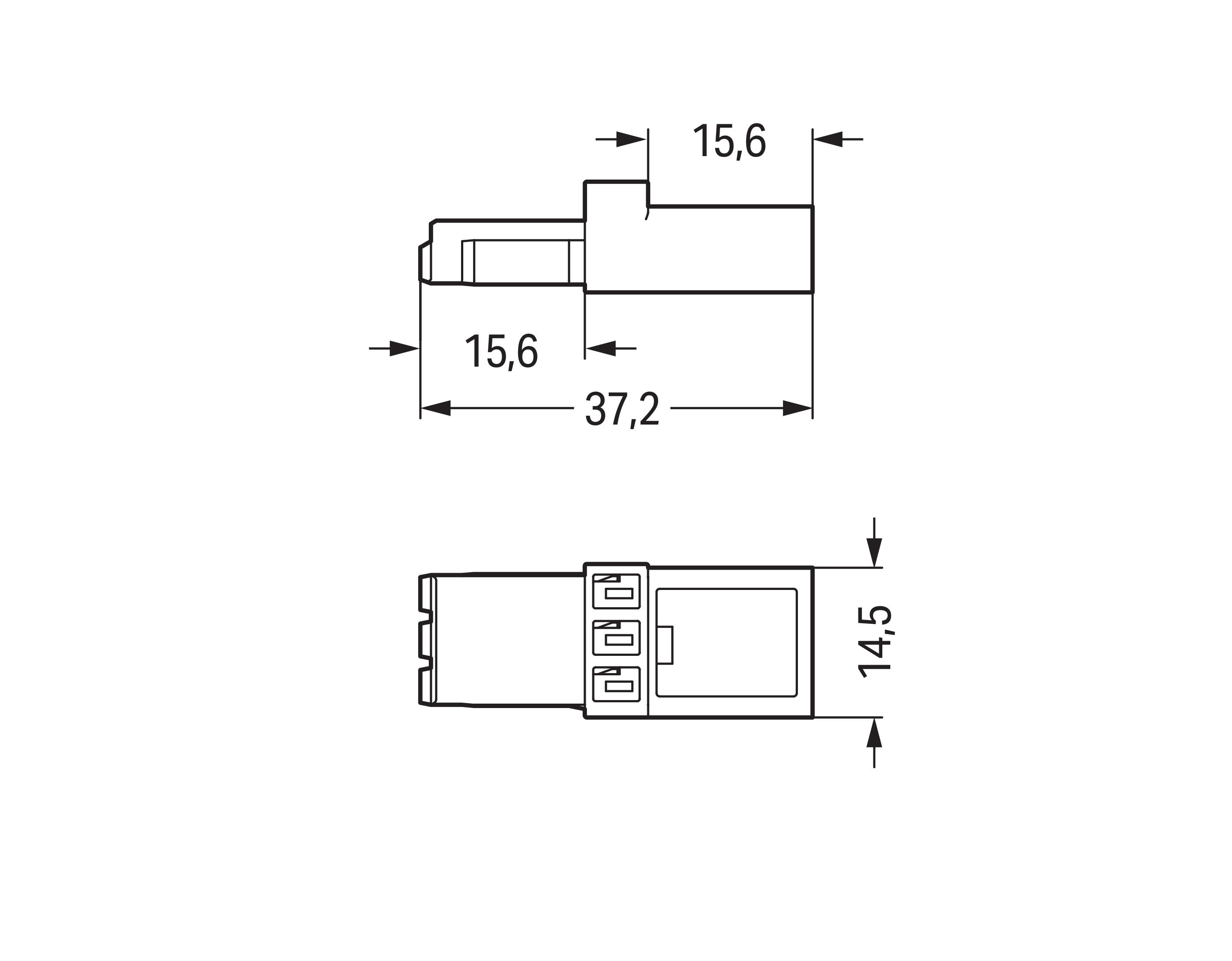

Width: | 14.5 mm |
Length: | 37.2 mm |
Type of distributor: | Intermediate coupling |
Mounting possibility: | No |
Number of inputs: | 3 |
Height: | 10.5 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Rated current to luminaire: | 16 A |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Max. continuous temperature resistance contact part: | 85 °C |
Surface treatment contacts: | Tinned |
Continuity resistance: | 1 mΩ |
Number of outputs: | 3 |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | White |
Pollution degree: | 3 |
Colour of the separate adapter piece: | Without adapter piece |
