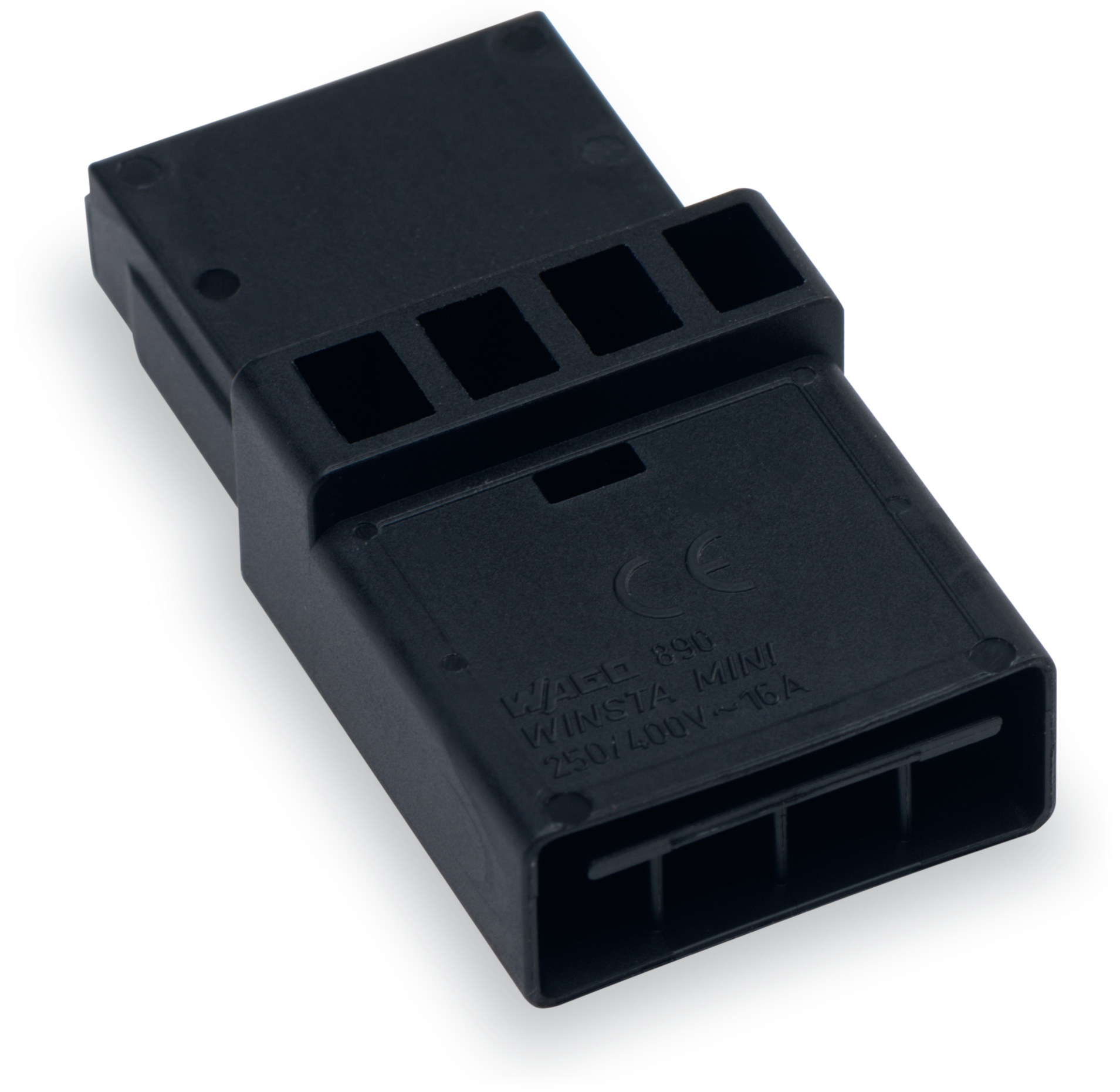

Element sprzęgający 4-bieg. kodowanie A, czarny
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 890-604 |
GTIN(EAN) | 4055143231558 |
Price unit | piece |
Catalog price | 14,27 zł (11,60 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 4,73 g |
ETIM class: | Compact distributor for plug-in building installation |
Fire load: | 0.02194 kWh |
Halogen free: | yes |
Rated surge voltage: | 4 kV |
Number of poles: | 4 |
Type of integrated switching: | None |
Type of locking: | None |
Rated current: | 16 A |
Rated voltage: | 400 V |

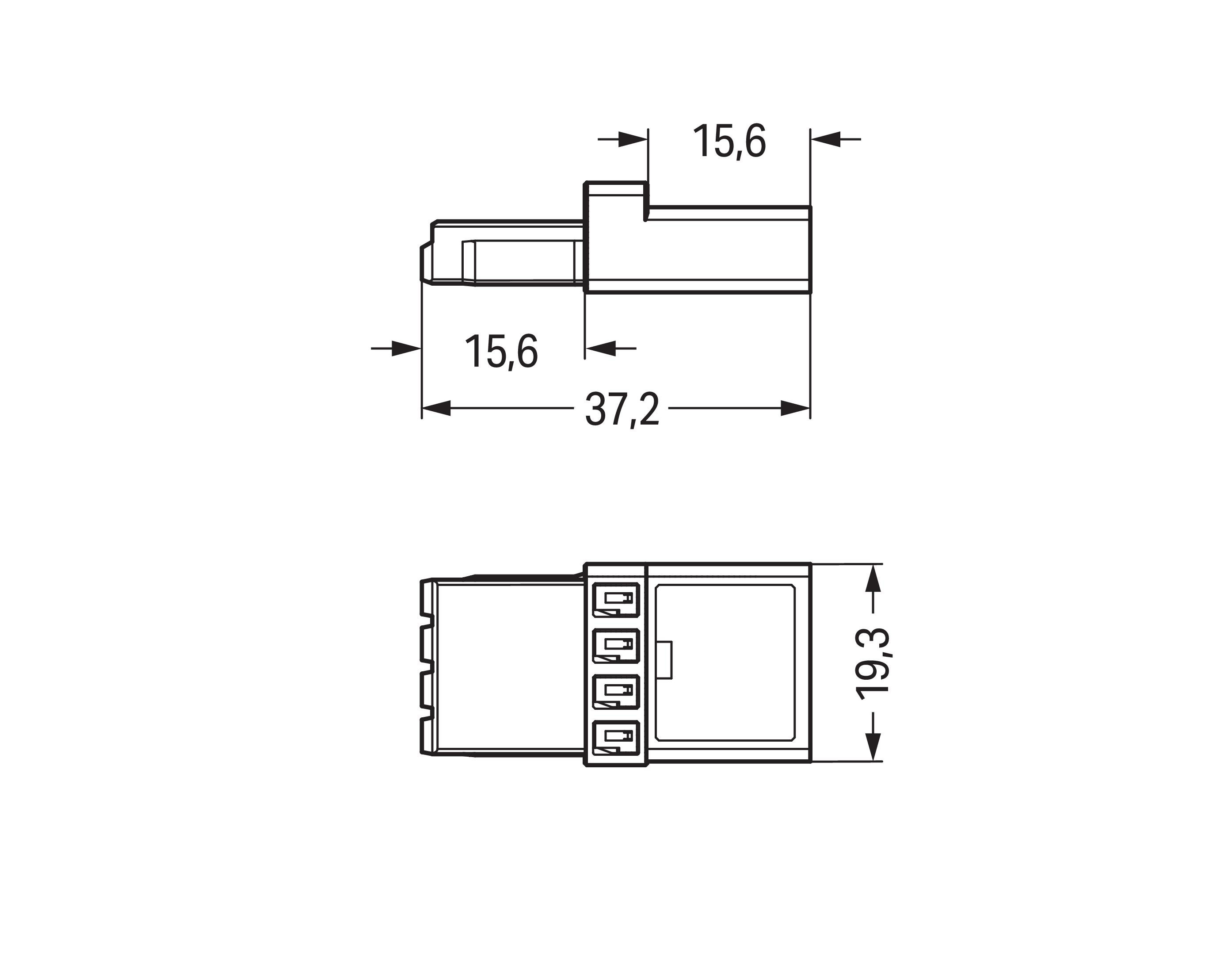

Width: | 19.3 mm |
Length: | 37.2 mm |
Type of distributor: | Intermediate coupling |
Mounting possibility: | No |
Number of inputs: | 4 |
Height: | 10.5 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Rated current to luminaire: | 16 A |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Max. continuous temperature resistance contact part: | 85 °C |
Surface treatment contacts: | Tinned |
Continuity resistance: | 1 mΩ |
Number of outputs: | 4 |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Colour of the separate adapter piece: | Without adapter piece |
