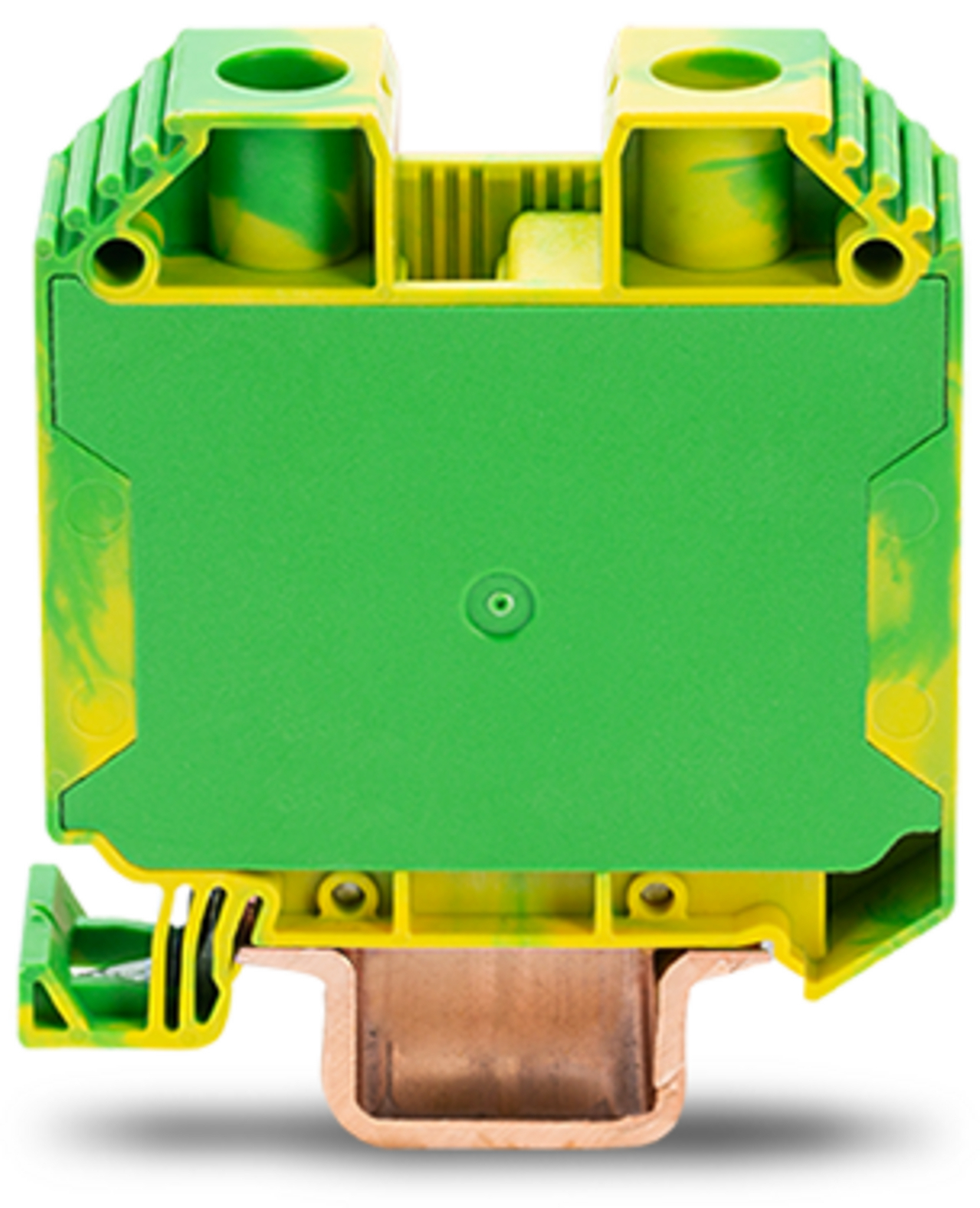

2-przewodowa złączka PE 35mm², żółto-zielony
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 883-3507 |
GTIN(EAN) | 4055143940498 |
Price unit | piece |
Catalog price | 53,54 zł (43,53 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka PE 2-przewodowa; 35 mm²; zacisk gwintowy; 35,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 85,08 g |
ETIM class: | Ground terminal block |
Operating temperature: | -40 - 120 °C |
PEN function possible: | no |
Inflammability class of insulation material according to with UL94: | V0 |
Height: | 59 mm |
Number of levels: | 1 |
Depth: | 65.5 mm |
Closing plate required: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 50 mm² |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connectable conductor cross section multi-wired: | 1.5 - 50 mm² |
Connectable conductor cross section solid-core: | 1.5 - 50 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 35 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 16.1 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:20:29 |
Files to download: | |
External links: |
