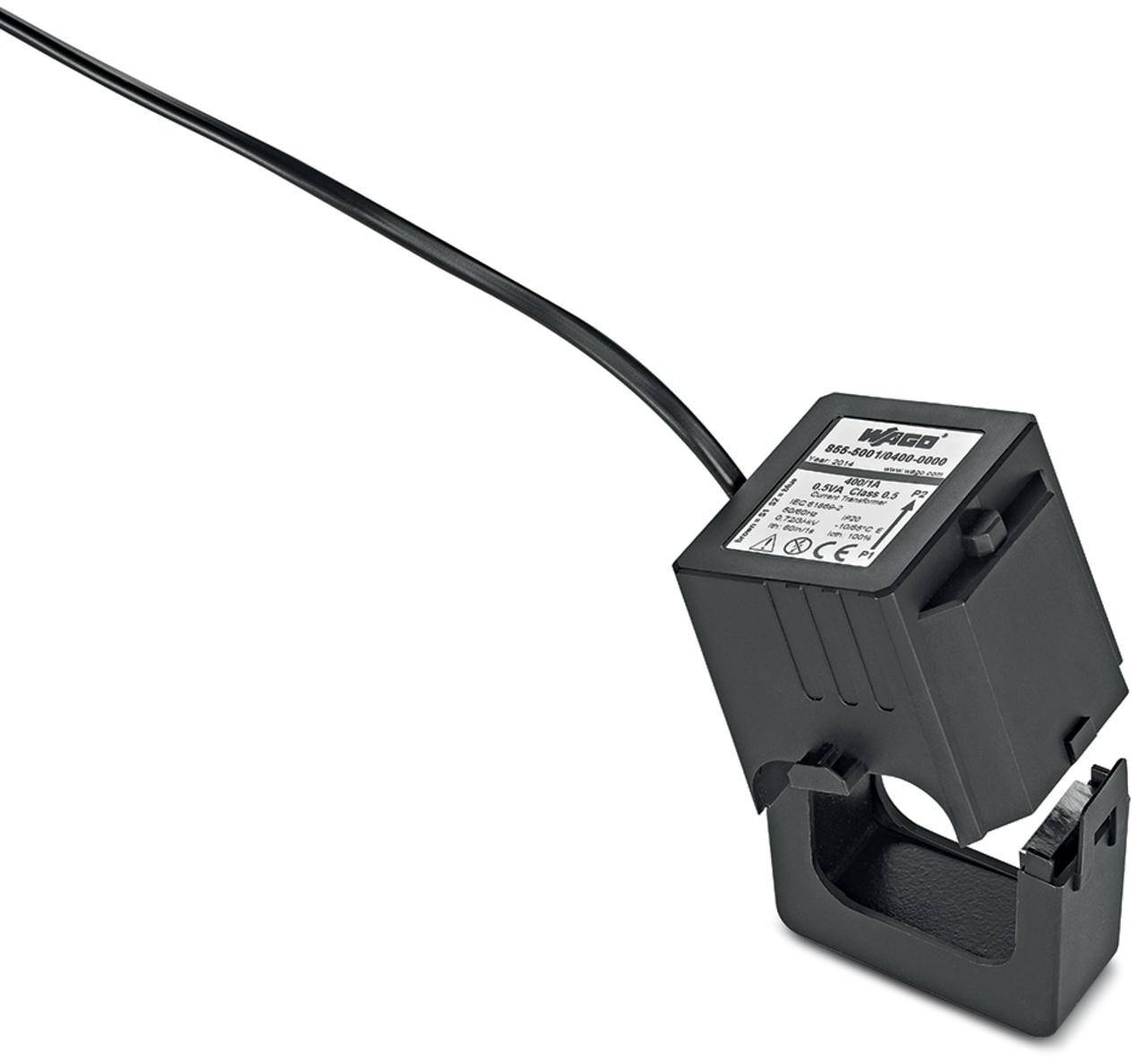

Przekładnik prądowy z dzielonym rdzeniem; znamionowy prąd pierwotny 500 A; znamionowy prąd wtórny 1 A; moc znamionowa 0,5 VA; klasa dokładności 1
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 855-5001/500-000 |
GTIN(EAN) | 4055143950480 |
Price unit | piece |
Catalog price | 869,36 zł (706,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
przekładnik prądowy z dzielonym rdzeniem; pierwotny prąd znamionowy 500 A; znamionowy prąd wtórny 1 A; moc znamionowa 0,5 VA; klasa dokładności 1
Additional features:
Information | Value |
---|---|
Net weight: | 690 g |
ETIM class: | Current transformer |
Rated primary current: | 500 A |
Rated secondary apparent power: | 0.5 VA |
Number of primary inputs: | 1 |
Rated secondary current: | 1 A |
Model: | Cable rebuilding current converter |

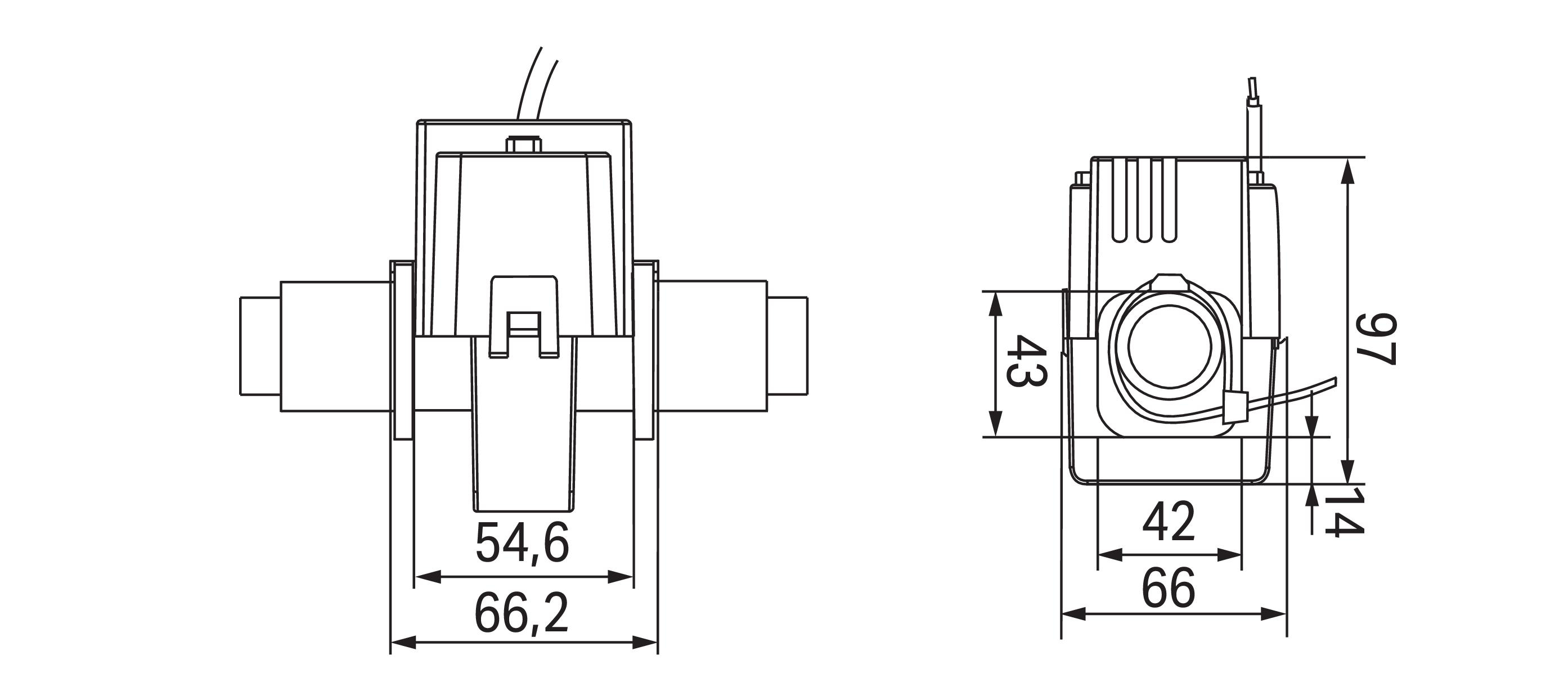

Opening diameter: | 42 mm |
Overcurrent limiting factor: | FS 5 |
Accuracy class: | 0.5 |
With copper rail: | no |
Snap mounting: | yes |
With shock protection: | yes |
