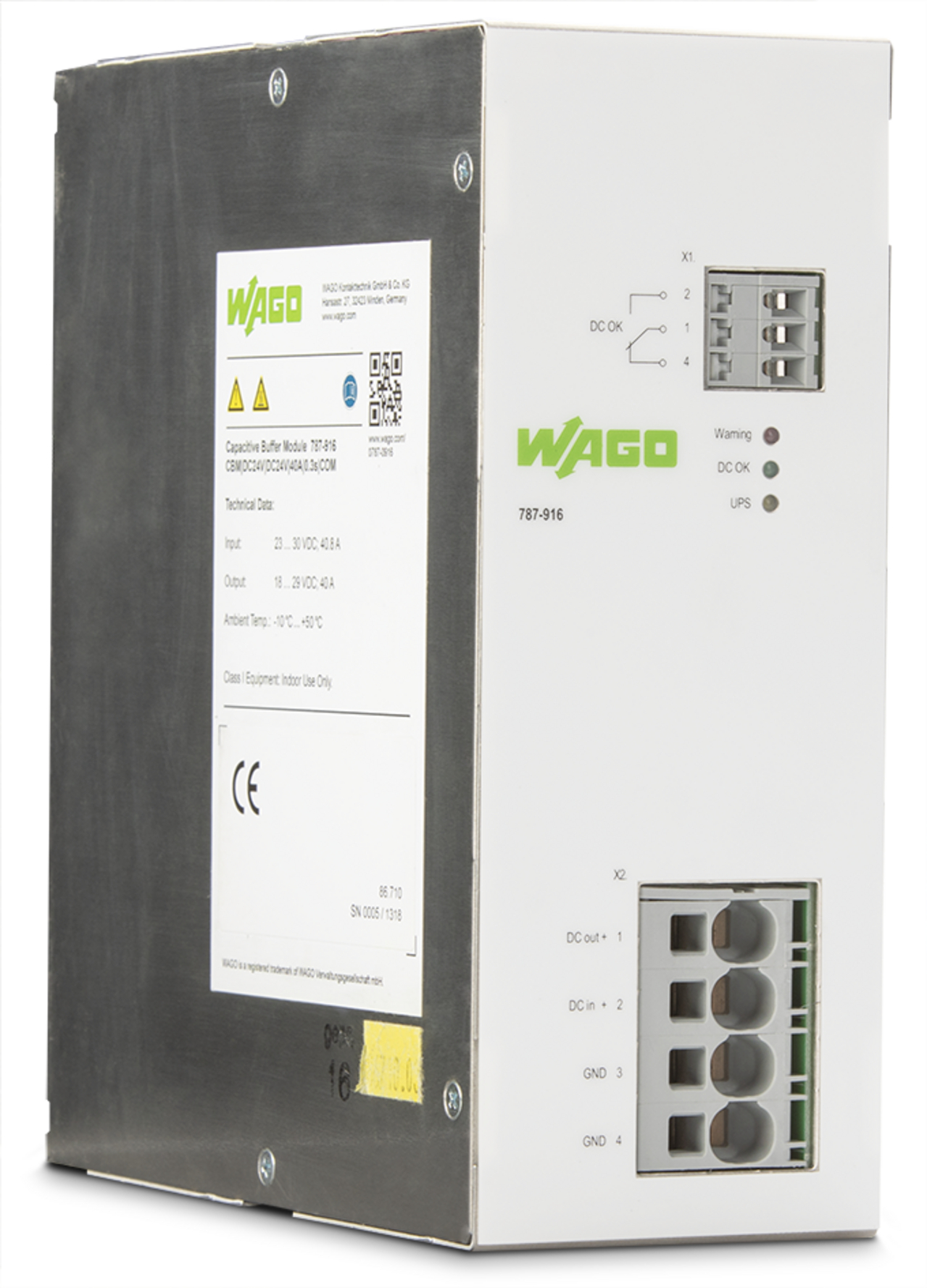

Bufor pojemnościowy, napięcie wejściowe 24 V DC, napięcie wyjściowe 24 V DC, prąd wyjściowy 40 A, czas buforowania 0,3 … 6,6 s 24 V DC
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 787-916 |
GTIN(EAN) | 4066966088281 |
Price unit | piece |
Catalog price | 1 431,72 zł (1 164,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
bufor pojemnościowy; napięcie wejściowe 24 V DC; napięcie wyjściowe 24 V DC; prąd wyjściowy 40 A; czas buforowania 0,3 … 6,6 s
Additional features:
Information | Value |
---|---|
Net weight: | 900 g |
ETIM class: | DC-power supply |
Type of electric connection: | Spring clamp connection |
1st secondary output voltage: | 20 - 29 V |
Short-circuit-proof: | no |
Width: | 68 mm |
Depth: | 162 mm |
Rail mounting possible: | yes |
Wall mounting possible: | no |
Suitable for safety functions: | no |
Output voltage stabilized: | no |
Height: | 181 mm |
Modular version: | no |
Nominal value output current 1: | 40 A |
Max. output current 1: | 40 A |
Rated supply voltage DC: | 23 - 30 V |
Degree of protection (IP): | IP20 |
Secondary voltage adjustable: | yes |
Stabilized: | no |
Voltage type (supply voltage): | DC |
Nominal value output voltage 1: | 24 V |
Direct mounting possible: | no |
Width in number of modular spacings: | 4 |
