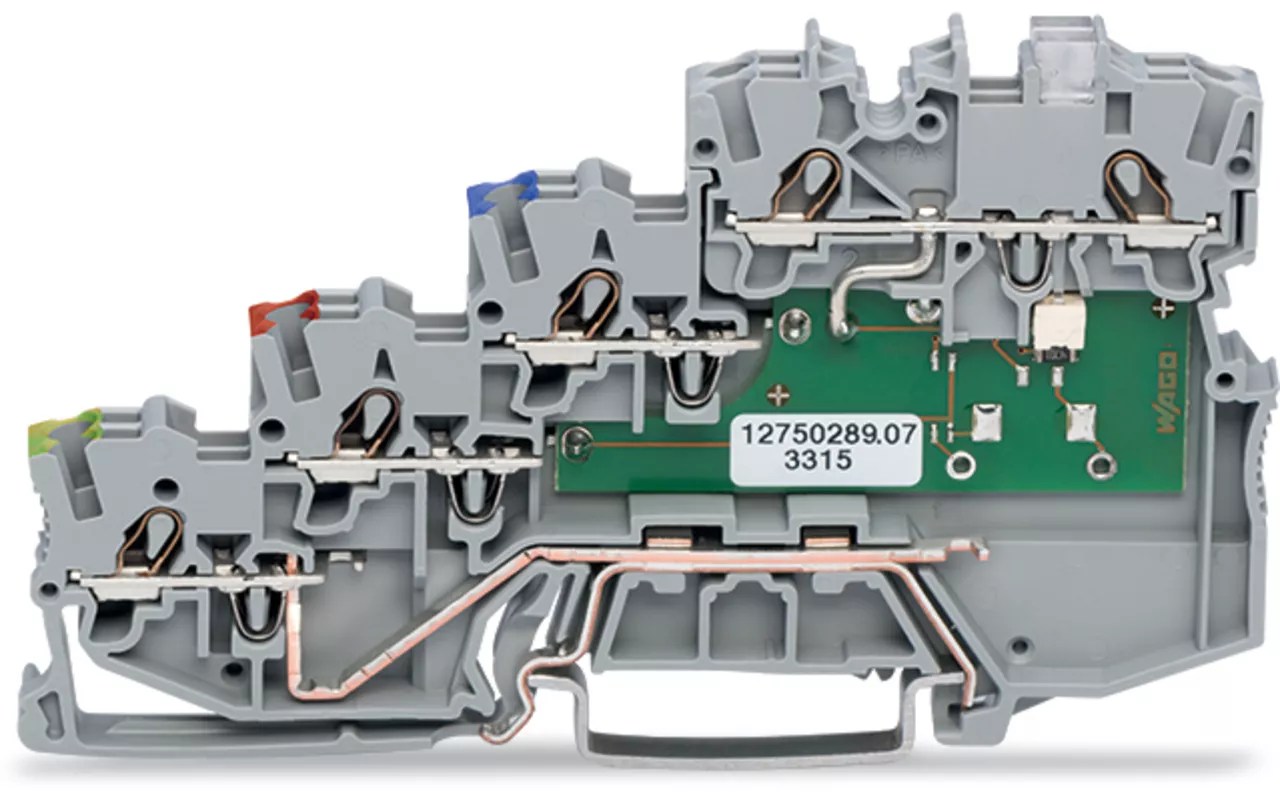

4-przewodowa złączka do czujników żółta LED do czujników typu PNP, szara 2000-5410/1102-950
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2000-5410/1102-950 |
GTIN(EAN) | 4055143452854 |
Price unit | piece |
Catalog price | 149,57 zł (121,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

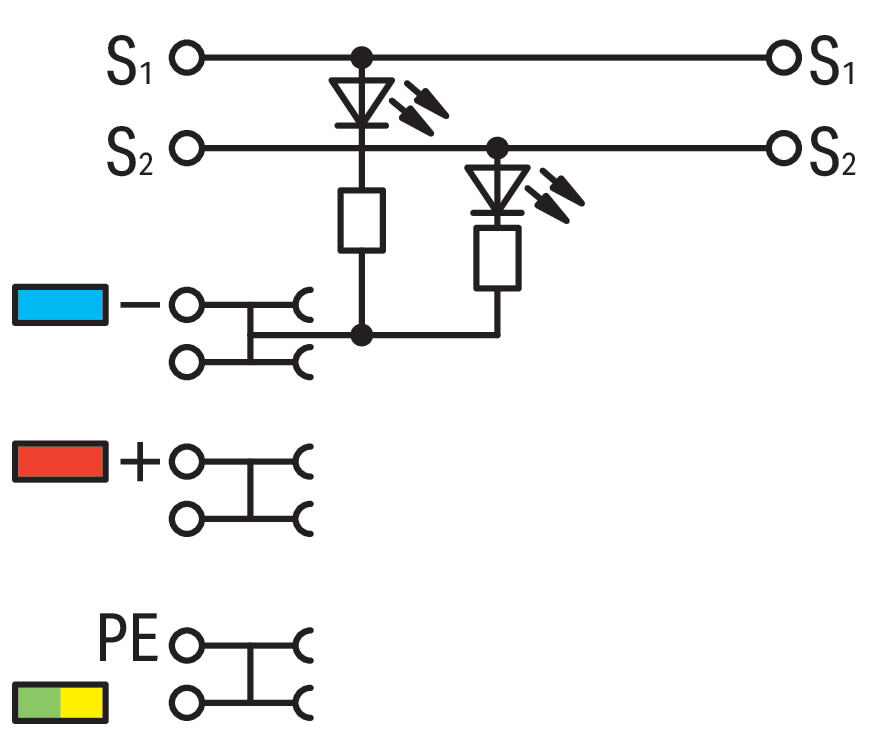

złączka sygnałowa 4-piętrowa; LED żółta; typu PNP; z przyłączem PE, bez stopki PE; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 19,41 g |
ETIM class: | Sensor/actuator terminal block |
Disconnect function: | no |
Operating temperature: | 105 - 105 °C |
Cross connectable: | yes |
Explosion-tested version 'Ex e': | no |
Rated current In: | 13.5 A |
Height: | 97.3 mm |
Number of levels: | 4 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 7 mm |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | no |
LED switching for: | PNP |
Rated voltage: | 24 V |
With PE connection: | yes |
With shield connection: | no |
Depth: | 52.4 mm |
Colour light source: | Other |
