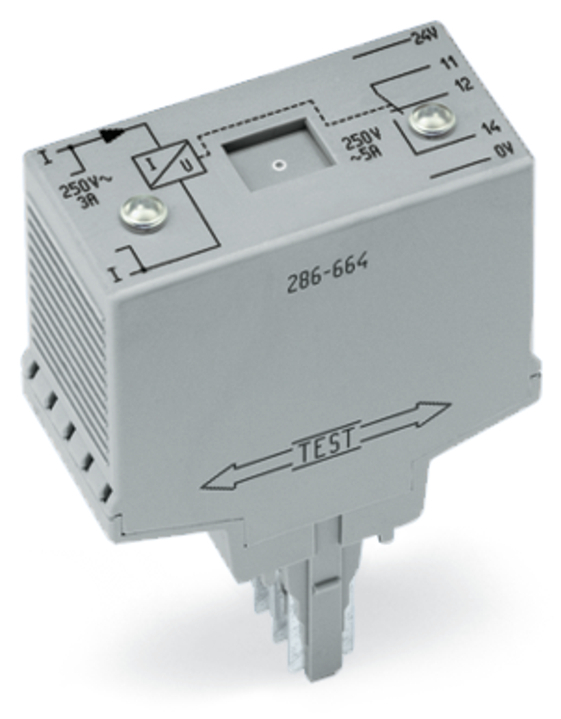

Moduł kontroli prądu; Prądy AC; Zakres kontroli 0,2 ... 3 A; 1 zestyk przełączny; jasnoszary
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 286-664 |
GTIN(EAN) | 4050821654407 |
Price unit | piece |
Catalog price | 810,82 zł (659,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
moduł kontroli prądu; prądy AC; zakres kontroli 0,2 ... 3 A; 1 zestyk przełączny; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 58 g |
ETIM class: | Current monitoring relay |
Type of electric connection: | Spring clamp connection |
Single-phase hysteresis possible: | yes |
Three-phase hysteresis possible: | no |
Contains function DC-voltage overcurrent: | yes |

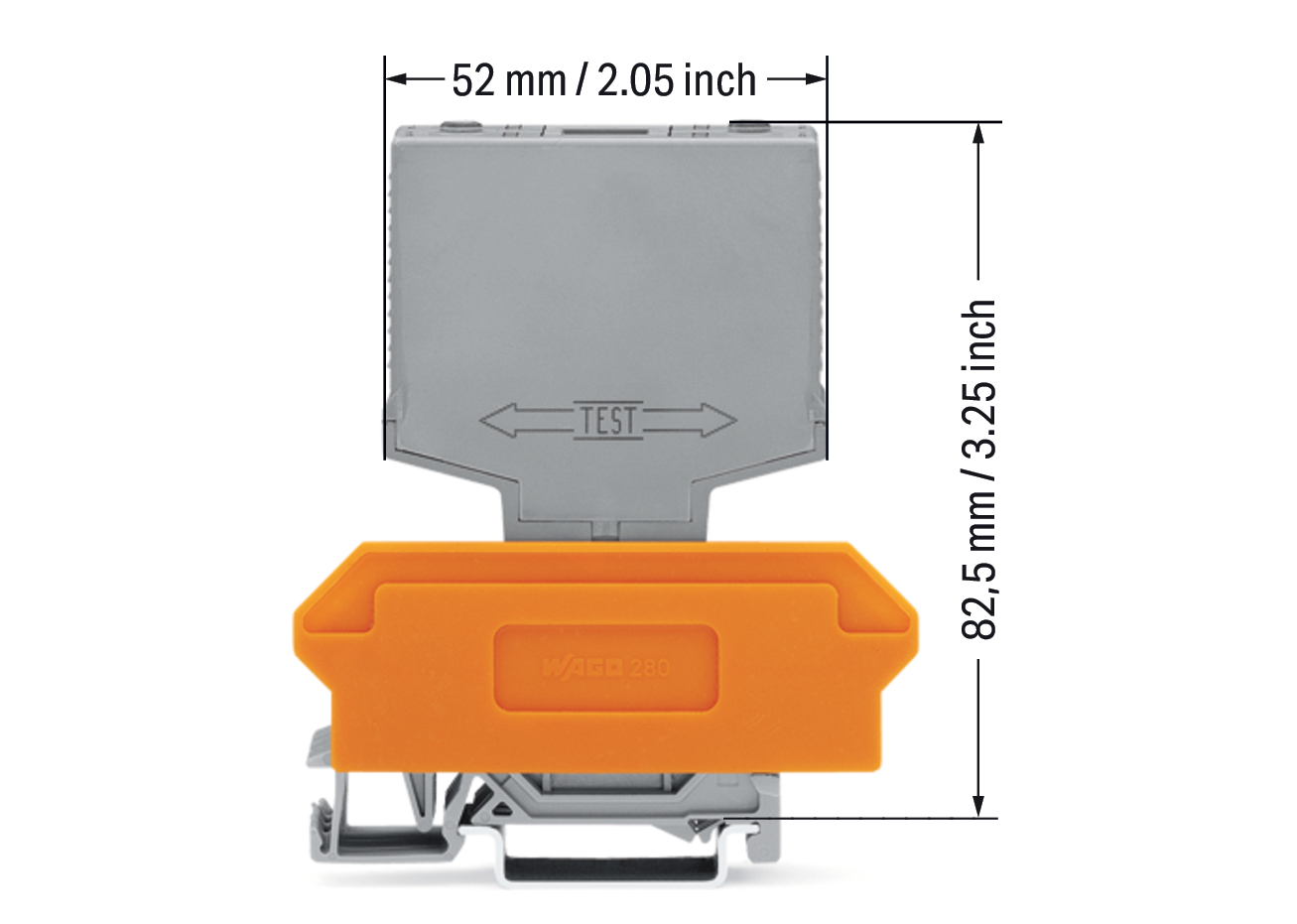

Width: | 20 mm |
Function DC-current hysteresis: | yes |
Depth: | 50 mm |
External current transformer: | no |
Height: | 70.2 mm |
Voltage type for actuating: | AC |
Single-phase under current possible: | yes |
Three-phase under current possible: | no |
Single-phase overcurrent possible: | yes |
Three-phase overcurrent possible: | no |
Contains function DC-voltage under current: | yes |
With detachable clamps: | no |
Number of contacts as normally open contact: | 0 |
Current measuring range: | 0.2 - 3 A |
Number of contacts as change-over contact: | 1 |
Number of contacts as normally closed contact: | 0 |
